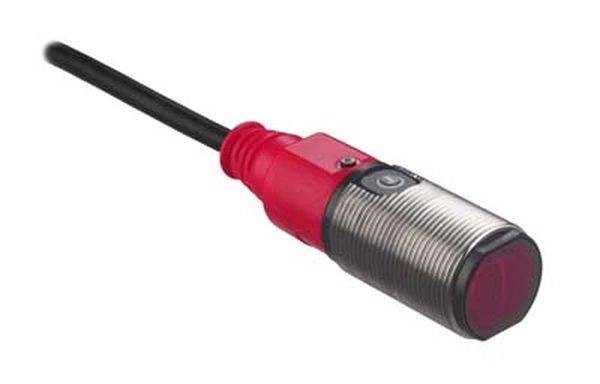

Leuze Electronic Photo sensor 50128197 50128197 Light-ON 1 pc(s)
Product type
Photo sensor
Functions
Light-ON
Type
50128197
Operating voltage
30 V DC
Response time
1 ms
EAN:
Part number:
Item no:
Technical specifications
- Product type
Photo sensor
- Type
50128197
- Functions
Light-ON
- Operating voltage
30 V DC
- Response time
1 ms
- Outputs
NPN
- Switching frequency
500 Hz
- Cable length
2.000 mm
- Size
M18
- Enclosure material
Stainless steel
- Transmitter type
LED IR
- Wavelength
850 nm
0.4 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
46 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 46 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-40-60 °C
FALSE
500 Hz
2
Radial plug
NPN
Other
10-30 V
Safety class 3
Teach-In
None
None
Infrared light
FALSE
FALSE
1 ms
FALSE
850 nm
Plastic
Polyurethane (PUR)
IP67
FALSE
FALSE
FALSE
FALSE
18 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
46 mm
FALSE
FALSE
Light switching
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981468 Leuze Electronic Photo sensor 50128197 50128197 Light-ON 1 pc(s)
Description
Border range, white 90%: 0.001 ... 0.4 m; Fixed set range: 0.4 m; light source: LED, infrared; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, NPN, light-switching; switching output 2: Transistor, NPN, dark switching; switching frequency: 500 Hz; connection: line, 2,000 mm, 4-wire; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 46 mm; material housing: stainless steel, plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50128197, please refer to its datasheet under 'downloadable documents'
