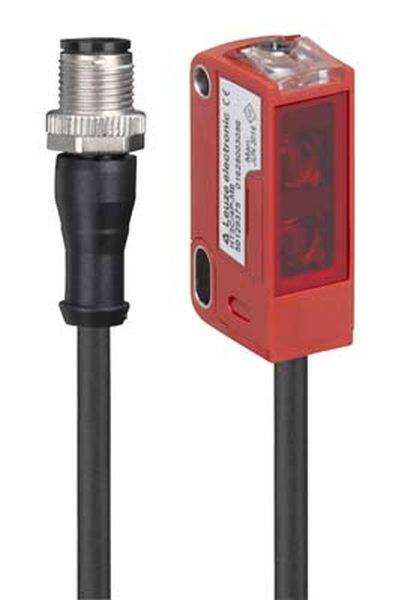

Leuze Electronic Photo sensor 50129381 50129381 Background suppression 1 pc(s)
EAN:
Part number:
Item no:
Product type
Photo sensor
Functions
Background suppression
Type
50129381
Response time
0.5 ms
Outputs
2x PNP Antivalent
Technical specifications
- Product type
Photo sensor
- Type
50129381
- Functions
Background suppression
- Response time
0.5 ms
- Outputs
2x PNP Antivalent
- Switching frequency
1000 Hz
- Cable length
200 mm
- Enclosure material
Plastic
- Transmitter type
LED red
- Wavelength
650 nm
0.2 m
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
18.3 mm
- Width
11.4 mm
- Height
34.2 mm
- Dim
(L x W x H) 18.3 x 11.4 x 34.2 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
15-200 mm
-40-60 °C
FALSE
1000 Hz
2
Connector M12
PNP
Other
10-30 V
Safety class 3
Manual adjustment
None
None
Cuboid
None
Polarity free red light
FALSE
FALSE
0.5 ms
FALSE
650 nm
Plastic
Polyurethane (PUR)
IP67
FALSE
FALSE
FALSE
FALSE
11.4 mm
34.2 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
18.3 mm
FALSE
FALSE
Light switching
Background fade-out
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983943 Leuze Electronic Photo sensor 50129381 50129381 Background suppression 1 pc(s)
Description
Application: Detection of small parts; special version: Small light spot (S); limit range: 0.005 ... 0.2 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,000 Hz; connection: line with round plug, 200 mm, M12, metal, 4-pin; Design housing: cubic; dimensions: 11.4 mm x 34.2 mm x 18.3 mm; material housing: plastic; controls: multi-speed spindle; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50129381, please refer to its datasheet under 'downloadable documents'
