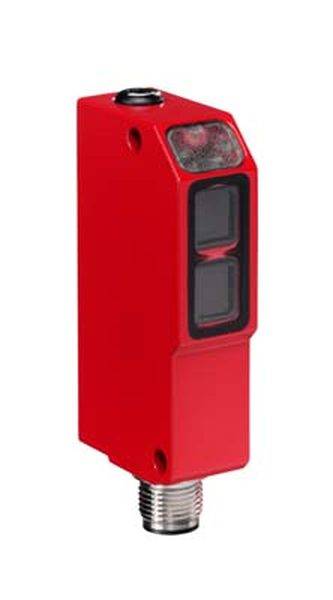

Leuze Electronic Retroreflective light barrier 50025609 50025609 Clear object detection 1 pc(s)
Product type
Retroreflective light barrier
Functions
Clear object detection
Type
50025609
Response time
0.5 ms
Contact type
Antivalent
EAN:
Part number:
Item no:
Technical specifications
- Product type
Retroreflective light barrier
- Type
50025609
- Functions
Clear object detection
- Response time
0.5 ms
- Contact type
Antivalent
- Outputs
PNP
- Switching frequency
1000 Hz
- Enclosure material
Metal
- Material properties
rust-proof
- Transmitter type
LED red
- Wavelength
660 nm
3 m
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
35 mm
- Width
17 mm
- Height
66 mm
- Depth
35 mm
- Dim
(L x W x H) 35 x 17 x 66 mm
- Content
1 pc(s)
DC
100 mA
Metal
FALSE
-25-60 °C
FALSE
1000 Hz
2
Connector M12
PNP/PNP
Anticoincidence
10-30 V
Safety class 2
Manual adjustment
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
0.5 ms
FALSE
660 nm
Glass
IP67
FALSE
FALSE
FALSE
FALSE
17 mm
66 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
35 mm
1800 mm
FALSE
FALSE
Light-/dark switching
1800 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982368 Leuze Electronic Retroreflective light barrier 50025609 50025609 Clear object detection 1 pc(s)
Description
Application: Detection of highly transparent bottles, detection of highly transparent films and glass panes; special version: Auto collimation; limit range: 0 ... 3 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,000 Hz; connection: round plug, M12, Stainless steel, 4-pole; design: cubic; dimensions: 17 mm x 66 mm x 35 mm; material housing: metal; control elements: multi-turn potentiometer; ambient temperature operation: -25 ... 60 °C; protection class IP 67
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50025609, please refer to its datasheet under 'downloadable documents'
