Name: Leuze Electronic Retroreflective light barrier 50116856 50116856 Light-ON 1 pc(s)
Brand: Leuze Electronic
SKU: 2982625

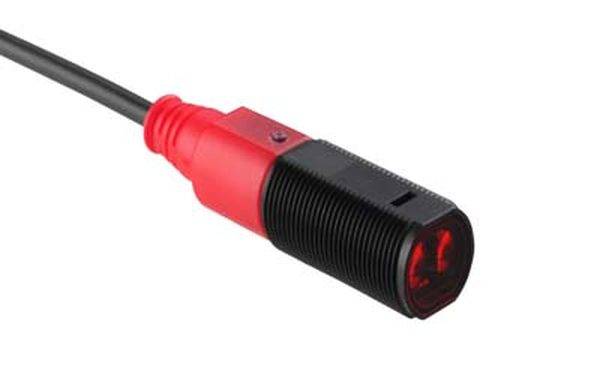

A cylindrical sensor with a red and black housing, connected to a cable. The sensor has a red illuminated indicator.

Product type

Retroreflective light barrier

Functions

Light-ON

Type

50116856

Operating voltage

30 V DC

Response time

1 ms

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50116856

Functions: Light-ON

Operating voltage: 30 V DC

Response time: 1 ms

Outputs: NPN

Switching frequency: 500 Hz

Cable length: 2.000 mm

Size: M18

Enclosure material: Plastic

Transmitter type: Red light, unpolarised

Wavelength: 620 nm

: 4500 mm

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 46 mm

(Ø): 18 mm

Dim: (Ø x L) 18 mm x 46 mm

Content: 1 pc(s)

: DC

: 100 mA

: Plastic

: FALSE

: -40-60 °C

: FALSE

: 500 Hz

: 2

: Cable

: NPN

: Other

: 10-30 V

: Safety class 3

: None

: None

: Cylinder, screw-thread

: None

: Polarized red light

: 20 mm

: FALSE

: FALSE

: 1 ms

: FALSE

: 620 nm

: Plastic

: IP67

: FALSE

: FALSE

: FALSE

: FALSE

: 18 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 46 mm

: 4500 mm

: FALSE

: FALSE

: Light switching

: 4500 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982625 Leuze Electronic Retroreflective light barrier 50116856 50116856 Light-ON 1 pc(s)

Description

Limit range: 0.02 ... 6 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, NPN, light-switching; switching output 2: Transistor, NPN, dark switching; switching frequency: 500 Hz; connection: line, 2,000 mm, 4-wire; design housing: cylindrical; thread size: M18; dimensions: 18 mm x 46 mm; material housing: plastic; ambient temperature operation: -40 ... 60 °C; protection class IP 67

This text is machine translated.
