Name: Leuze Electronic Retroreflective light barrier 50117924 50117924 Polarised retroreflective 1 pc(s)
Brand: Leuze Electronic
SKU: 2982388

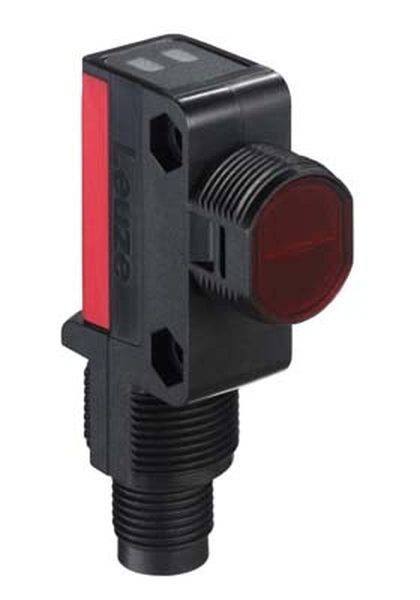

A rectangular, black sensor with red elements and a side threaded connection. Used in automation technology.

Product type

Retroreflective light barrier

Functions

Polarised retroreflective

Type

50117924

Response time

1 ms

Outputs

PNP

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50117924

Functions: Polarised retroreflective

Response time: 1 ms

Outputs: PNP

Switching frequency: 500 Hz

Size: M18

Enclosure material: Plastic

Transmitter type: Red light, polarised

Wavelength: 620 nm

: 6 m

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 15 mm

Width: 15 mm

Height: 46.5 mm

Depth: 31.8 mm

Dim: (L x W x H) 15 x 15 x 46.5 mm

Content: 1 pc(s)

: DC

: 100 mA

: Plastic

: FALSE

: -40-60 °C

: FALSE

: 500 Hz

: 2

: Connector M12

: PNP/PNP

: Anticoincidence

: 10-30 V

: Safety class 3

: None

: None

: Cuboid

: None

: Polarized red light

: 20 mm

: FALSE

: FALSE

: 1 ms

: FALSE

: 620 nm

: Plastic

: IP67

: FALSE

: FALSE

: FALSE

: FALSE

: 15 mm

: 46.5 mm

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 31.8 mm

: 4500 mm

: FALSE

: FALSE

: Light-/dark switching

: 4500 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982388 Leuze Electronic Retroreflective light barrier 50117924 50117924 Polarised retroreflective 1 pc(s)

Description

Limit range: 0.02 ... 6 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 500 Hz; connection: round plug, M12, Plastic, 4-pin; design housing: cubic; dimensions: 15 mm x 46.5 mm x 31.8 mm; thread size: M18; material housing: plastic; ambient temperature operation: -40 ... 60 °C; protection class IP 67
