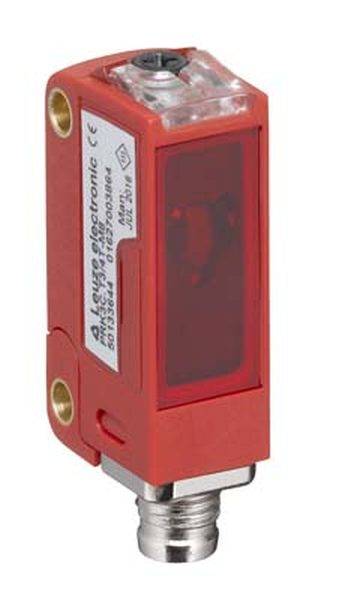

Leuze Electronic Retroreflective light barrier 50133664 50133664 Teach-in 1 pc(s)
Product type
Retroreflective light barrier
Functions
Teach-in
Type
50133664
Response time
0.33 ms
Outputs
PNP
EAN:
Part number:
Item no:
Technical specifications
- Product type
Retroreflective light barrier
- Type
50133664
- Functions
Teach-in
- Response time
0.33 ms
- Outputs
PNP
- Switching frequency
1500 Hz
- Enclosure material
Plastic
- Transmitter type
LED red
- Wavelength
635 nm
3000 mm
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
18.3 mm
- Width
11.4 mm
- Height
34.2 mm
- Depth
18.3 mm
- Dim
(L x W x H) 18.3 x 11.4 x 34.2 mm
- Content
1 pc(s)
DC
100 mA
Plastic
FALSE
-40-60 °C
FALSE
1500 Hz
2
Connector M8
PNP
Other
10-30 V
Safety class 3
Teach-In
None
None
Cuboid
None
Polarized red light
0 mm
FALSE
FALSE
0.33 ms
FALSE
635 nm
Plastic
IP67
FALSE
FALSE
FALSE
FALSE
11.4 mm
34.2 mm
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
18.3 mm
3000 mm
FALSE
FALSE
Light switching
3000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982805 Leuze Electronic Retroreflective light barrier 50133664 50133664 Teach-in 1 pc(s)
Description
Application: Detection of highly transparent bottles, detection of transparent films; special version: Auto collimation; limit range: 0 ... 3.6 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,500 Hz; connection: round plug, M8, Metal, 4-pole; design: cubic; dimensions: 11.4 mm x 34.2 mm x 18.3 mm; material housing: plastic; operating elements: teach-button; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50133664, please refer to its datasheet under 'downloadable documents'
