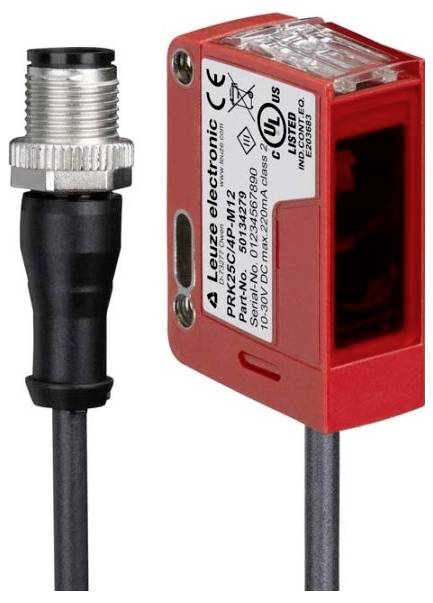

Leuze Electronic Retroreflective light barrier 50134282 50134282 Light-ON 1 pc(s)
Product type
Retroreflective light barrier
Functions
Light-ON
Max. operating voltage
30 V DC
Connector
M12 connector
Type
50134282
Part number:
Item no:
Technical specifications
- Product type
Retroreflective light barrier
- Type
50134282
- Functions
Light-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
0.33 ms
- Outputs
PNP
- Switching frequency
1500 Hz
- Connector
M12 connector
- Enclosure material
Plastic
- Transmitter type
Red light, unpolarised
- Wavelength
640 nm
IP67
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
30 mm
- Width
15 mm
- Height
42.7 mm
- Dim
(L x W x H) 30 x 15 x 42.7 mm
- Content
1 pc(s)
- Type
Ashlar
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819402 Leuze Electronic Retroreflective light barrier 50134282 50134282 Light-ON 1 pc(s)
Description
Limit range: 0.05 ... 12 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, light-switching; switching output 2: Transistor, PNP, dark switching; switching frequency: 1,500 Hz; connection: line with round plug, 200 mm, M12, PUR, 4-pin; Design housing: cubic; dimensions: 15 mm x 42.7 mm x 30 mm; material housing: plastic; ambient temperature operation: -40 ... 60 °C; PROTECTION CLASS IP 67, IP 69K
This text is machine translated.
This text is machine translated.
Hints
For more information on this 50134282, please refer to its datasheet under 'downloadable documents'
