Name: Leuze Electronic Retroreflective light barrier 50145246 50145246 1 pc(s)
Brand: Leuze Electronic
SKU: 3819369

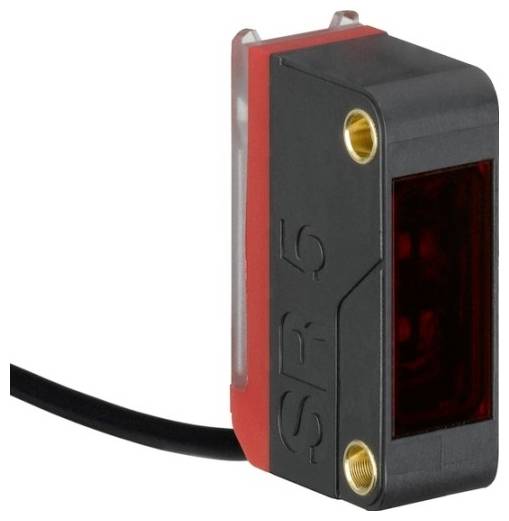

Black and red rectangular photoelectric sensor with a cable and two mounting holes on a white background.

Product type

Retroreflective light barrier

Max. operating voltage

30 V DC

Connector

Cable

Type

50145246

Min. operating voltage

10 V DC

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: 50145246

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 1 ms

Outputs: NPN

Switching frequency: 500 Hz

Connector: Cable

Enclosure material: Plastic

Transmitter type: Red light, unpolarised

Wavelength: 645 nm

: IP67

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 20 mm

Width: 11 mm

Height: 32.4 mm

Dim: (L x W x H) 20 x 11 x 32.4 mm

Content: 1 pc(s)

Type: Ashlar

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3819369 Leuze Electronic Retroreflective light barrier 50145246 50145246 1 pc(s)

Description

Limit range: 0.02 ... 6.5 m; light source: LED, red; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, NPN, light-switching (dark-switching by reverse polarity of UB); switching frequency: 500 Hz; connection: Wire, 2,000 mm, 3 -wire; Design housing: cubic; dimensions: 11 mm x 32.4 mm x 20 mm; material housing: plastic; ambient temperature operation: -40 ... 60 °C; protection class IP 67
