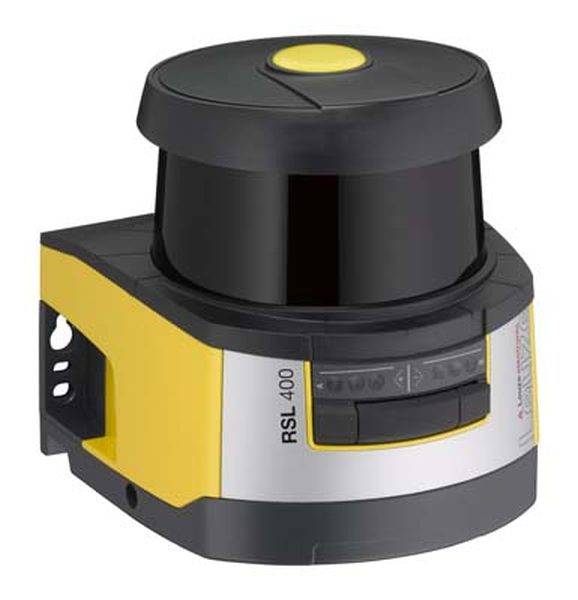

Leuze Electronic Safety laser scanner 53800221 Range (max.) 3 m 24 V DC
Product type
Safety laser scanner
Type
53800221
Operating voltage
24 V DC
Cable length
5.000 mm
Range (min.)
0 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety laser scanner
- Type
53800221
- Operating voltage
24 V DC
- Cable length
5.000 mm
- Range (min.)
0 m
- Range (max.)
3 m
- Outputs
PNP
- Performance level
PL d
- Safety integrity level
SIL 2
- Safety rating
3
- Content
1 pc(s)
DC
TRUE
0-50 °C
0.09 Hz
2
4
PNP
Cable
Safety class 3
TRUE
Class 1
FALSE
FALSE
50 m
0 m
0 m
20.8 V
3
TRUE
905 nm
140 mm
149 mm
140 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982681 Leuze Electronic Safety laser scanner 53800221 Range (max.) 3 m 24 V DC
Description
Type: 3, IEC/EN 61496; SIL: 2, IEC 61508; Performance Level (PL): D, EN ISO 13849-1; Angle range: 270 °; Number of field pairs, switchable: 10 + 10; Number of protection functions: 2 pcs; Range: 0 ... 3 m; Range of warning field: 0 ... 20 m; supply voltage: 24 V, DC, -30 ... 20%; safety switching outputs (OSSDs): 4 pc., transistor, PNP; connection 1: Line, 29 -wire, 5,000 mm, PVC; port 2: round plug, M12, 4 -pin; Dimensions 140 mm x 149 mm x 140 mm
