Name: Leuze Electronic Safety sensor 66900013 66900013 Retroreflective 1 pc(s)
Brand: Leuze Electronic
SKU: 2982632

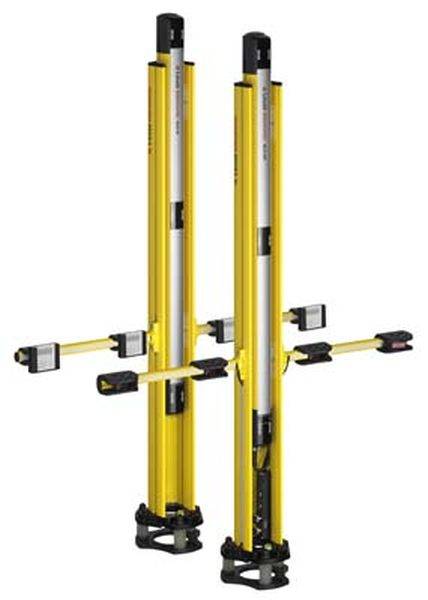

Two yellow laser surveying devices for construction measurement, standing upright, with adjustable measuring arms and markings for precision measurements.

Product type

Safety sensor

Functions

Retroreflective

Connector

M12 connector

Type

66900013

Max. range

6 m

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Safety sensor

Type: 66900013

Functions: Retroreflective

Connector: M12 connector

: 6 m

Height: 1.600 mm

Content: 1 pc(s)

Smallest detectable object size (diameter): 400 mm

: Transmitter and receiver separated

: DC

: FALSE

: 3

: Connector M12

: None

: None

: FALSE

: TRUE

: TRUE

: FALSE

: 6 m

: 4

: 400 mm

: FALSE

: FALSE

: FALSE

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982632 Leuze Electronic Safety sensor 66900013 66900013 Retroreflective 1 pc(s)

Description

Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): E, EN ISO 13849-1; Range: 0.5 ... 6 m; number of beams: 3 pcs.; beam distance: 400 mm; muting sensors: 4 pcs., reflective light barriers PRK 25B; column height without base: 1,600 mm; special design: Integrated muting indicator light
