Name: Leuze Electronic Safety sensor 66900021 66900021 1 pc(s)
Brand: Leuze Electronic
SKU: 2982631

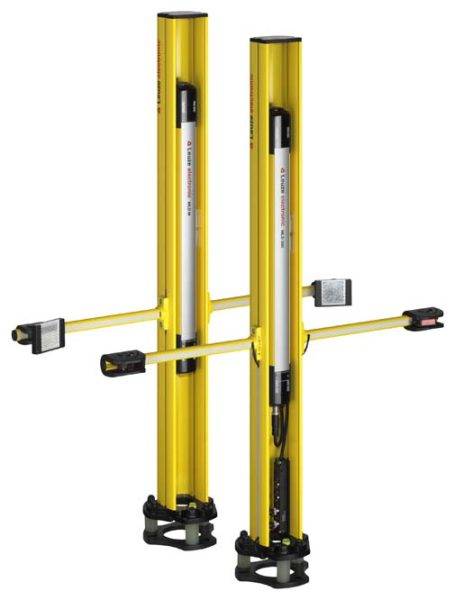

Two yellow, vertical safety light curtains with sensors used for industrial safety applications.

Image similar

Product type

Safety sensor

Connector

M12 connector

Type

66900021

Max. range

8 m

Height

1.300 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Safety sensor

Type: 66900021

Connector: M12 connector

: 8 m

Height: 1.300 mm

Content: 1 pc(s)

Smallest detectable object size (diameter): 500 mm

: Transmitter and receiver separated

: DC

: FALSE

: 2

: Connector M12

: None

: None

: FALSE

: TRUE

: TRUE

: FALSE

: 8 m

: 4

: 500 mm

: FALSE

: FALSE

: FALSE

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2982631 Leuze Electronic Safety sensor 66900021 66900021 1 pc(s)

Description

Type: 4, IEC/EN 61496; SIL: 3, IEC 61508; Performance Level (PL): E, EN ISO 13849-1; Range: 0 ... 8 m; number of beams: 2 pcs.; beam distance: 500 mm; muting sensors: 2 pcs., reflective light barriers PRK 25B; column height without base: 1,300 mm; special design: Integrated muting indicator light

This text is machine translated.
