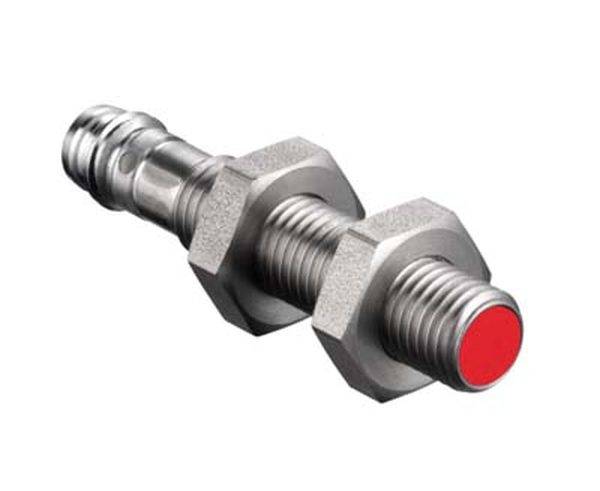

Leuze Electronic Sensor Inductive 50109654 50109654 M8 shielded (Ø x L) 8 mm x 45 mm
EAN:
Part number:
Item no:
Product type
Sensor
Contact type
1 breaker
Switching distance (max.)
2 mm
Model
Inductive
Length
45 mm
Technical specifications
- Product type
Sensor
- Type
50109654
- Contact type
1 breaker
- Switching distance (max.)
2 mm
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M8
- Length
45 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 45 mm
- Content
1 pc(s)
- Switching frequency
5.000 Hz
DC
FALSE
Metal
FALSE
Other
5000 Hz
1.6 mm
1
None
Connector M8
PNP
Breaker contact
10-30 V
None
None
Cylinder, screw-thread
Concise
FALSE
10-30 V
Other
None
FALSE
8 mm
45 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981284 Leuze Electronic Sensor Inductive 50109654 50109654 M8 shielded (Ø x L) 8 mm x 45 mm
Description
Type. Limit range Sn: 2 mm; Operating range Sa: 0 ... 1.6 mm; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, NC (NC); switching frequency: 5,000 Hz; Connection: round plug, M8, 3 -pin; housing design: cylindrical; thread size: M8; Dimensions: 8 mm x 45 mm; installation type: flush; material housing: stainless steel; approvals: c UL US
