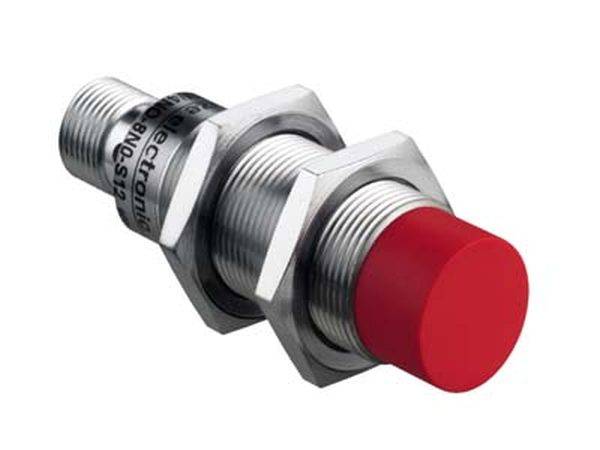

Leuze Electronic Sensor Inductive 50129361 50129361 M18 non-shielded (Ø x L) 18 mm x 63.5 mm
Product type
Sensor
Contact type
1 breaker
Switching distance (max.)
8 mm
Model
Inductive
Length
63.5 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
50129361
- Contact type
1 breaker
- Switching distance (max.)
8 mm
- Enclosure material
Metal
- Model
Inductive
- Installation type
non-shielded
- Size
M18
- Length
63.5 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 63.5 mm
- Content
1 pc(s)
- Switching frequency
2.000 Hz
DC
FALSE
Metal
FALSE
Other
2000 Hz
6.4 mm
1
None
Connector M12
PNP
Breaker contact
10-30 V
None
None
Cylinder, screw-thread
Not flat
FALSE
10-30 V
Other
None
FALSE
18 mm
63.5 mm
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981503 Leuze Electronic Sensor Inductive 50129361 50129361 M18 non-shielded (Ø x L) 18 mm x 63.5 mm
Description
Type. Limit range Sn: 8 mm; Operating range Sa: 0 ... 6.4 mm; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, NC (NC); switching frequency: 2,000 Hz; Connection: round plug, M12, 4-pin; housing design: cylindrical; thread size: M18; Dimensions: 18 mm x 63.5 mm; type of installation: not flush; material housing: metal; approvals: c UL US
