LINDY LINDY HDMI 2.0 18G UHD/HDR Repeater Ext. HDMI extender via data cable 10 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

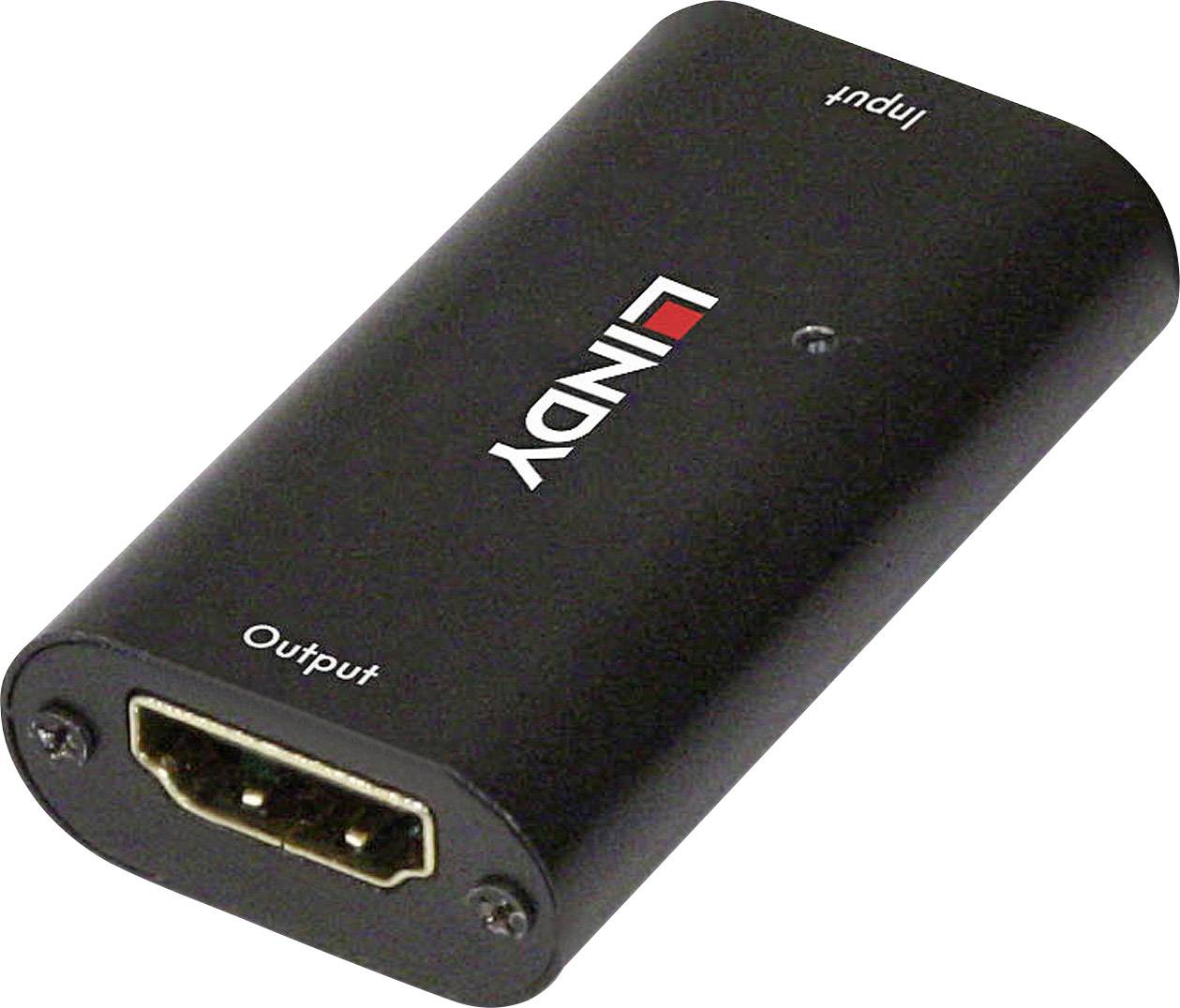

LINDY LINDY HDMI 2.0 18G UHD/HDR Repeater Ext. HDMI extender via data cable 10 m
- Extends Ultra HD 4K signals with highest HDMI 2.0 resolutions up to 4K via HDMI cable
Technical specifications
- Product type
HDMI extender
- Transfer type
via data cable
- Resolution (max.)
3840 x 2160 p
- Range (max.)
10 m
- Factory colour
Black
- Weight
0.03 kg
- Version
Cable
- Cable use
PC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1847288 LINDY LINDY HDMI 2.0 18G UHD/HDR Repeater Ext. HDMI extender via data cable 10 m
User & Safety Instructions
User & Safety Instructions 1847288 LINDY LINDY HDMI 2.0 18G UHD/HDR Repeater Ext. HDMI extender via data cable 10 m
Warranty Terms
Warranty Terms 1847288 LINDY LINDY HDMI 2.0 18G UHD/HDR Repeater Ext. HDMI extender via data cable 10 m
Description
Extends 4K UHD HDMI 2.0 signal paths - connects two HDMI cables together, In order to achieve longer transmission distances supports highest HDMI 2.0 Ultra HD resolutions up to 4 K UHD 60 Hz with YUV 4:4:4 8 bit as well as 1080p 3D supports HDR and HDCP 2.2/1.4Power supply from the HDMI devices of this repeater/extender also supports the highest HDMI 2.0 data rates up to 18 GBit/s. It is connected between two high-quality Lindy GOLD HDMI cables and supports the following cable lengths / data rates / resolutions: 18GBit/s, 4K resolutions: 60Hz 4:4:4 8 bit / 60Hz 4:2:2 12 bit: 10m in & 10m Out13.4 GBit/s, 4K resolutions: 60Hz 4:2:0 12 bit / 30Hz 4:4 12 bit: 15m in & 10m out8.9GBit/s, 4K resolutions: 60Hz 4:2:0 8 Bit, 30Hz 4:4:4 8 Bit / 4:2:2 12 Bit: 20m in & 20m Out Delivery scope HDMI 2.0 18G UHD HDR RepeaterManual multilingual
