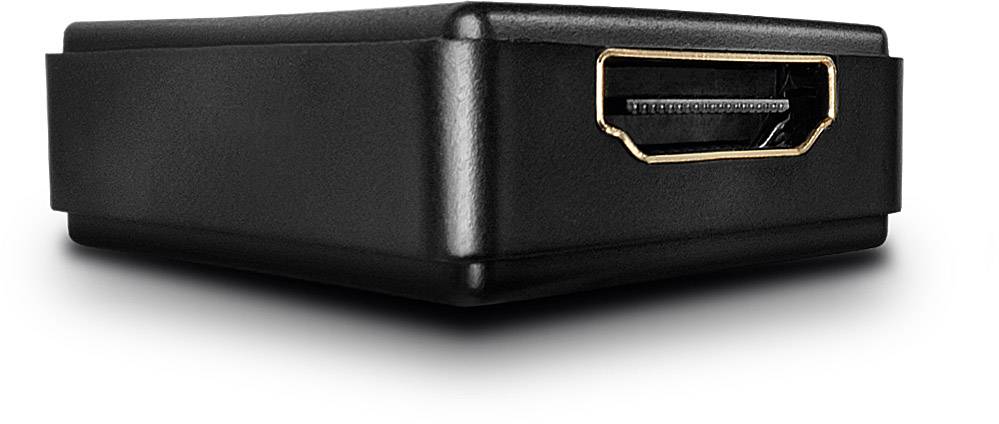

LINDY LINDY HDMI Extender/Repeater HDMI® input HDMI extender via data cable 30 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Lindy 50m HDMI 2.0 10.2G repeater
- Extends HDMI signals with resolutions up to 1080p over distances up to 50m and UHD 4K30 resolutions up to 35m via HDMI SLD cable
Technical specifications
- Product type
HDMI extender
- Transfer type
via data cable
- Interfaces (input)
HDMI® input
- Interfaces (output)
HDMI® output
- Features
built-in amplifier
- Resolution (max.)
3840 x 2160 p
- Range (max.)
30 m
- Factory colour
Black
- Length
2.7 cm
- Width
5 cm
- Height
1.5 cm
- Dim
(L x W x H) 2.7 x 5 x 1.5 cm
- No. of outputs
1 x
- No. of inputs
1 x
- Version
Cable
- Cable use
Networks
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1836761 LINDY LINDY HDMI Extender/Repeater HDMI® input HDMI extender via data cable 30 m
User & Safety Instructions
User & Safety Instructions 1836761 LINDY LINDY HDMI Extender/Repeater HDMI® input HDMI extender via data cable 30 m
Warranty Terms
Warranty Terms 1836761 LINDY LINDY HDMI Extender/Repeater HDMI® input HDMI extender via data cable 30 m
Description
ideal for use with home theater, set-top boxes, satellite receivers, Blu-ray and DVD players, computers, HDTVs, projectors etc. * supports HDTV / HDMI with HDCP 1.4 to 4K @ 30Hz, 12 bit (4:2:2) BT.2020 HDR10@24Hz Blu-ray UHDSupports resolutions up to 1080p for cable lengths up to 30m at the input + 20m at the output * when using Lindy HDMI SLD or GOLD KabelsSupports UHD 4K @30Hz for cable lengths up to 20m at the input + 15m at the output * when using Lindy HDMI SLD Cables * Note: The power is supplied via the HDMI connection of the signal source. There are some HDMI sources that do not provide enough power via their HDMI output. In such a case, the attainable cable lengths are strongly limited; in such a case, use our HDMI power supply adapter No. 41080.
