Littelfuse IXFP36N60X3 MOSFET Power MOSFET 446 W TO 220 Tube

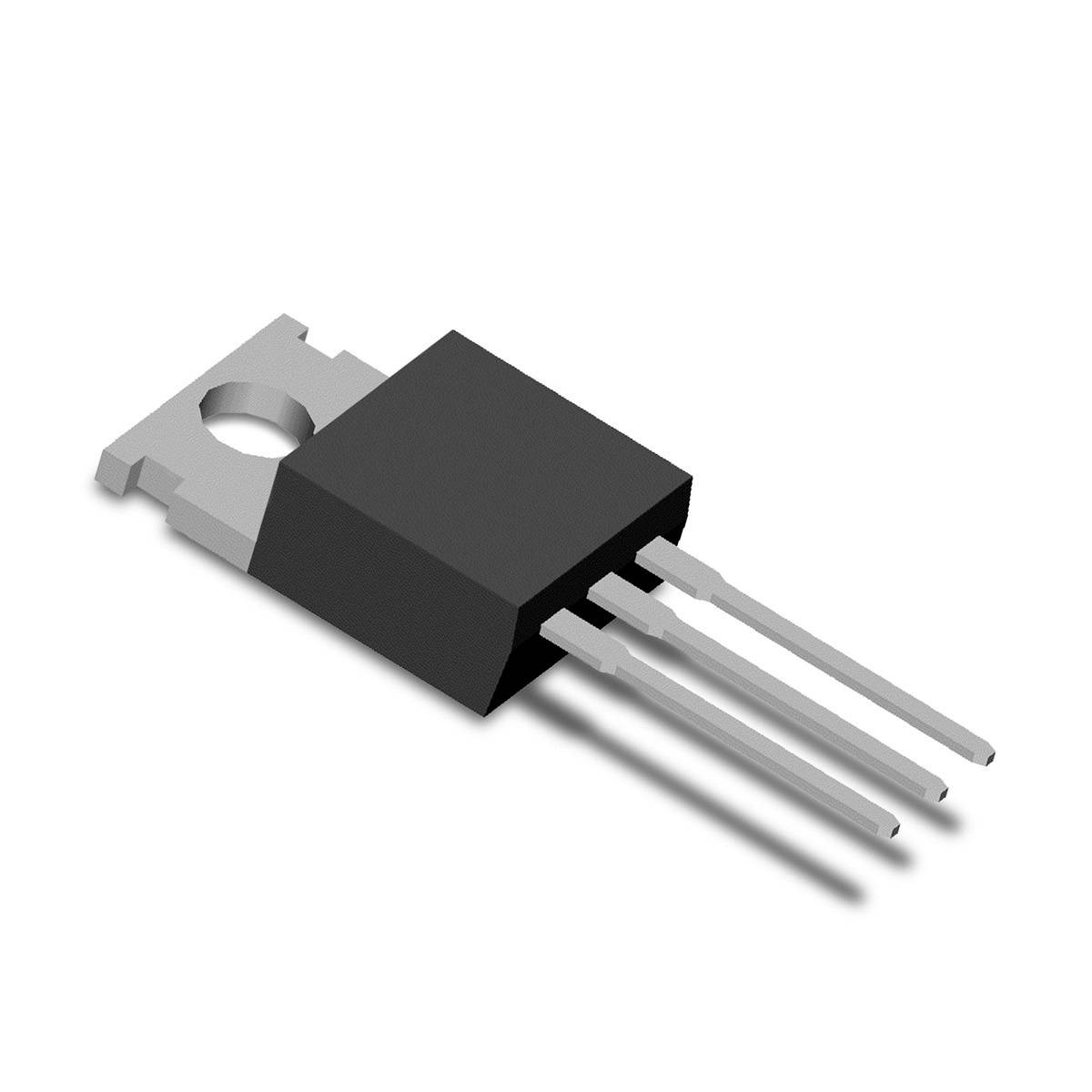

A black transistor in a TO-220 package with three metal legs facing right. Suitable for electronic circuits.
Packaging type
Tube
Product type
MOSFET
Enclosure
TO 220
Type
Power MOSFET
Power (max) P(TOT)
446 W
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Package type TO-220
  • Thermal resistance (junction-case) (K/W): 0.28 K/W.
  • Drain source voltage (V) 600 V
  • Maximum On-Resistance @ 25 ℃ (ohms): 0.09 Ω
  • Continuous drain current @ 25 ℃ (A): 36 A.
  • Gate charge (NC) 29 NC
  • Input capacitance, CISS (pF) 2030 pF
  • Power dissipation (W) 446 W
  • Typical Reverse Recovery Time (ns): 180 ns
  • TJ MAX (°C) 150 °C
  • Reverse Transfer Capacity, CRSS (pF): 3.6 pF
Packaging type

Tube

Type

IXFP36N60X3

Product type

MOSFET

Enclosure

TO 220

Manufacturer

Littelfuse

Manuf. code

LIT

Type

Power MOSFET

I(d)

36 A

UBR DSS

600 V

Power (max) P(TOT)

446 W

Q(G)

29 nC

C(ISS)

2030 pF

Mounting type

Through-hole mounting

Operating temperature (max.)

150 °C

U(DSS)

600 V

Content

1 pc(s)
