Littelfuse IXTA160N075T MOSFET Single 360 W TO 263 Tube

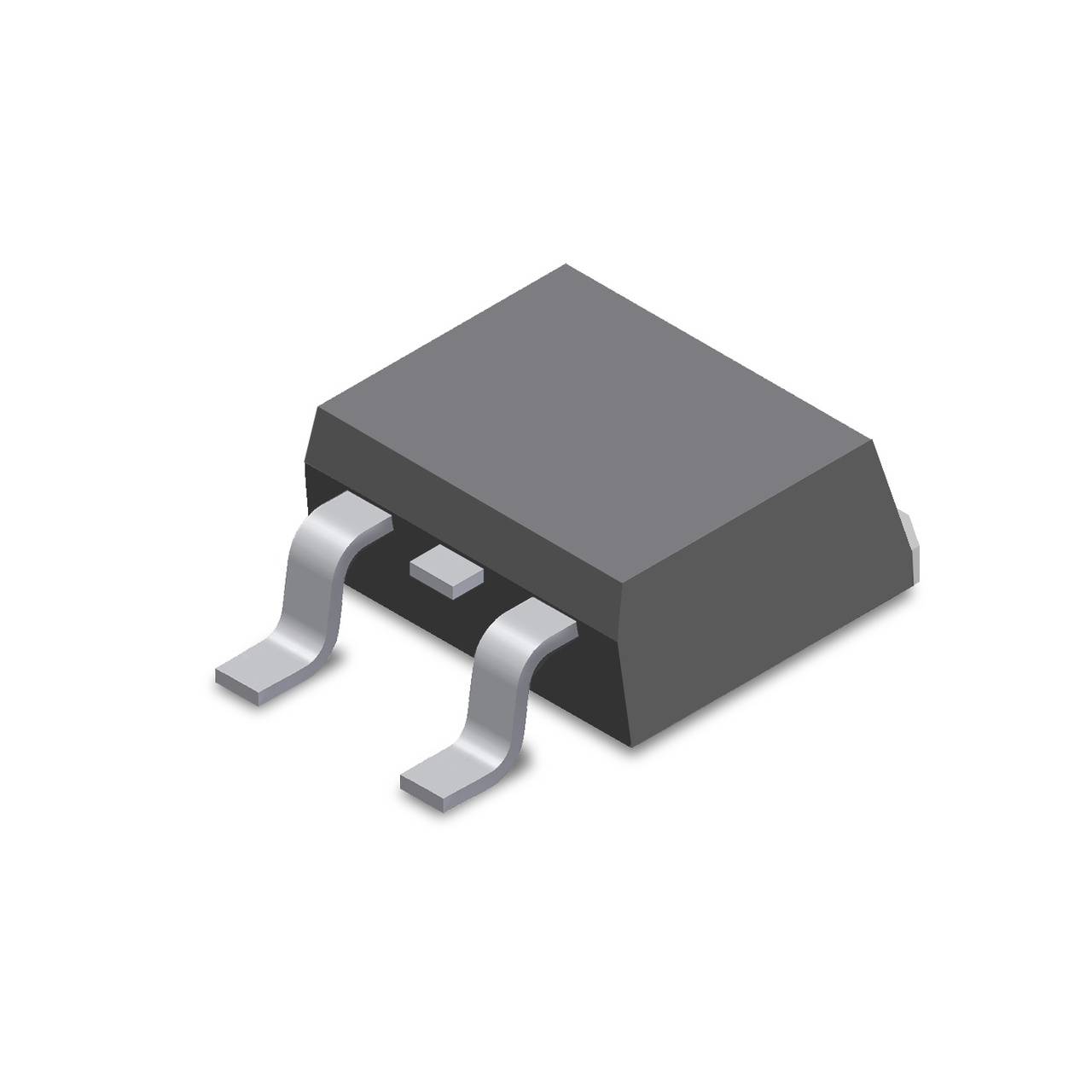

An electronic component that looks like a transistor or voltage sensor, with two curved connecting wires and a black casing.
Packaging type
Tube
Product type
MOSFET
Enclosure
TO 263
Type
Single
Power (max) P(TOT)
360 W
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Package type TO-263
  • Configuration: Single
  • Thermal resistance (junction-case) (K/W): 0.42 K/W.
  • Drain source voltage (V) 75 V
  • Maximum On-Resistance @ 25 ℃ (ohms): 0,006 Ω
  • Continuous drain current @ 25 ℃ (A): 160 A.
  • Gate charge (NC) 112 NC
  • Input capacitance, CISS (pF) 4950 pF
  • Power dissipation (W) 360 W
  • Typical Reverse Recovery Time (ns): 80 ns
Packaging type

Tube

Type

IXTA160N075T

Product type

MOSFET

Enclosure

TO 263

Manufacturer

Littelfuse

Manuf. code

LIT

Type

Single

I(d)

160 A

UBR DSS

75 V

Power (max) P(TOT)

360 W

Q(G)

112 nC

C(ISS)

4950 pF

U(DSS)

75 V

Content

1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2966971 Littelfuse IXTA160N075T MOSFET Single 360 W TO 263 Tube
