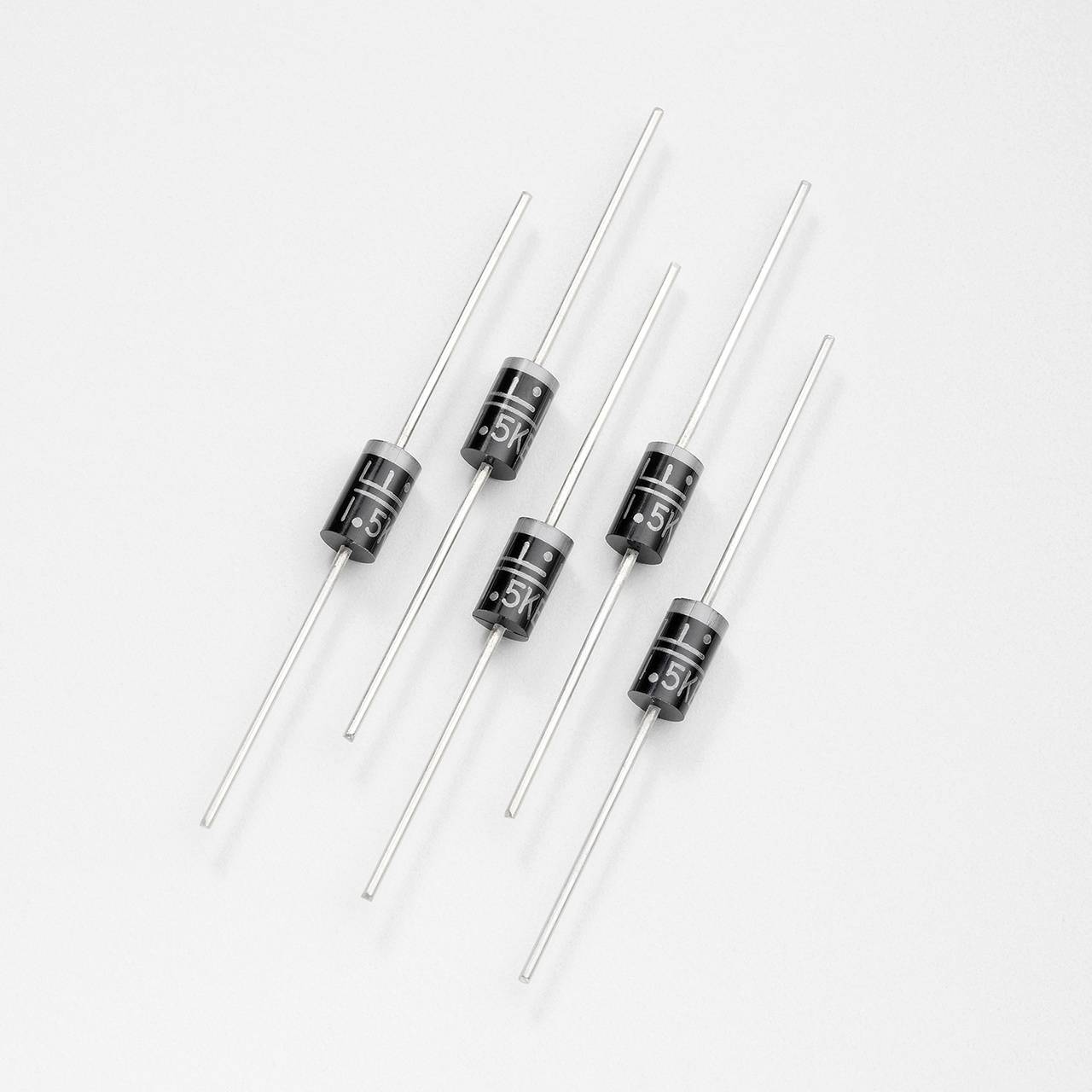

Littelfuse TVS diode 1.5KE440A DO 201 462 V 1500 W Package
Packaging type
Package
Product type
TVS diode
Enclosure
DO 201
Reverse voltage U(R)
376 V
Terminal voltage U(CL)
602 V
EAN:
Part number:
Item no:
Technical specifications
- Max Clamp Voltage (Vc) (V) 602 V
- Reverse Standby Voltage (VR) (VSO) 376 V
- Watts (W) 1500 W
- Peak Pulse Current (IPP) 10x1000 (A) 2.5 A
- Breakdown voltage (MIN VBR@IT) (V): 418 V
- Breaking-down Voltage (VBR@IT) (V): 462 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 175 °C
- Polarity unipolar
- DO-201 package
- Packaging type
Package
- Type
1.5KE440A
- Product type
TVS diode
- Enclosure
DO 201
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
376 V
- Breakdown voltage U(BR)
462 V
- Terminal voltage U(CL)
602 V
- Peak current I(pp)
2.5 A
- Power (max) P(TOT)
1500 W
- Polarity
Unipolar
- Power line protection
Yes
- Operating temperature (max.)
175 °C
