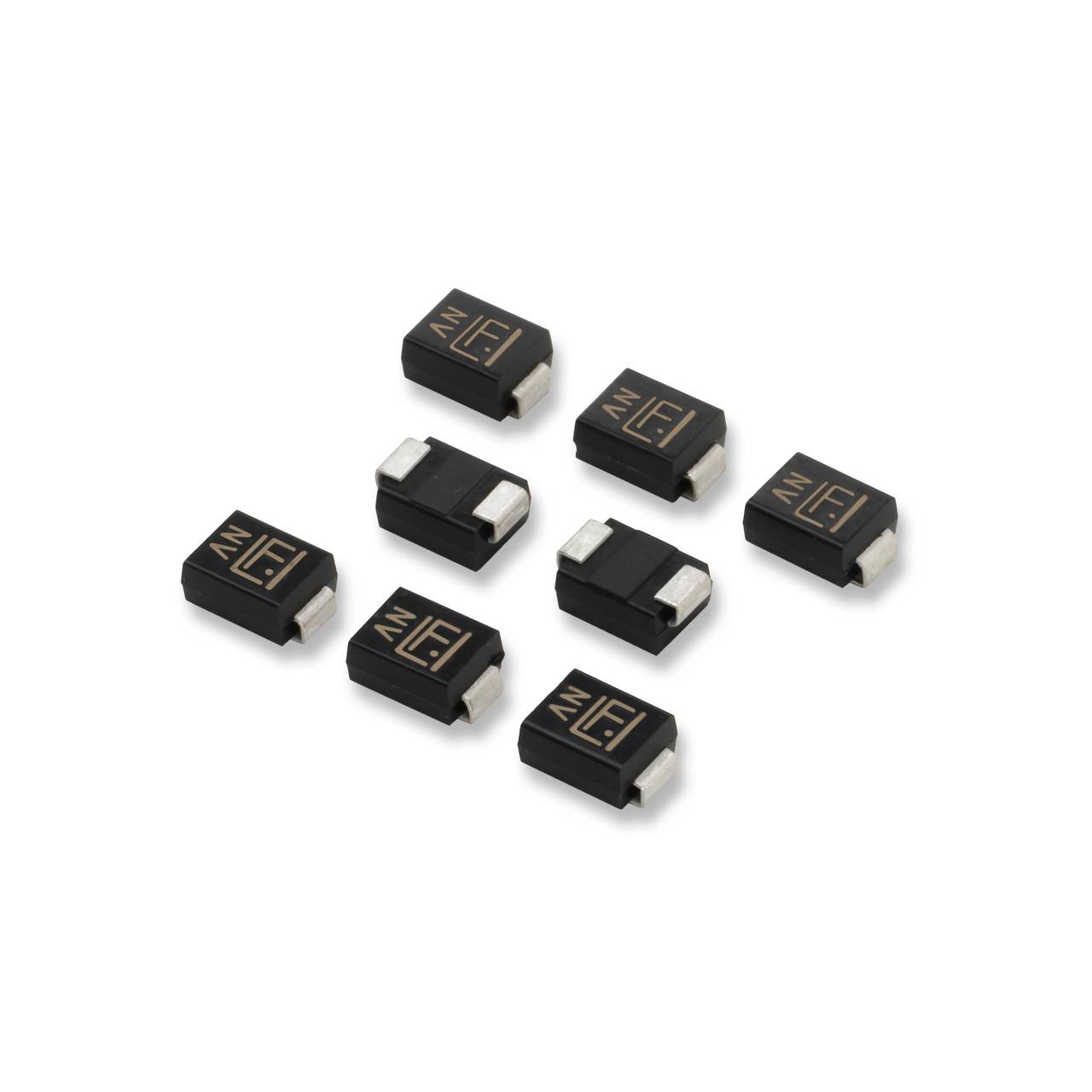

Littelfuse TVS diode SMBJ16A DO 214AA 19.7 V 600 W Tape on Full reel
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
DO 214AA
Reverse voltage U(R)
16 V
Terminal voltage U(CL)
26 V
EAN:
Part number:
Item no:
Technical specifications
- Max Clamp Voltage (Vc) (V) 26 V
- Reverse Standby Voltage (VR) (VSO) 16 V
- Watts (W) 600 W
- Peak Pulse Current (IPP) 10x1000 (A) 23.1 A
- Breakdown voltage (MIN VBR@IT) (V): 17.8 V
- Breaking-down Voltage (VBR@IT) (V): 19.7 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 150 °C
- Polarity unipolar
- Package DO-214AA
- Packaging type
Tape on Full reel
- Type
SMBJ16A
- Product type
TVS diode
- Enclosure
DO 214AA
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
16 V
- Breakdown voltage U(BR)
19.7 V
- Terminal voltage U(CL)
26 V
- Peak current I(pp)
23.1 A
- Power (max) P(TOT)
600 W
- Polarity
Unipolar
- Power line protection
Yes
- Mounting type
Surface-mount
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2962643 Littelfuse TVS diode SMBJ16A DO 214AA 19.7 V 600 W Tape on Full reel
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
-42%
€ 1.09
€ 0.63*
