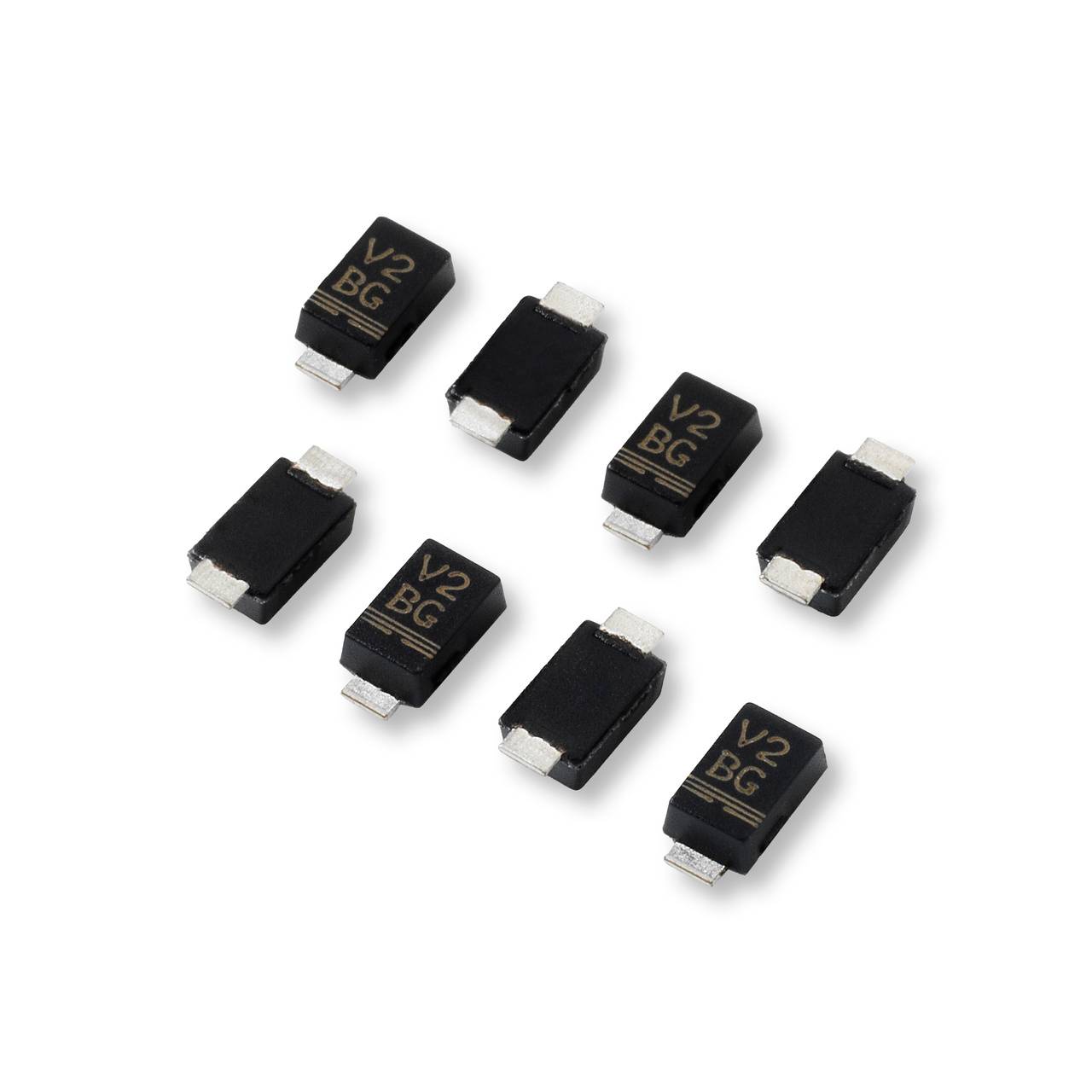

Littelfuse TVS diode SMF15A SOD 123FL 18.5 V 200 W Tape on Full reel
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
SOD 123FL
Reverse voltage U(R)
15 V
Terminal voltage U(CL)
24.4 V
EAN:
Part number:
Item no:
Technical specifications
- Max Clamp Voltage (Vc) (V) 24.4 V
- Reverse Standby Voltage (VR) (VSO) 15 V
- Watts (W) 200 W
- Peak Pulse Current (IPP) 10x1000 (A) 8.2 A
- Breakdown voltage (MIN VBR@IT) (V): 16.7 V
- Breaking-down Voltage (VBR@IT) (V): 18.5 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 150 °C
- Polarity unipolar
- Package SOD 123FL
- Packaging type
Tape on Full reel
- Type
SMF15A
- Product type
TVS diode
- Enclosure
SOD 123FL
- Manufacturer
Littelfuse
- Reverse voltage U(R)
15 V
- Breakdown voltage U(BR)
18.5 V
- Terminal voltage U(CL)
24.4 V
- Peak current I(pp)
8.2 A
- Power (max) P(TOT)
200 W
- Polarity
Unipolar
- Power line protection
Yes
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2964493 Littelfuse TVS diode SMF15A SOD 123FL 18.5 V 200 W Tape on Full reel
