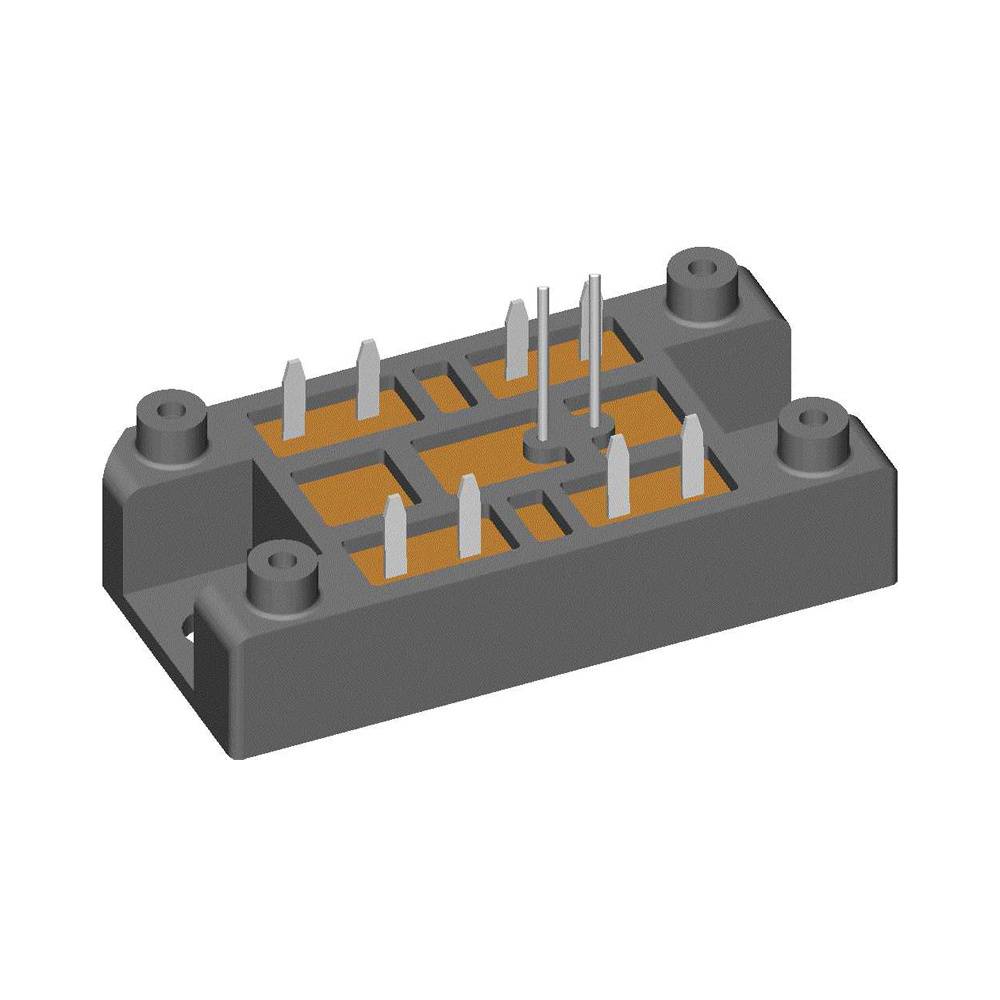

Littelfuse VUB72-12NOXT Diode bridge V1 A 1200 V Bulk
Packaging type
Bulk
Product type
Diode bridge
Enclosure
V1 A
U(RRM)
1200 V
Type
VUB72-12NOXT
EAN:
Part number:
Item no:
Technical specifications
- Package type V1-A-Pack
- Maximum repetitive blocking voltage (V) 1200 V
- Case temperature 110 °C
- Maximum virtual junction temperature: 150 °C.
- Thermal resistance (junction-case) (K/W): 1.1 K/W.
- VCES - Collector emitter voltage (V) 1200 V
- Forward voltage 1.38 V
- IC AT 80C 40 A
- Average continuous current rating 75 A
- Maximum surge current (A) 600 A
- Slope resistance for Power loss calculation: 7.7 mΩ
- Thermal resistance caeseatsink KW:0.3 K/W.
- VCE Saturation 1.85 V
- Avail. Forward current of free-wheeling diode 21 A
- IRM 18 A
- Maximum rate of rise in current over time: 400 A/µs
- Threshold voltage for Power loss calculation 0.79 V
- trr s 130 s
- Packaging type
Bulk
- Type
VUB72-12NOXT
- Product type
Diode bridge
- Enclosure
V1 A
- Manufacturer
Littelfuse
- Manuf. code
LIT
- U(RRM)
1200 V
- I(FSM) 50Hz
600 A
- I(FSM) 60Hz
600 A
- Reverse leakage current I(r)
18 A
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2965815 Littelfuse VUB72-12NOXT Diode bridge V1 A 1200 V Bulk
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
