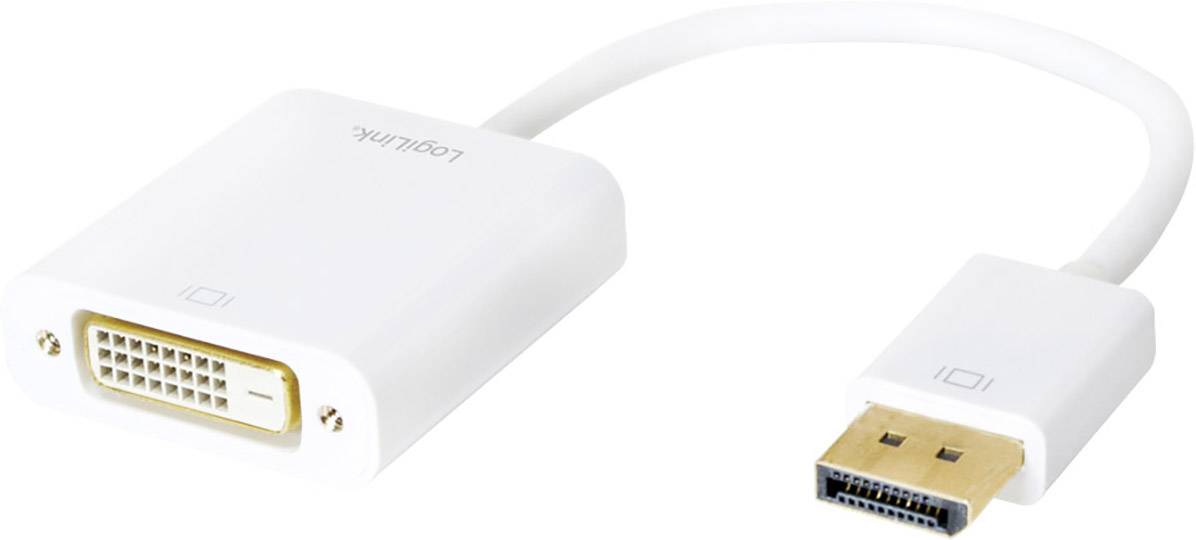

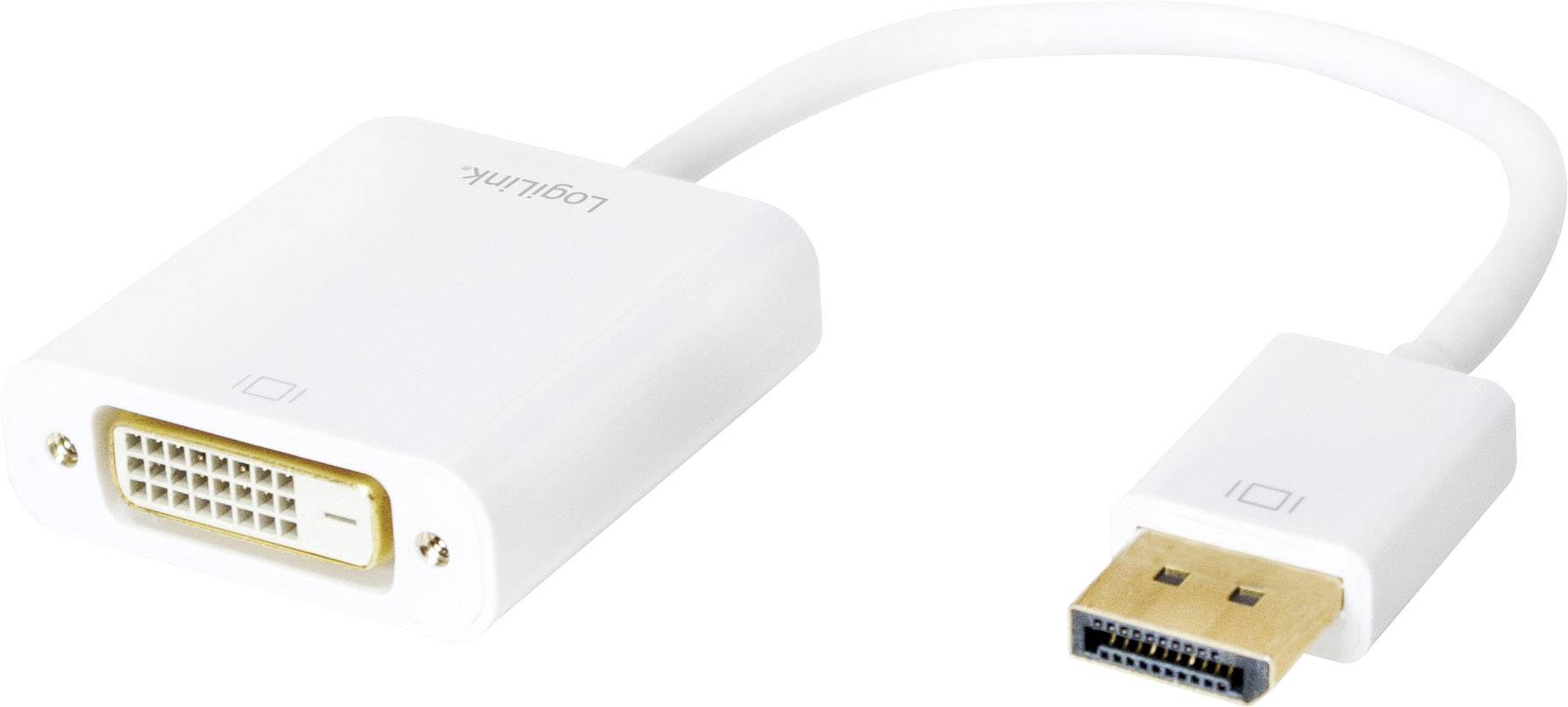

LogiLink CV0058B DisplayPort Adapter [1x DisplayPort plug - 1x DVI socket 25-pin] White 15.00 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LogiLink CV0058B DisplayPort Adapter [1x DisplayPort plug - 1x DVI socket 25-pin] White 15.00 cm
- Connection of DVI terminals to DisplayPort
- Supports 20-pin DisplayPort
- Maximum resolution 1920 x 1080 @ 60 Hz
- Supports HDCP 1.3
- Video bandwidth up to 2.7 GBit/s.
- With Multi Stream Transport (MST) function
- Maximum power output: 1W
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
DisplayPort
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
1 x
- Type B
DVI socket 25-pin
- Cable length
15.00 cm
- Factory colour
White
- Video resolution
1920 x 1080 Pixel
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Resolutions (max.)
Full HD 1080p @ 60 Hz
- Signal flow direction
Unidirectional (uni)
- Cable specs
DisplayPort 1.2
- Weight
14 g
- UKCA
yes
![LogiLink CV0058B DisplayPort Adapter [1x DisplayPort plug - 1x DVI socket 25-pin] White 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967750PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink CV0107 HDMI Adapter [1x HDMI plug - 1x VGA socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967758PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink AH0005 HDMI Adapter [1x HDMI plug - 1x HDMI socket] Black 90 degrees left](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967682PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink AH0006 HDMI Adapter [1x HDMI socket - 1x HDMI socket] Black 0 mm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967683PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink AH0011 HDMI Adapter [1x HDMI plug - 1x HDMI socket] Black gold plated connectors](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967684PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink AH0012 HDMI Adapter [1x HDMI plug - 1x HDMI socket] Black gold plated connectors](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967685PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink AH0014 HDMI Adapter [1x HDMI socket - 1x HDMI socket] White](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967686PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink AH0015 HDMI Adapter [1x HDMI socket - 2x HDMI socket] White](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967687PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink CHP001 HDMI Adapter [1x Open cable ends - 1x HDMI plug] Black, Silver Metal foil shield](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967740PI10/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![LogiLink CV0036B Adapter [1x Mini DisplayPort plug - 1x HDMI socket] White 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/001967741PI00/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
Documents & Downloads
Datasheet
Datasheet 1967750 LogiLink CV0058B DisplayPort Adapter [1x DisplayPort plug - 1x DVI socket 25-pin] White 15.00 cm
User & Safety Instructions
User & Safety Instructions 1967750 LogiLink CV0058B DisplayPort Adapter [1x DisplayPort plug - 1x DVI socket 25-pin] White 15.00 cm
Description
The DisplayPort to DVI adapter from LogiLink enables the operation of DVI terminals at the DisplayPort of your notebook or PC`s. Supported by the DVI-I standard and can transfer the maximum resolution of up to 1080p. The power is supplied via the display port. It is ideally suited for operating projectors, TFT, plasma or LCD TV with DVI connection to a MacBook or MacBook Pro by Apple.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x DisplayPort / DVI adapter (active)|1x operating instructions
