LUKAS-ERZETT A201101010312 Grinding bit 20 pc(s)
EAN:
Part number:
Item no:
Number (Package size 20 pc(s))
Total (€ 2.80 / piece)
€ 55.99
incl. VAT
14-day return policy included
Highlights & Details

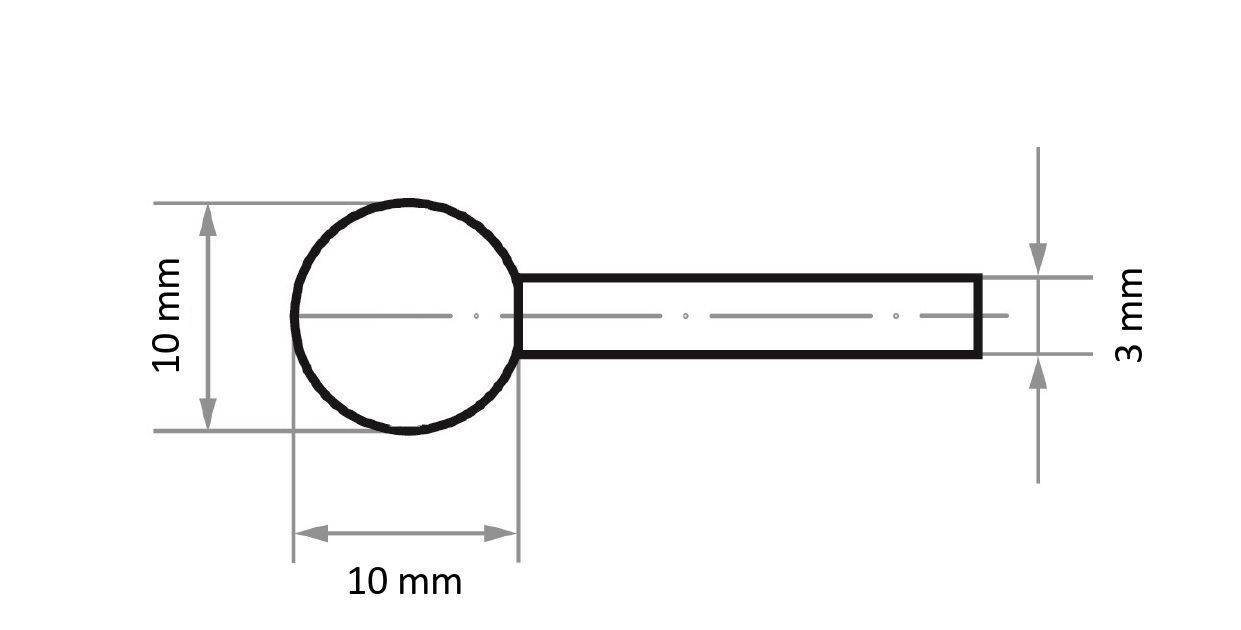

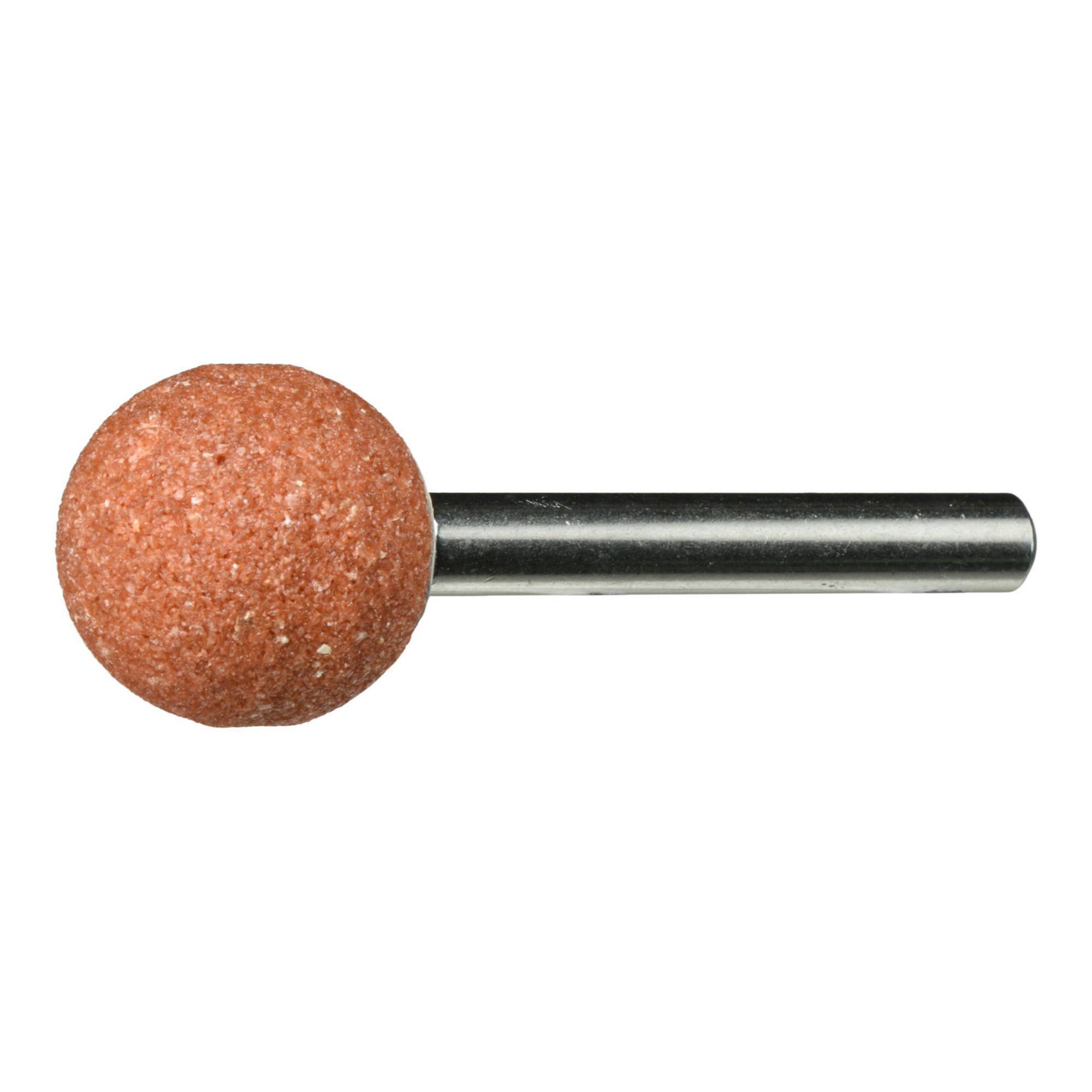

Grinding point KU ball-shaped steel/steel casting 10x10 mm shaft 3 mm | Grain 60
- Perfect results on steel and cast steel with high-quality corundum white in brown design
Technical specifications
- Safety standard EN 12413
- Tool holder: Shaft
- Tool holder dimensions 3 mm
- Shaft length 30 mm
- Tool form: Ball
- Grain size - FEPA 60
- Form group - GS: KU - ball
- Abrasive:EKWBR
- Hardness O/P
- Binding type: V ceramic binding
- Binding: V7
- Stars: 2
- Suitability Steel and cast steel RM up to 800 N/mm²: Suitable
- Suitability alloyed, coated steels RM up to 1200: Well suited
- Suitability for tool steels RM up to 1300 N/mm²: Well suited
- Application Precision machining: Suitable
- Suitable for steel: Well suited
- Product type
Grinding bit
- Shank Ø
3 mm
- Grit size
60
- Shape
spherical
- Content
20 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3441178 LUKAS-ERZETT A201101010312 Grinding bit 20 pc(s)
Description
Perfect results on steel and cast steel with high-quality corundum white in brown design
High hardness and sharpness for long durability
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
Quality-tested: High safety through regular testing
Also efficiently splints even harder materials
No dangerous shank breakage thanks to high-quality steel shaft
No chrome coating
The grinding pin EKWbr with high-quality corundum achieves perfect results on steel and cast steel and is perfectly suitable for use in roughing and roughing. The high hardness and the sharp grain of the high quality corundum ensure a long service life of the tool. Even harder materials are spattered efficiently. Regular tests ensure tested quality and a high level of safety. Due to the many different shapes, sizes and grain sizes , LUKAS offers grinding points for chamfering, deburring, roughing, fine grinding, engraving. Cast cleaning, welding seam working and much more. If you regularly use grinding points in various areas, our grinding point sets with different shapes, sizes and qualities are ideal for you.
This text is machine translated.
High hardness and sharpness for long durability
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
Quality-tested: High safety through regular testing
Also efficiently splints even harder materials
No dangerous shank breakage thanks to high-quality steel shaft
No chrome coating
The grinding pin EKWbr with high-quality corundum achieves perfect results on steel and cast steel and is perfectly suitable for use in roughing and roughing. The high hardness and the sharp grain of the high quality corundum ensure a long service life of the tool. Even harder materials are spattered efficiently. Regular tests ensure tested quality and a high level of safety. Due to the many different shapes, sizes and grain sizes , LUKAS offers grinding points for chamfering, deburring, roughing, fine grinding, engraving. Cast cleaning, welding seam working and much more. If you regularly use grinding points in various areas, our grinding point sets with different shapes, sizes and qualities are ideal for you.
This text is machine translated.
System requirements
- Straight grinder
