Name: LUKAS-ERZETT A25000516 LUKAS-ERZETT A25000516 N/A Diameter 6 mm 5 pc(s) Diameter 6 mm 5 pc(s)
Brand: LUKAS-ERZETT
SKU: 3440982
Availability: InStock

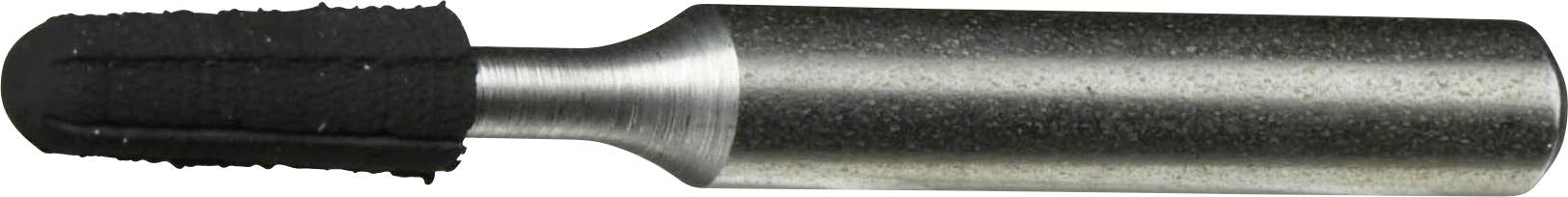

A cylindrical metal tool with a textured grip and a black abrasive tip, likely used for grinding or polishing surfaces.

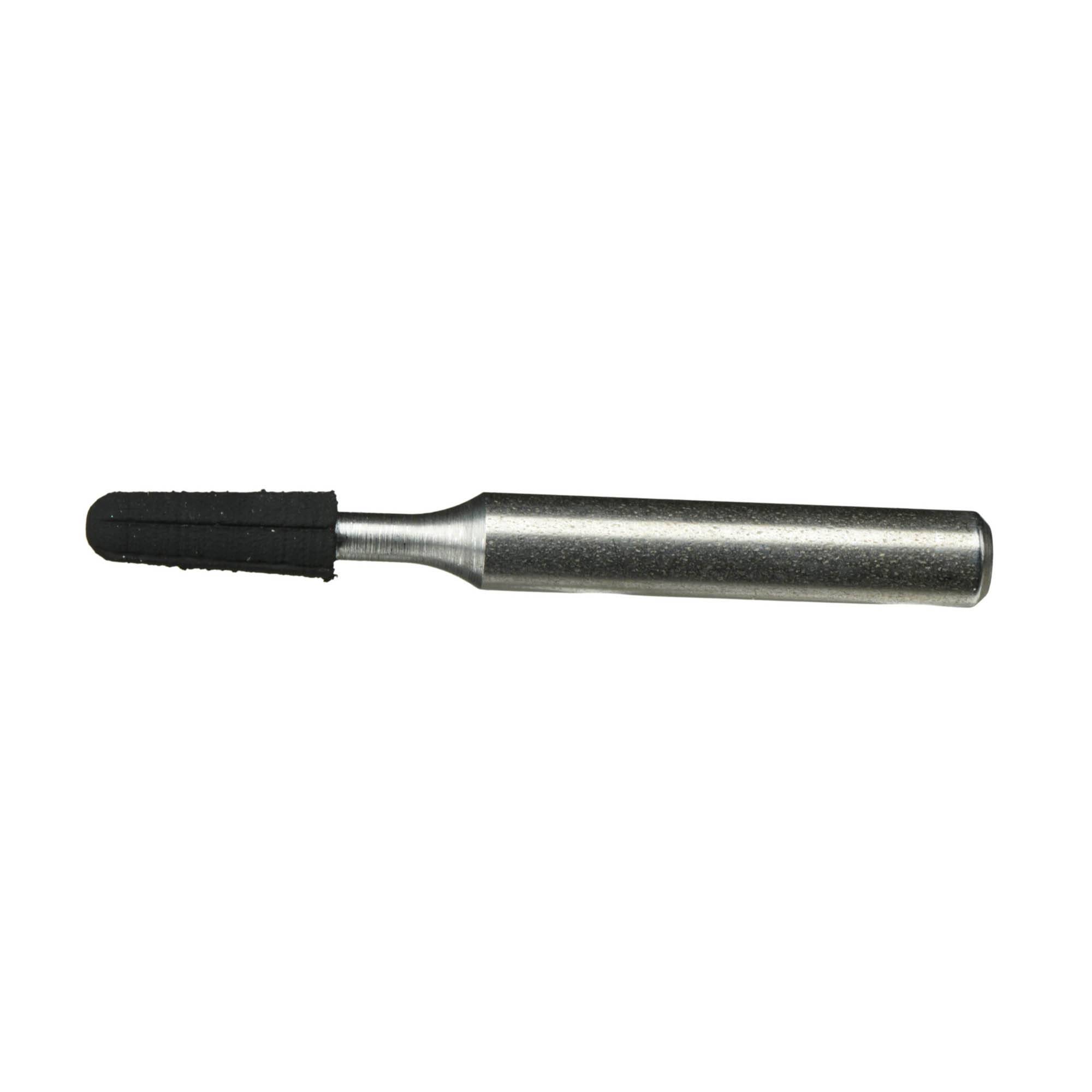

A metal tool with a textured, cylindrical rubber grip on one end, likely used for detailed work or precision tasks.

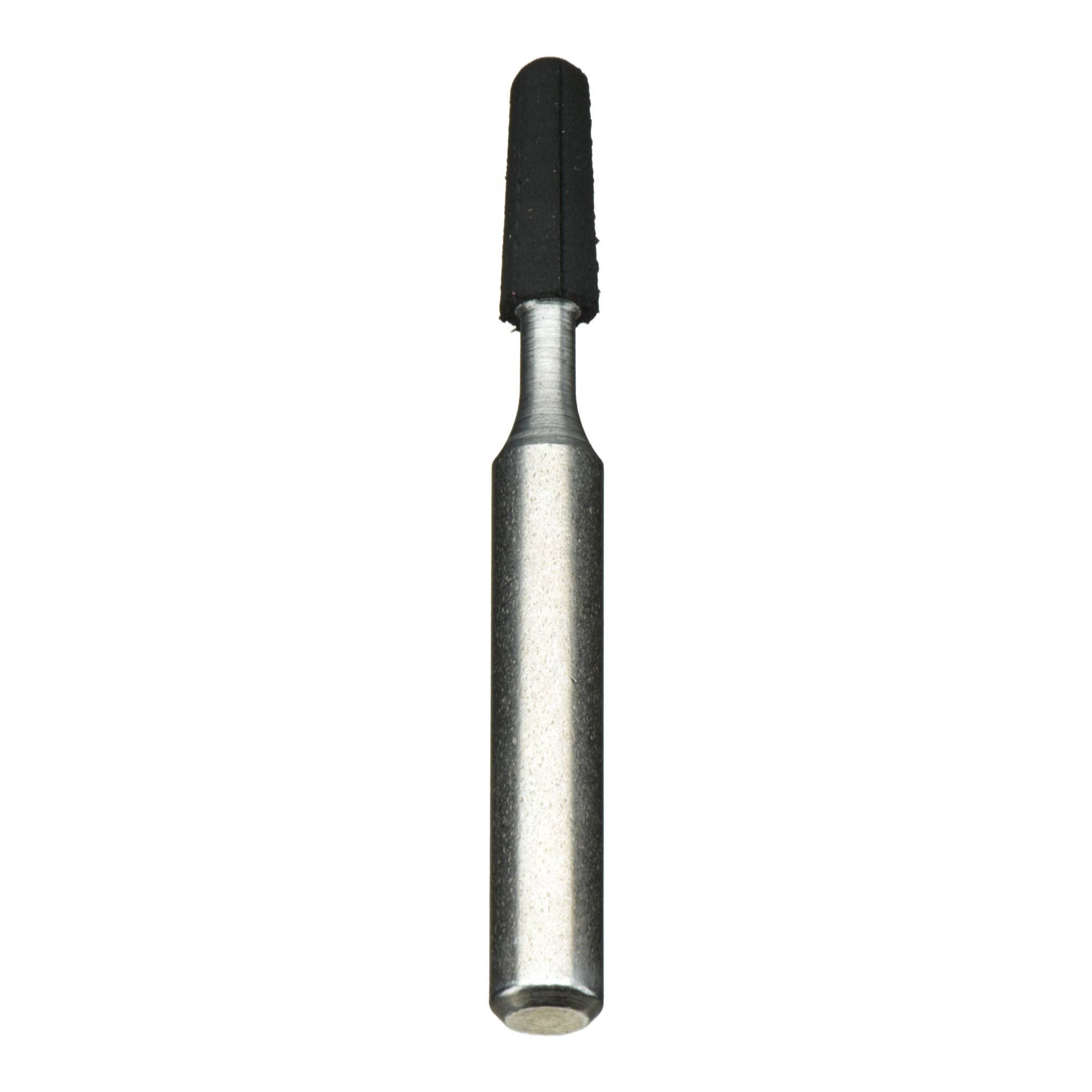

A cylindrical metal tool with a narrow, conical black rubber top, used for polishing or grinding surfaces.

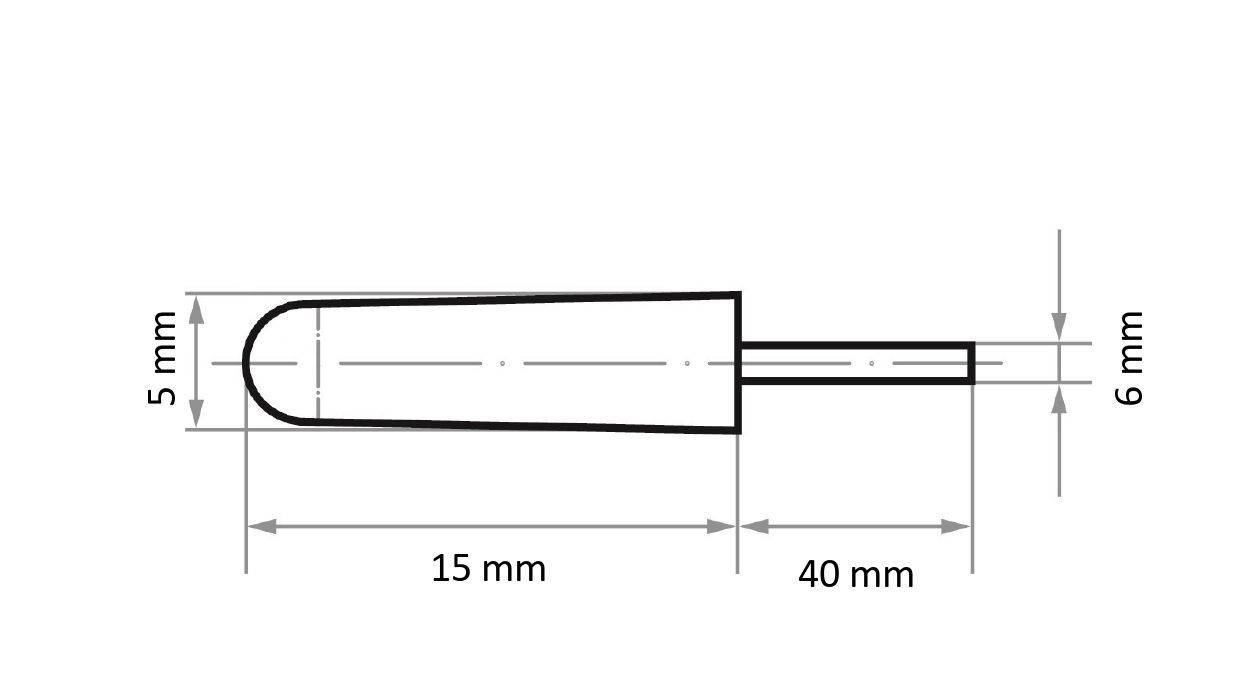

Technical diagram of an object showing measurements: length of 40 mm, width of 6 mm, with a rounded end height of 5 mm at the left end.

1/4

Fast track dispatch on Thu 15 Oct

2 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 9.20 / piece)

€ 45.99

incl. VAT

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LUKAS-ERZETT A25000516 N/A Diameter 6 mm 5 pc(s)

Perfect hold for grinding caps in every application

Technical specifications

Tool holder: Shaft
Tool holder dimensions 6 mm
Shaft length 40 mm
n max. (1/min): 95000
Tool form: Round cone
Stars: 2
Shape (rubber carrier): Tapered (KE)
Suitability Steel and cast steel RM up to 800 N/mm²: Suitable
Application deburring: Well suited
Application fine sharpening: Well suitable
Suitable for steel: Suitable

Product type: Tool shank

Shank Ø: 3 mm

Dim: (Ø x L) 6 mm x 40 mm

Content: 5 pc(s)

Material: Steel

Material properties: rust-proof

Length: 40 mm

(Ø): 6 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3440982 LUKAS-ERZETT A25000516 LUKAS-ERZETT A25000516 N/A Diameter 6 mm 5 pc(s) Diameter 6 mm 5 pc(s)

Description

Perfect hold for grinding caps in every application
No dangerous shank breakage thanks to high-quality steel shaft
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
No chrome coating
This grinding cap support is used to hold (tension) our grinding caps with round form of rollers. The special slot on the carrier securely tightens the sanding belts even with increasing speed and keeps them firmly on the carrier. The high-quality steel shaft of the abrasive cap carrier fits optimally in the drive machine. Clamps, slip or even shaft breakage are a thing of the past. The zinc-nickel coating keeps this tool free of rust. LUKAS abrasive caps are made of high-quality grinding fabric and are manufactured to fit accurately for exclusive use on the associated grinding cap support. LUKAS offers a wide range of tools with appropriate supports for different purposes (supports).

This text is machine translated.
