Name: LUKAS-ERZETT A2502060306 LUKAS-ERZETT A2502060306 N/A 5 pc(s) 5 pc(s)
Brand: LUKAS-ERZETT
SKU: 3441004
Availability: BackOrder

A beige buffing wheel with a metal spindle, used for polishing surfaces. It has a circular shape and evenly spaced segments.

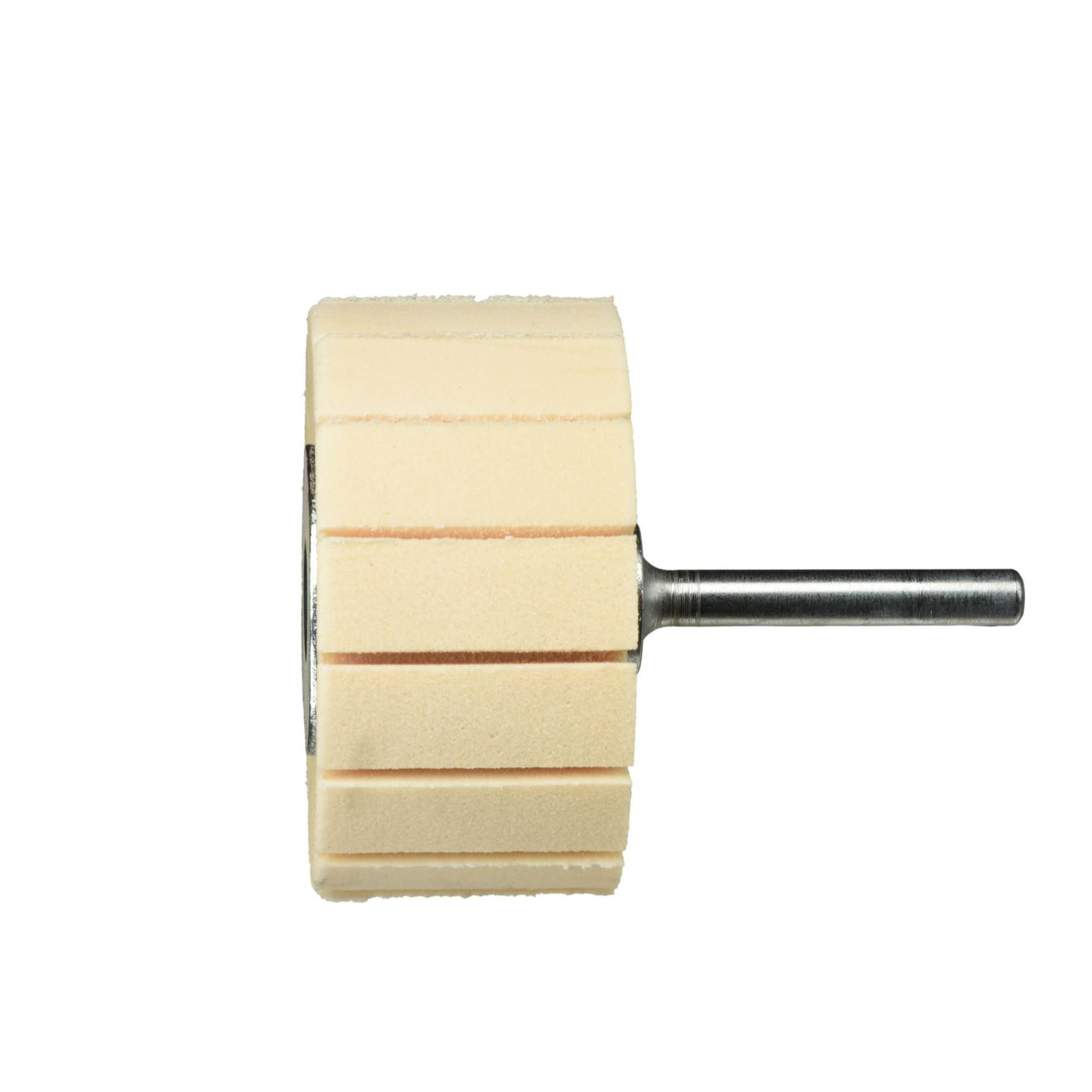

Beige cylindrical polishing wheel with multiple segments and a metal shaft, used for polishing materials in industrial settings.

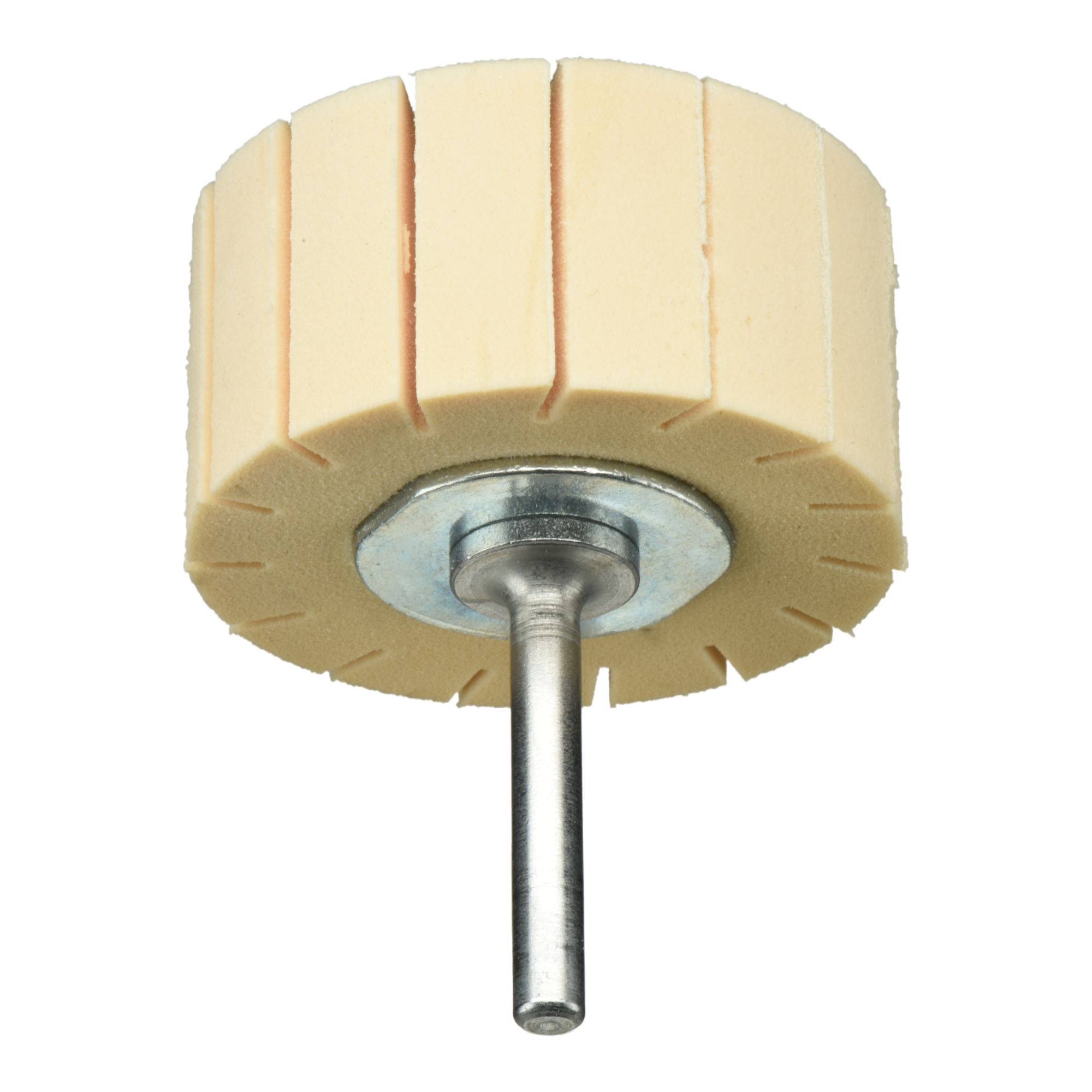

A beige abrasive flap wheel with vertical slits and a central metal shaft, used for sanding and finishing surfaces.

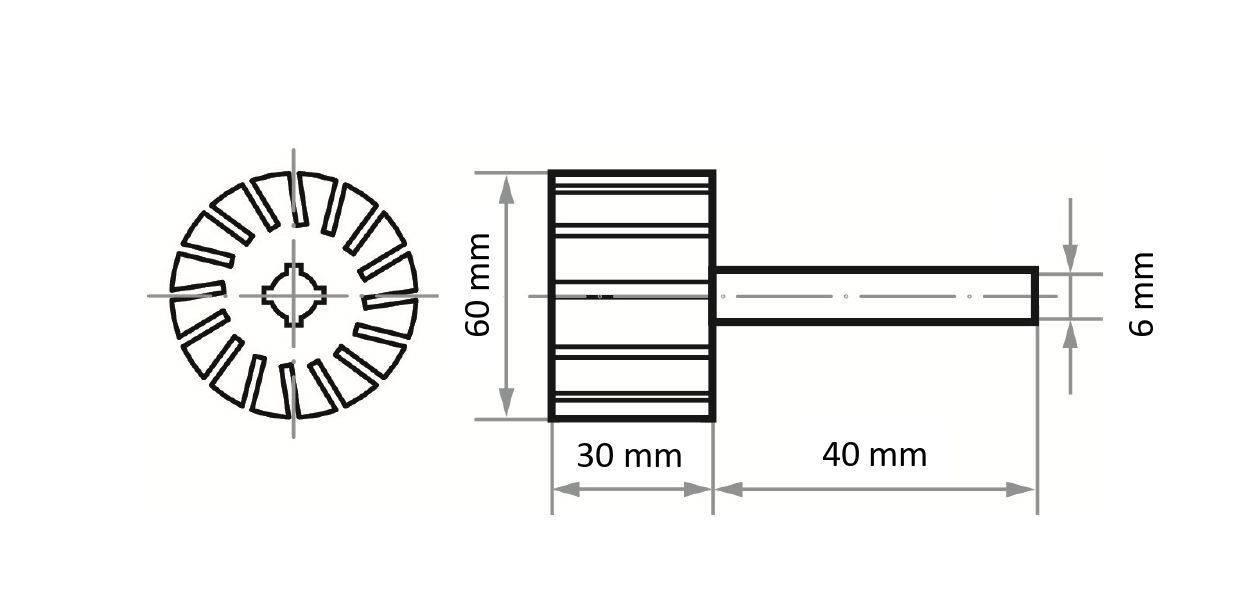

Technical drawing of a cylindrical object with a flange. The side view shows a diameter of 60 mm, flange width of 30 mm, and total width of 40 mm. The shaft is 6 mm in diameter.

1/4

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 42.00 / piece)

€ 209.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LUKAS-ERZETT A2502060306 N/A 5 pc(s)

Fixed stop for sanding belts even at high speed

Technical specifications

Tool holder: Shaft
Tool holder dimensions 6 mm
Shaft length 40 mm
n max. (1/min): 4700
Cylinder shape
Stars: 2
Suitability Steel and cast steel RM up to 800 N/mm²: Suitable
Application deburring: Well suited
Application fine sharpening: Well suitable
Suitable for steel: Suitable

Product type: Tool shank

Shank Ø: 6 mm

Dim: (L x W) 60 mm x 30 mm

Working length: 40 mm

Content: 5 pc(s)

Material: Steel

Material properties: rust-proof

Width: 30 mm

Length: 60 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3441004 LUKAS-ERZETT A2502060306 LUKAS-ERZETT A2502060306 N/A 5 pc(s) 5 pc(s)

Description

Fixed stop for sanding belts even at high speed
No dangerous shank breakage thanks to high-quality steel shaft
Stainless steel, zinc-nickel coating
Perfect dimensional stability: Fits optimally into the drive machine
No chrome coating
The LUKAS tool holder STZY in hardness soft allows a safe and firm hold of sanding belts even at high speeds. The specified maximum permissible speeds are valid for a maximum open shaft length L0 of 20 mm. For other deflection lengths, the maximum permissible speed must be calculated separately. The high-quality steel shaft prevents dangerous shaft breakage and fits optimally in the drive machine. In addition, the tool remains rust-free due to the zinc-nickel coating. LUKAS offers you a wide range of sanding belts and matching sanding belts. They are available in many dimensions and qualities.

This text is machine translated.
