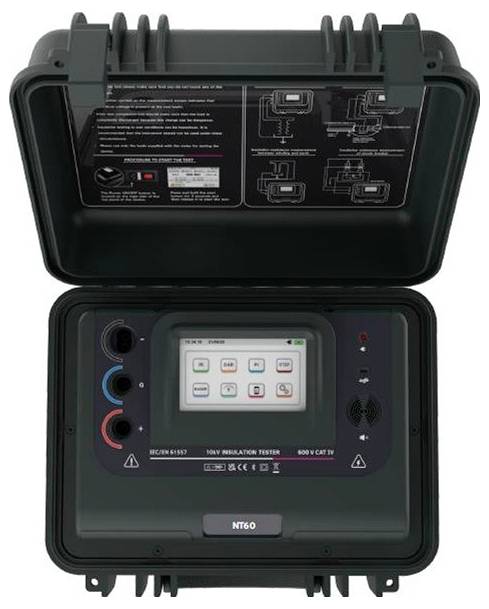

Lumel Insu NT60 10kV insulation tester
- Enormous testing voltage: Flexibly adjustable test voltages from 100 V to 10,000 V (in 10 V or 25 V steps)
- Wide measurement range: Measurement of insulation resistance from 50 kΩ up to an impressive 20 TΩ
- Excellent noise suppression: Precise measurements in disturbed environments thanks to 8 mA noise reflection and selectable digital filters
- Comprehensive diagnostic functions: Automatic execution of PI, DAR, DD (Dielectric Discharge), stage voltage tests and ramp tests
- Intelligent data management: Internal data storage for up to 2000 measured values with time stamp and customer information
- State-of-the-art connectivity: Bluetooth (2.0 & 4.0) and an isolated USB interface for transfer to PC (Windows) or mobile apps (Android/iOS)
- Innovative operation: Intuitive control via color touch screen and acoustic output for difficult to understand applications
- Real-time analysis: Graphical display of the insulation resistance directly on the display over time course
- Robust design: Highest protection by a housing with IP 67 (closed) and security according to CAT IV 600 V.
- Dual operation: Powerful Li-ion rechargeable battery for up to 5.5 hours of continuous operation or direct mains operation possible
Technical specifications
- Internal data storage for up to 2000 measured values with time stamp
- Audio output of the measurement results
- Software-selectable digital noise filter
- Product type
Insulation tester
- Test voltage
100 V
10000 V
- Reading type
Insulation resistance
Voltage
Manufacturer's standards (no certificate)
- Reading range - resistance
50 kΩ to 20 TΩ
- Interfaces
Bluetooth® 2.0
USB 2.0
IP67
IP40
- Power supply (details)
14.8 V
- Dim
(L x W x H) 360 x 310 x 195 mm
- Weight
5 kg
- Display type
Digital
- Max. frequency
500 Hz
- Min. frequency
45 Hz
- Frequency range
45 Hz - 500 Hz
- Insulation resistance (max.)
20 TΩ
- Calibration service
According to IEC 61557 Part 1 & 2
- Voltage reading range (max.)
600 V AC
600 V DC
- Voltage reading range (min.)
20 V AC
20 V DC
- Reading category
CAT IV 600 V
- Width
310 mm
- Height
195 mm
- Length
360 mm
Documents & Downloads
Datasheet
Datasheet 3741949 Lumel Isolations Widerstandsmessung bis 20 Tohm Insulation tester 100 V, 10000 V 20 TΩ
User & Safety Instructions
User & Safety Instructions 3741949 Lumel Isolations Widerstandsmessung bis 20 Tohm Insulation tester 100 V, 10000 V 20 TΩ
Description
Lumel Insu NT60: Maximum High Voltage DiagnosisSet new standards in isolation testing with the Insu NT60. This 10 kV digital insulation tester was specially developed for the most demanding environments in power plants and power supply systems where there are extremely high induction fields. Thanks to its outstanding noise immunity of 8 mA the NT60 delivers precise and reliable results even under high-voltage lines.
Equipped with a modern TFT color touch screen, Bluetooth connectivity and an innovative audio announcement function, the device offers a user-friendliness that is second to none. Whether cables, motors, transformers or generators – with the NT60 you can conduct comprehensive diagnoses such as polarization index (PI), dielectric absorption (DAR) or ramp tests efficiently and safely.
This text is machine translated.
Equipped with a modern TFT color touch screen, Bluetooth connectivity and an innovative audio announcement function, the device offers a user-friendliness that is second to none. Whether cables, motors, transformers or generators – with the NT60 you can conduct comprehensive diagnoses such as polarization index (PI), dielectric absorption (DAR) or ramp tests efficiently and safely.
This text is machine translated.
Features
- Polarisation index (PI)
- Dielectric absorption ratio (DAR)
- Dielectric Discharge (DD)
- RCD ramp test
- Step voltage test
- Capacitance testing
- Leakage current
Scope of delivery
- 1 built-in Li-Ionen-battery
- User manual
- Power cable;
- USB cable (for communication and software)
