Lumel N20 5200008 4 -20 mA/DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

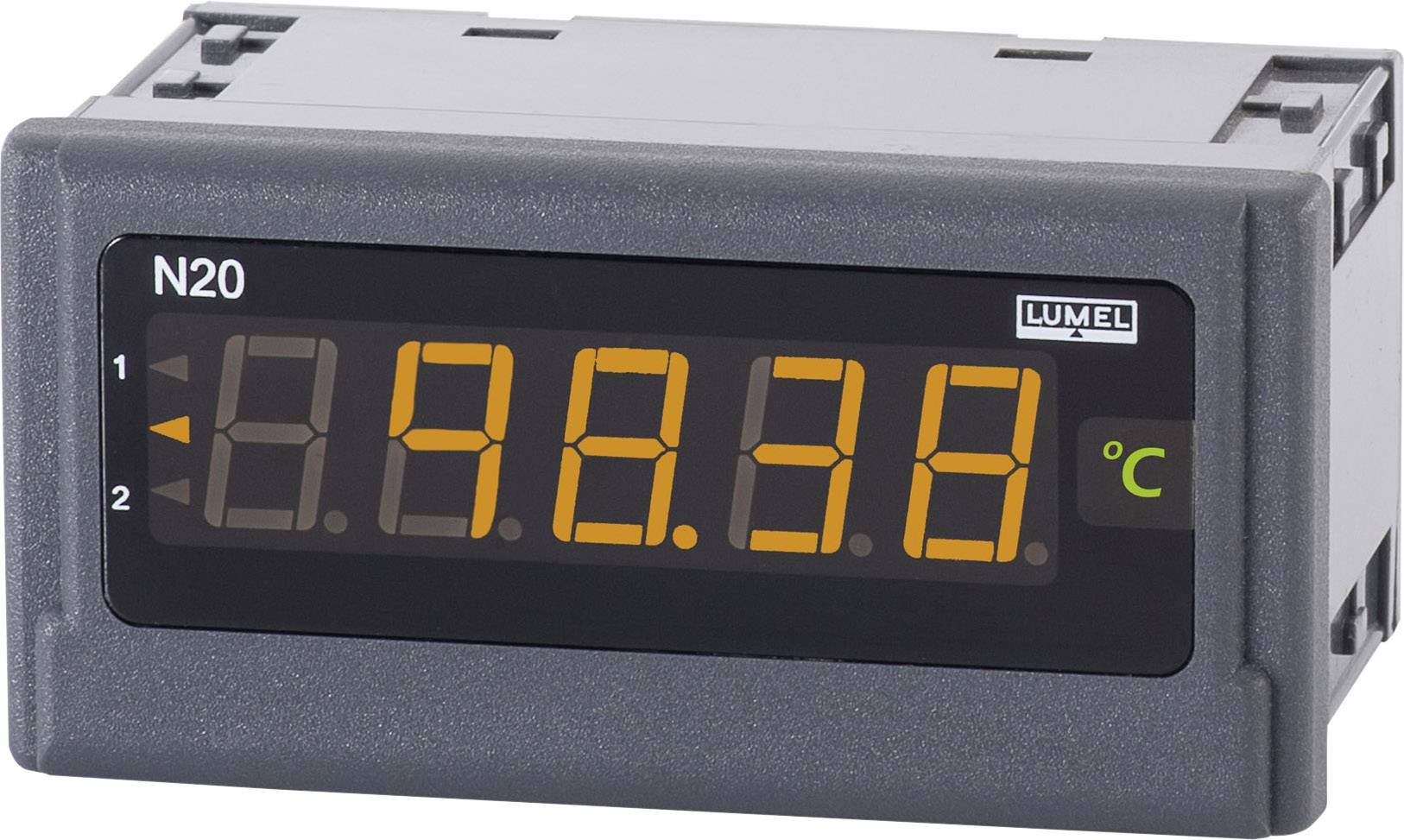

Digital panel-mounted meter
- Assembly dimensions 96 x 48 mm
Technical specifications
- Reading type
Amperage
- Reading range (min.)
4 mA
- Type
N20 5200008
- Reading range (max.)
20 mA
- Display technology
LED
IP65 (front)
- Recess width
96 mm
- Display (counts)
5
- Recess height
48 mm
- Dim
(L x W x H) 64 x 96 x 48 mm
- Weight
250 g
- Features
Colour display
- Width
96 mm
- Height
48 mm
- Length
64 mm
- Interfaces
Screw terminal
- Digit height
14 mm
- Connections
Screw terminals
- Digits
5
- Display (details)
LED
- Assembly dimensions
96 x 48 mm
- Power supply (details)
20 - 40 V AC/DC
- Tolerance
±0.2 %
- Reading range
4 -20 mA/DC
Documents & Downloads
Datasheet
Datasheet 1384063 Lumel N20 5200008 4 -20 mA/DC
User & Safety Instructions
User & Safety Instructions 1384063 Lumel N20 5200008 4 -20 mA/DC
Description
Digital Meter Installation (96 x 48 mm). Measurement range 4 -20 mA Display area programmable with PD 14 Programr (optionally available). 2 x OC-output (max. 20 mA). Power supply 20 - 40 V AC/DC.
This text is machine translated.
This text is machine translated.
Features
- Control Panel measuring device
- Connection via screw terminal plug.
Scope of delivery
- 4 screw clamp mountings
- User manual.
