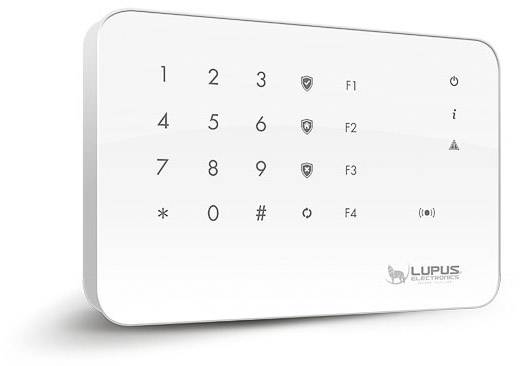

LUPUSEC Wireless Code keypad Keypad V2

1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

LUPUSEC Keypad V2 for the outdoor area

  • Weather-resistant and suitable for outdoor use.
  • Built-in RFID Tag-Reader
  • 4 freely programmable home automation buttons
  • Logo with text 'Works with Amazon Alexa'. Below it reads 'Separate base station required for use with Amazon Alexa'.

Technical specifications

  • Programmable RFID chips: Max. 40
Product type

Code keypad

Series

LUPUSEC

Alexa (separate hub required)

IP66

Power supply (LOV)

mains-powered

battery-powered

Operating voltage

12 V

Data transfer (Smart Home)

Wireless

Frequency

868 MHz

100 m

Mounting type

Flush mount

Width

130 mm

Height

195 mm

Depth

22 mm

Dim

(W x H x D) 130 x 195 x 22 mm

Hub

Required

Data exchange

Bidirectional (bi)

n.rel.

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1595639 LUPUSEC Wireless Code keypad Keypad V2

User & Safety Instructions

User & Safety Instructions 1595639 LUPUSEC Wireless Code keypad Keypad V2

Description

The keypad allows an extensive control of the smart home alarm system

The LUPUSEC outdoor keypad is used to control the XT2/XT2 plus alarm system, and will, in particular, for the activation and deactivation at enter and leave the building. For this purpose, enter either one of fifty freely definable PIN code or wipe simply with the personal RFID chip via the keypad. The large, fuse technical advantage of outdoor keypad vis-à-vis the inner variant is that the secure area for the disarming must not be entered. Thus, you can completely do without input and output delays on risk.

Cable for signal transmission are not necessary. The keypad can be either with batteries or the included 12 V power supply unit can be used, and is very easy to set up and ready for operation in a short period of time.

The Outdoor keypad offers four freely programmable Smart Home buttons (F1-F4) with which you can, for example, activate/deactivate the light, the heating when leaving download rules, the tursummer activate or complete scenarios can be performed.
The integrated alarm output starts when touching the keypad a camera recording or opens the door. With the keypad you can, depending on which PIN code you use, both areas. The management including the code or RFID chip-related user rights are simply in the web server of the alarm system defined. Here you can enter per area up to 50 PIN code (6 in the XT1) and with a name link. So you can see at any time in the overview (logs), when which code was used anytime and anywhere with the free app and push notifications.

Features

  • Connecting a digital current meter connected to the infrared
  • Rollierendes wireless encryption methods
  • RFID Tag-Reader detects power guzzler at home on
  • Programmable alarm output is activated camera recording, Tursummer or similar.
  • Sabotage contact
  • Backlit display
  • Battery or mains operation.

Scope of delivery

  • LUPUSEC Outdoor Keypad V2
  • 2 x AA batteries
  • Wall bracket with mounting accessories
  • 12-V-Power Supply
  • RFID chip
  • User manual.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
