LUPUSEC Wireless Socket Test function Hausautomatisierung

1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

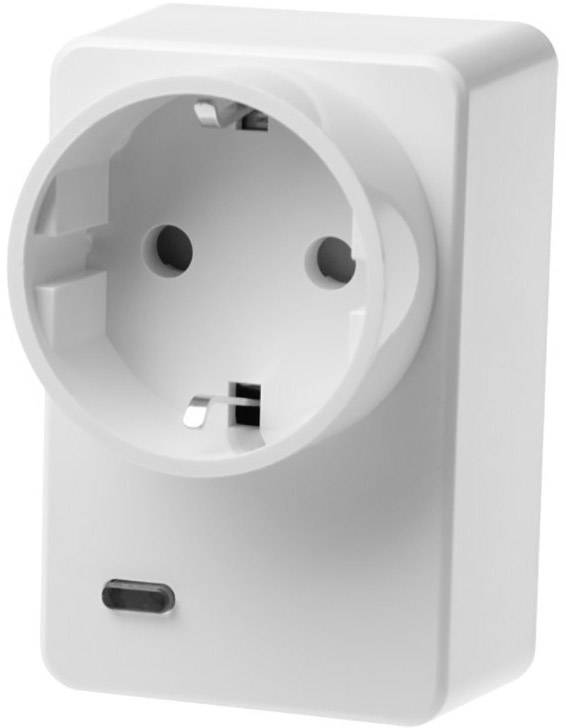

Lupusec Radio socket with current meter for XT2 Plus

  • Individual switching of your devices from at home or on the go
  • Shows the power consumption of the connected devices
  • Repeater function for other tens of Bee-Gerate
  • Logo with text 'Works with Amazon Alexa'. Below it reads 'Separate base station required for use with Amazon Alexa'.

Technical specifications

  • Wireless Protocol: ZigBee ha 1.2
  • Possible load: 3680 W, 16 A
  • Power consumption (idle mode): 0.6 W
  • Relay: Normally open contact, 1-pole, µ-contact
  • II protection rating
  • Operating temperature: -10 °C to 45 °C, max. 85% (non-condensing)
Product type

Socket

Series

LUPUSEC

Alexa (separate hub required)

IP20

Power supply (LOV)

mains-powered

Operating voltage

230 V

Data transfer (Smart Home)

Wireless

Frequency

2.4 GHz

100 m

Mounting type

Surface-mount

Width

67 mm

Height

110 mm

Depth

56 mm

Dim

(W x H x D) 67 x 110 x 56 mm

Hub

Required

Data exchange

Bidirectional (bi)

n.rel.

Weight

0.181

Features

Test function

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1517444 LUPUSEC Wireless Socket Test function Hausautomatisierung

User & Safety Instructions

User & Safety Instructions 1517444 LUPUSEC Wireless Socket Test function Hausautomatisierung

Description

The smart circuit help for at home: the XT2 Plus wireless outlet.

In the morning before you get out of the coffee machine is switched on. In the evening a illuminated at home, even if they are not at home: With the LUPUSEC-XT2 Plus wireless socket can be electrical devices, such as lamps, coffee machine or radio can easily integrate into your house control. The application possibilities are varied: for example, you can configure the consumer loads connected to the socket (e. g. Stand-by devices) When Arming the alarm system must be switched off and on deactivation of the alarm system is supplied with power. This Smart Home functions saves your property during your absence intelligent power. Moreover, it is possible the socket from the distance, for example, with your smartphone to activate/deactivate.

Power consumption and costs in view:
The wireless switch makes your home more comfortable, safe and economical: Because at the push of a button interrupts the adapter power supply and thus saves intelligent energy and costs. These have you are always in the view, because the radio-controlled switch socket sends the consumption of all devices connected to the central system. Here you can see the current consumption, as well as an extrapolation of the costs for the week, month or year round.

Repeater function including!
In addition to those already mentioned functions is the purpose of this radio-controlled switch socket as a repeater for all XT2 Plus sensors (ZBS). Switched in series you can extend the range of up to 10 sensors per socket enormously increase.

Features

  • Calculates the consumption to week/month/year
  • More Living comfort, safety and energy saving
  • Very small housing
  • Switches up to 3680 W, 16 A
  • Red LED for status display.

Scope of delivery

  • Radio socket with current counter/Cig Bee-Repeater
  • User manual.

Hints

Only compatible with the Lupusec XT2 Plus Central or XT2 with upgrade dongle!
