LUPUSEC ZigBee Actuator Lichtschalter V2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
lupus light switch V2
- Replaces your existing light switch
- Controls a maximum of 2 circuits
- Integrated dimmer with horizontal LED display
- Allows you to control the light through the XT2 Plus smart home Alarm system
- Compatible with XT1 Plus, XT2 Plus and XT3
- ZigBee wireless protocol
Technical specifications
- Product type
Actuator
- Series
LUPUSEC
Alexa (separate hub required)
- Transfer Standard (Smart Home)
ZigBee
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Data transfer (Smart Home)
Wireless
- Factory colour
White
- Width
84 mm
- Height
84 mm
- Depth
35 mm
- Dim
(W x H x D) 84 x 84 x 35 mm
- Hub
Required
- Data exchange
Bidirectional (bi)
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2339833 LUPUSEC ZigBee Actuator Lichtschalter V2
User & Safety Instructions
User & Safety Instructions 2339833 LUPUSEC ZigBee Actuator Lichtschalter V2
Description

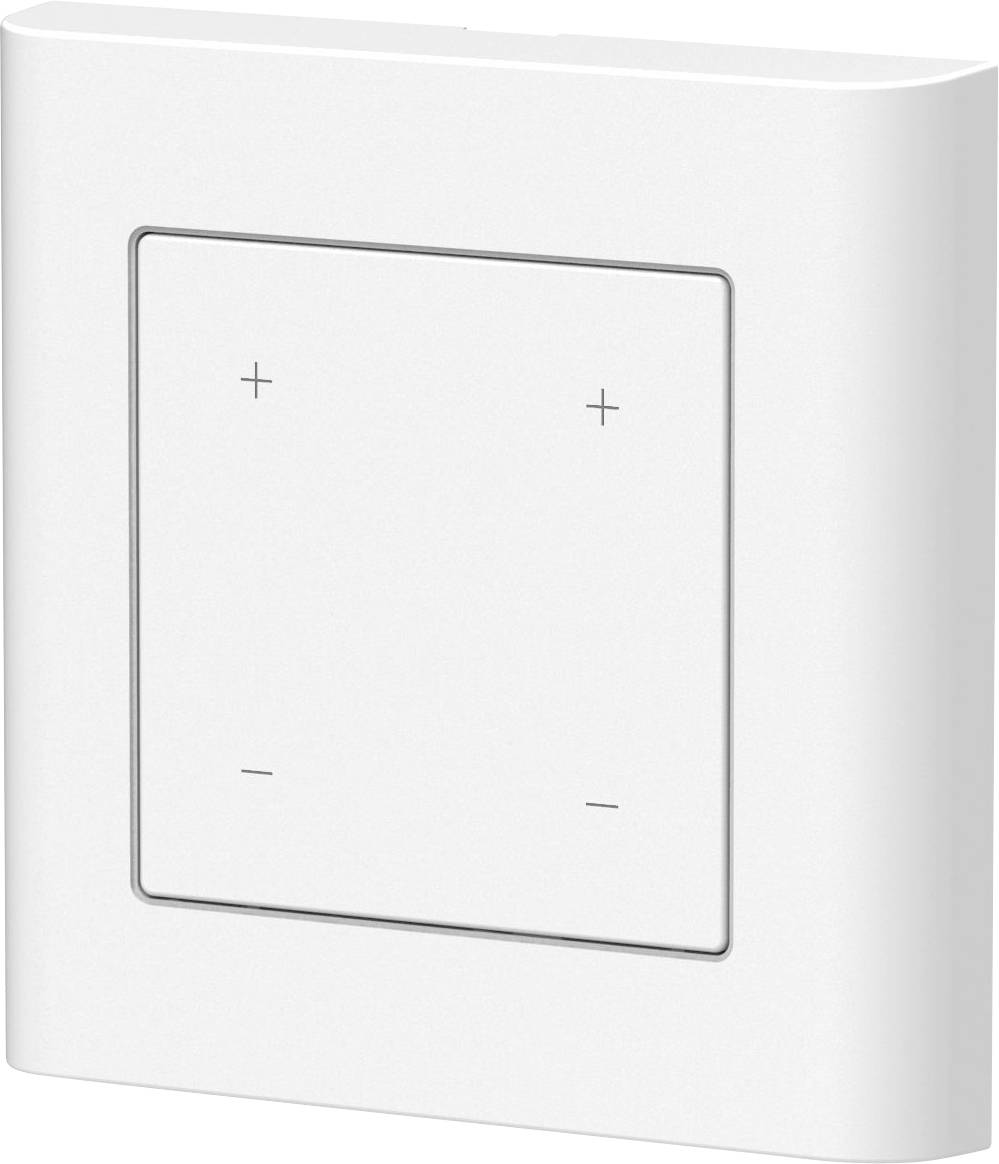

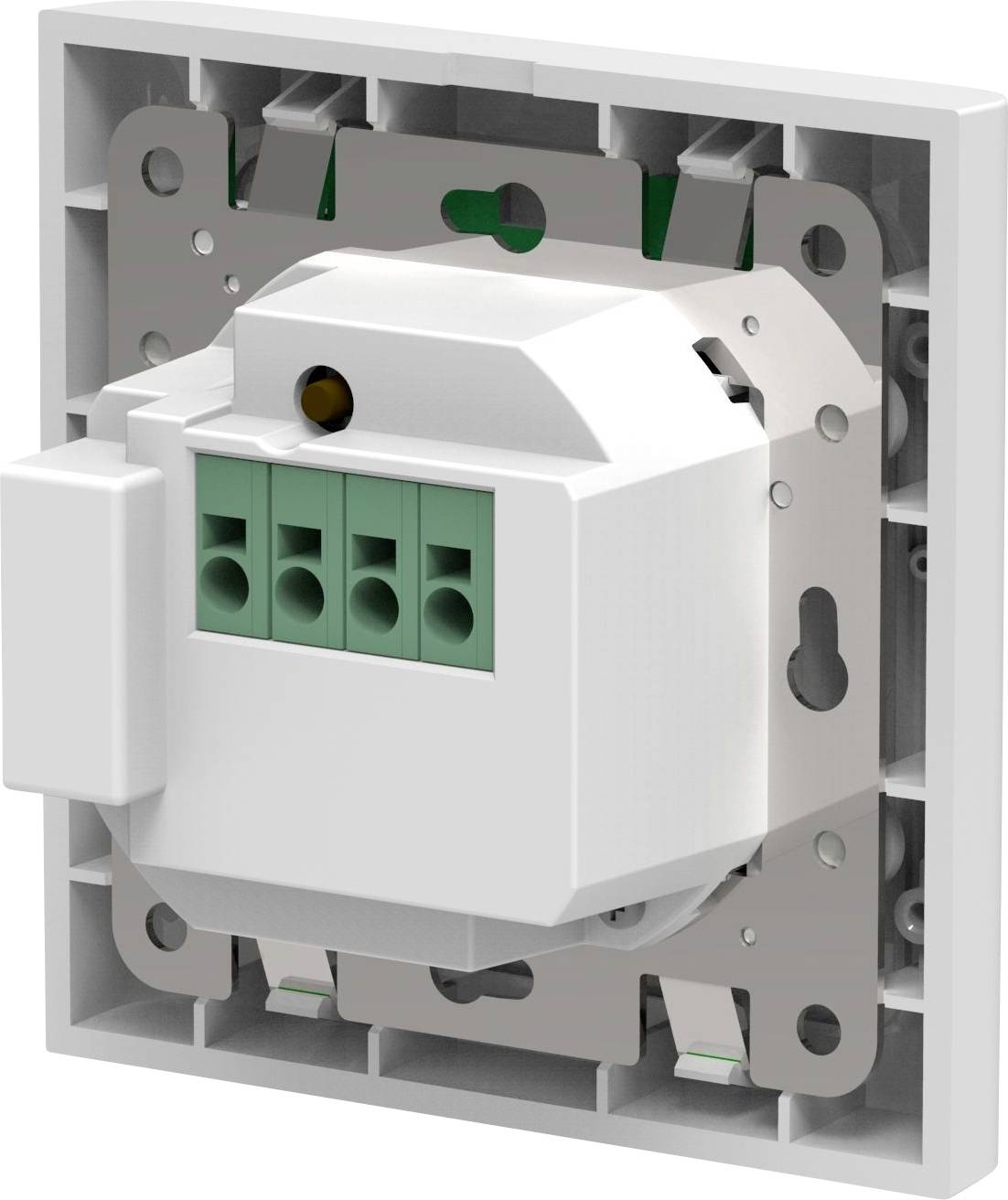

The light switch replaces your existing light switch and thus enables an integration in the LUPUSEC smart alarm system in addition to the conventional operation. You can connect up to two lamps (or two circuits) to the light switch V2 and dim them.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Light switch V2
- User manual.
