LUPUSEC ZigBee Motion detector PIR V2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

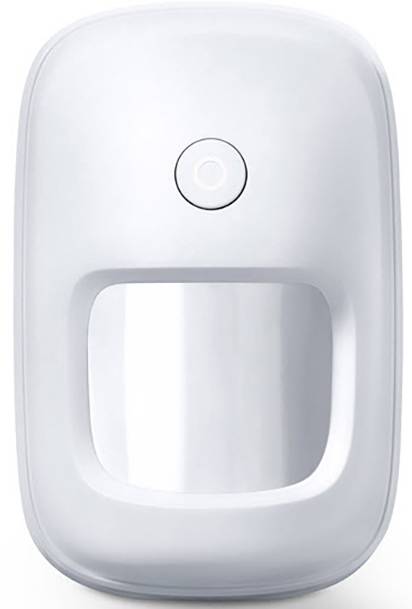

lupus PIR motion detector V2
- Reliably reports all moving objects based on heat radiation
- Wireless connection (approx. 30 - 100 m range)
- Small, modern housing
- Tamper detection
- Status transfer
- Alarm notification in case of alarm via the central unit via SMS, telephone call, push, e-mail or contact ID
Technical specifications
- Product type
Motion detector
- Series
LUPUSEC
Alexa (separate hub required)
- Transfer Standard (Smart Home)
ZigBee
- Used at
Indoors
- Power supply (LOV)
battery-powered
- Data transfer (Smart Home)
Wireless
- Factory colour
White
- Width
62 mm
- Height
94 mm
- Depth
45 mm
- Dim
(W x H x D) 62 x 94 x 45 mm
- Hub
Required
- Data exchange
Bidirectional (bi)
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2339863 LUPUSEC ZigBee Motion detector PIR V2
User & Safety Instructions
User & Safety Instructions 2339863 LUPUSEC ZigBee Motion detector PIR V2
Description
The high-quality designed motion sensor can be taught in to your lupus XT center with just one click. If the detector is active, it registers every movement within milliseconds. This means that you are always informed and alerted in case of an emergency. This allows you to protect the interior of your home, shop or office building.

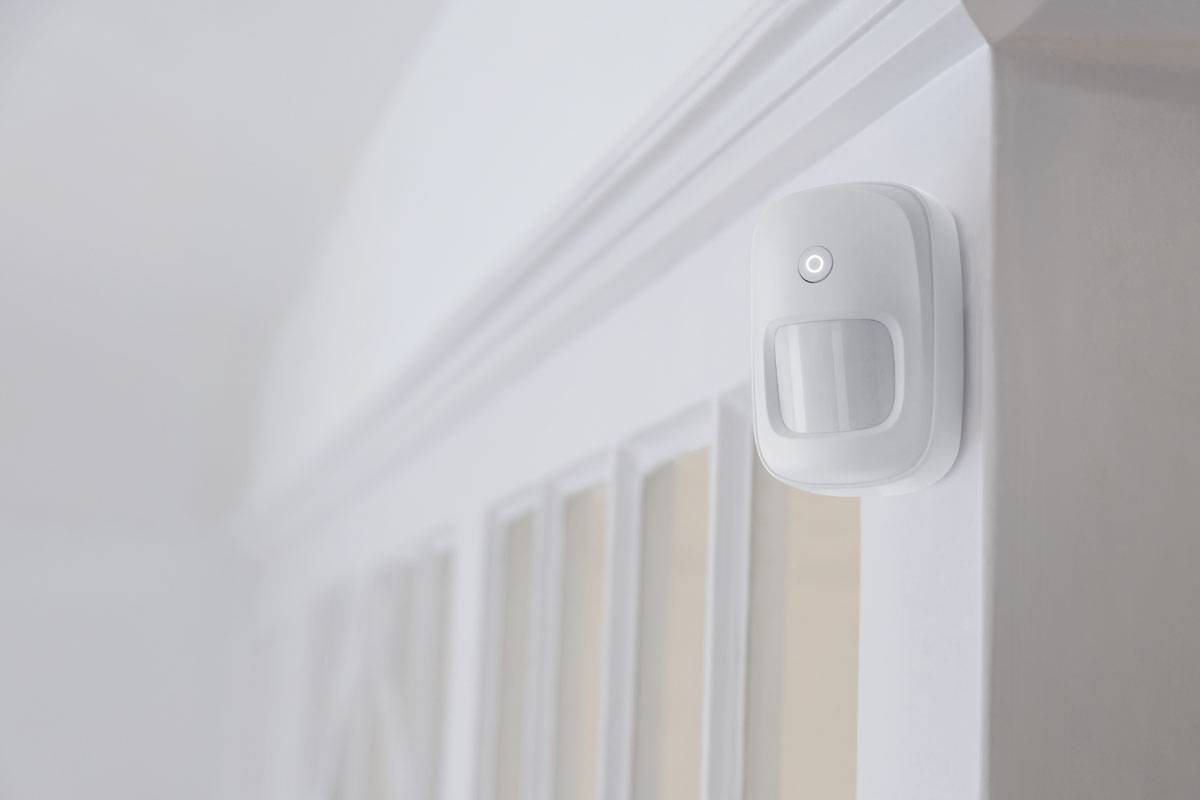

Correctly mounted, at a height of 1.8 - 2 meters, it perceives objects at a maximum of 12 meters and at an angle of 110 degrees.
The PIR motion detector V2 is battery-operated, has a sabotage detection on the rear side and is connected to the alarm system via radio. Therefore, it can easily be glued or screwed to any wall or ceiling of your choice. A corner bracket as well as mounting material are included in the delivery. No cables are required for signal transmission or power supply via mains adapter. Simply connect and set up the motion detector via the central unit with the alarm system.
This text is machine translated.
Correctly mounted, at a height of 1.8 - 2 meters, it perceives objects at a maximum of 12 meters and at an angle of 110 degrees.
The PIR motion detector V2 is battery-operated, has a sabotage detection on the rear side and is connected to the alarm system via radio. Therefore, it can easily be glued or screwed to any wall or ceiling of your choice. A corner bracket as well as mounting material are included in the delivery. No cables are required for signal transmission or power supply via mains adapter. Simply connect and set up the motion detector via the central unit with the alarm system.
This text is machine translated.
Scope of delivery
- PIR motion detector V2
- CR123 Lithium battery
- Corner bracket
- Screws and rawlplugs
- User manual.
