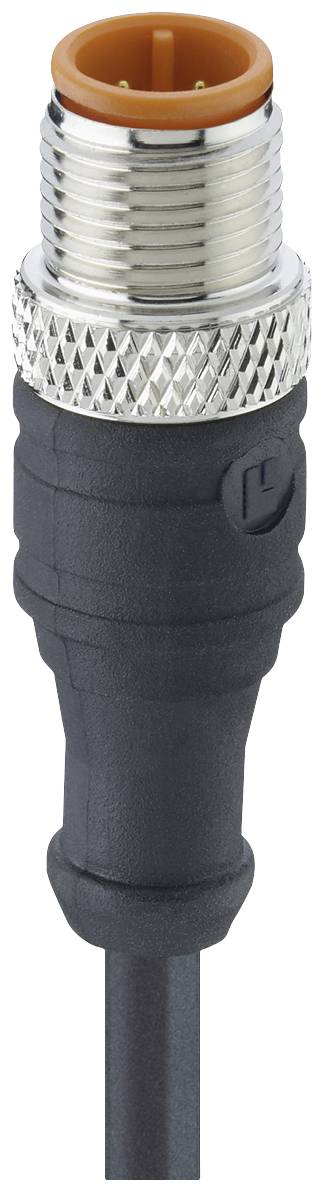

Image similar
Lutronic 1210 05 302 2m Sensor/actuator cable M12 Plug, straight 2 m No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
Cable, open end
Datasheet (PDF)
Highlights & Details
Actuator-/sensor lines 1210 05 302 2m
- Actuator/sensor cable with molded plug connector
- Cable end 1:
- M12 connector
- straight
- A-coded
- IP67
- Cable end 2:
- Open ends
- Cable:
- PUR
- Black
- This text is machine translated.
Technical specifications
- Plug-in force ≤ 10 N
- Pull force ≤ 15 N
- Continuous resistance ≤ 10 mΩ
- Dimensioning surge voltage: 2500 V
- Material contact carrier: TPU GF, HB according to UL94
- Mating cycles ≥ 100
- Type
1210 ... 3...
- Product type
Sensor/actuator cable
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M12 plug, straight
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
2 m
- Jacket material
TPU
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Thread type connection side
M12
- Coding
A
- Contact material
CuZn
- Contact surface
Gold plated
IP67
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Manufacturer part #
1210 05 302 2m
- Content
1 pc(s)
- RoHS-compliant
Yes
