Name: m-e modern-electronics 100127 Wireless door bell Complete set backlit, incl. address field
Brand: m-e modern-electronics
SKU: 3451029

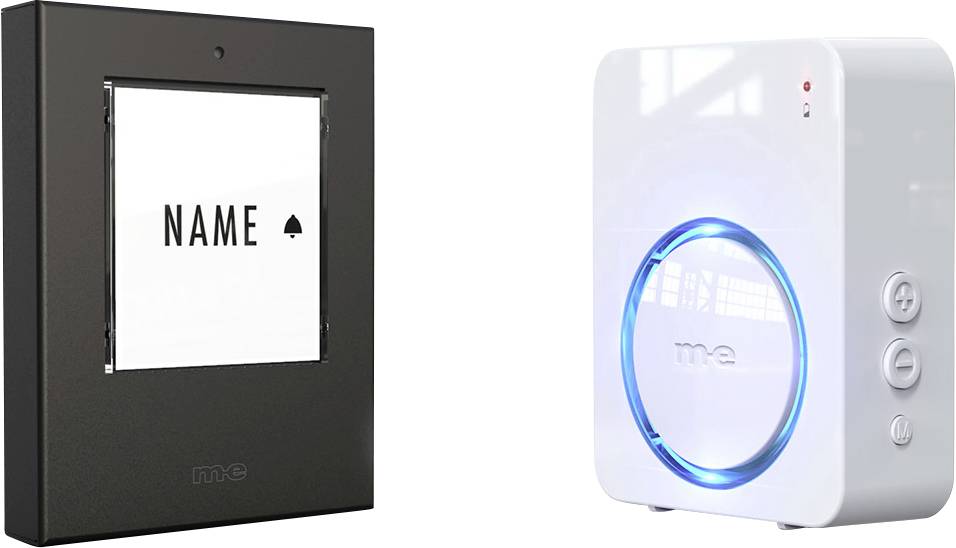

'A two-part doorbell system with a black nameplate display on the left and a white, illuminated chime unit with buttons on the right.'

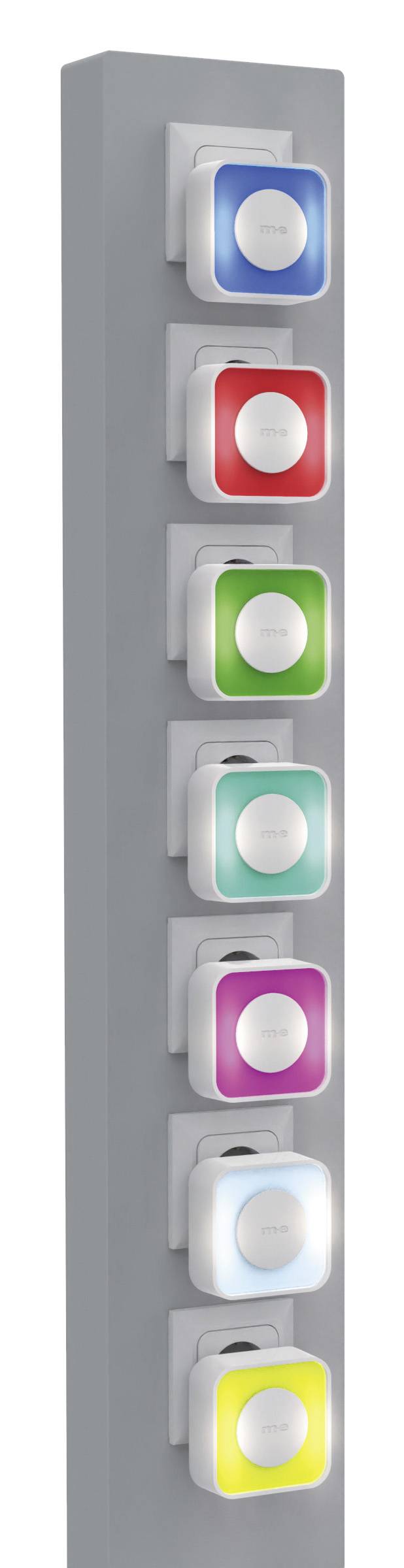

A vertical row of seven square buttons, each glowing a different color: blue, red, green, purple, white, yellow, and light blue, on a gray panel.

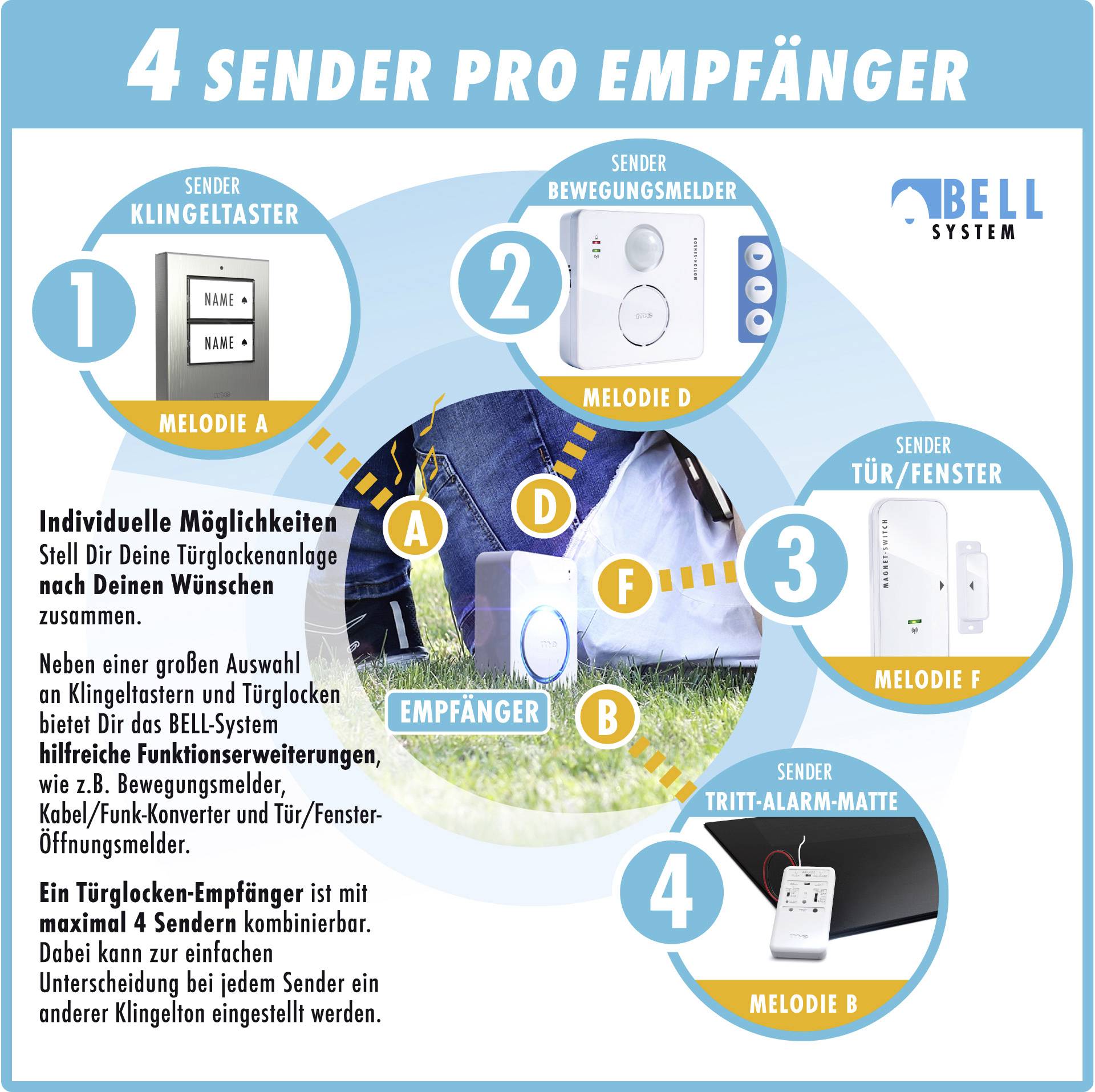

'4 Senders per Recipient' shows a Bell System with doorbell button, motion detector, door/window sensor, and pressure-activated alarm mat.

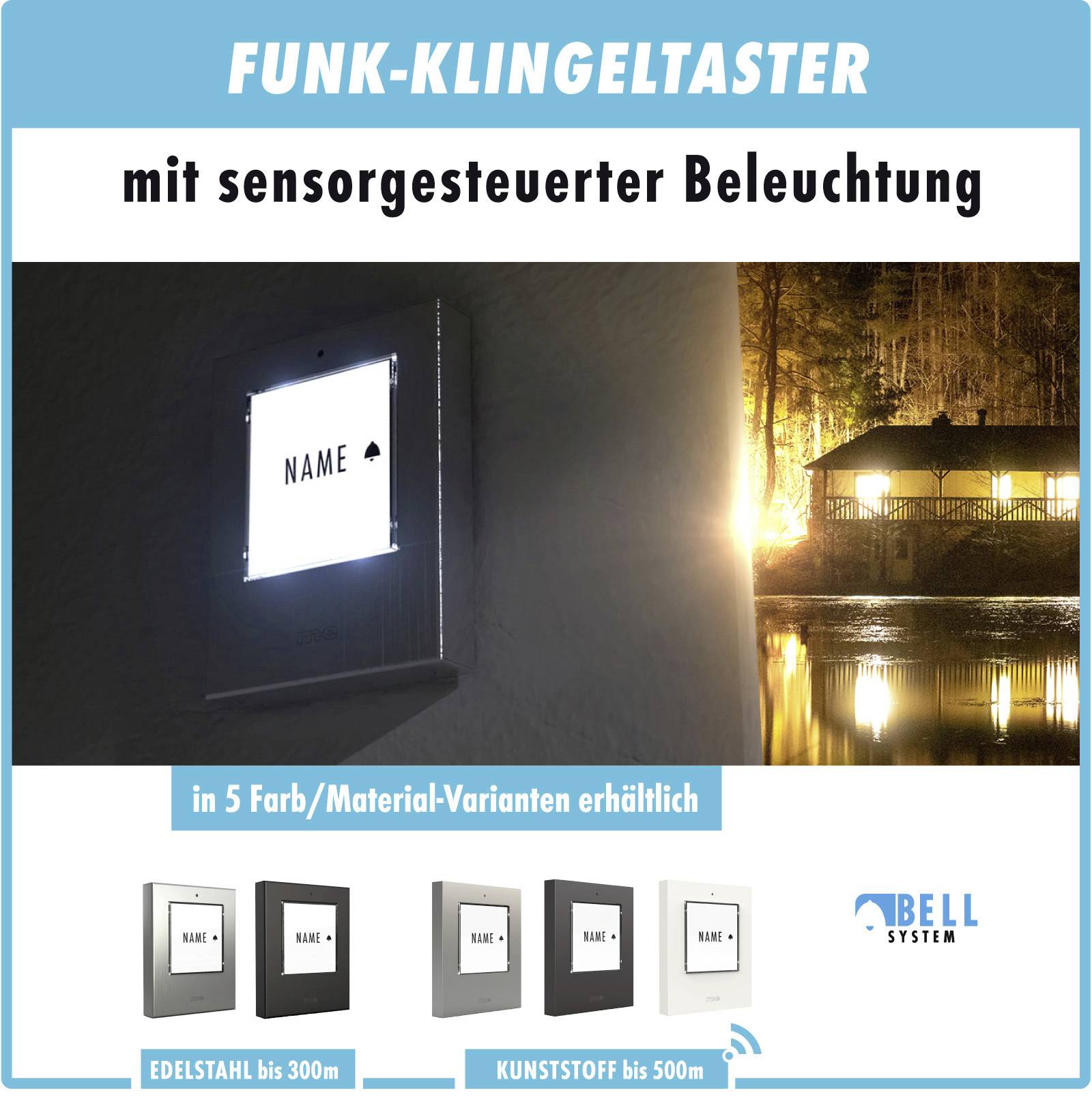

A luminous wireless doorbell button with sensor-controlled lighting, available in five colour and material variants, is displayed.

A man is lying outdoors with a laptop. Next to him is an image of a mobile wireless doorbell with the text: Flexible in use.

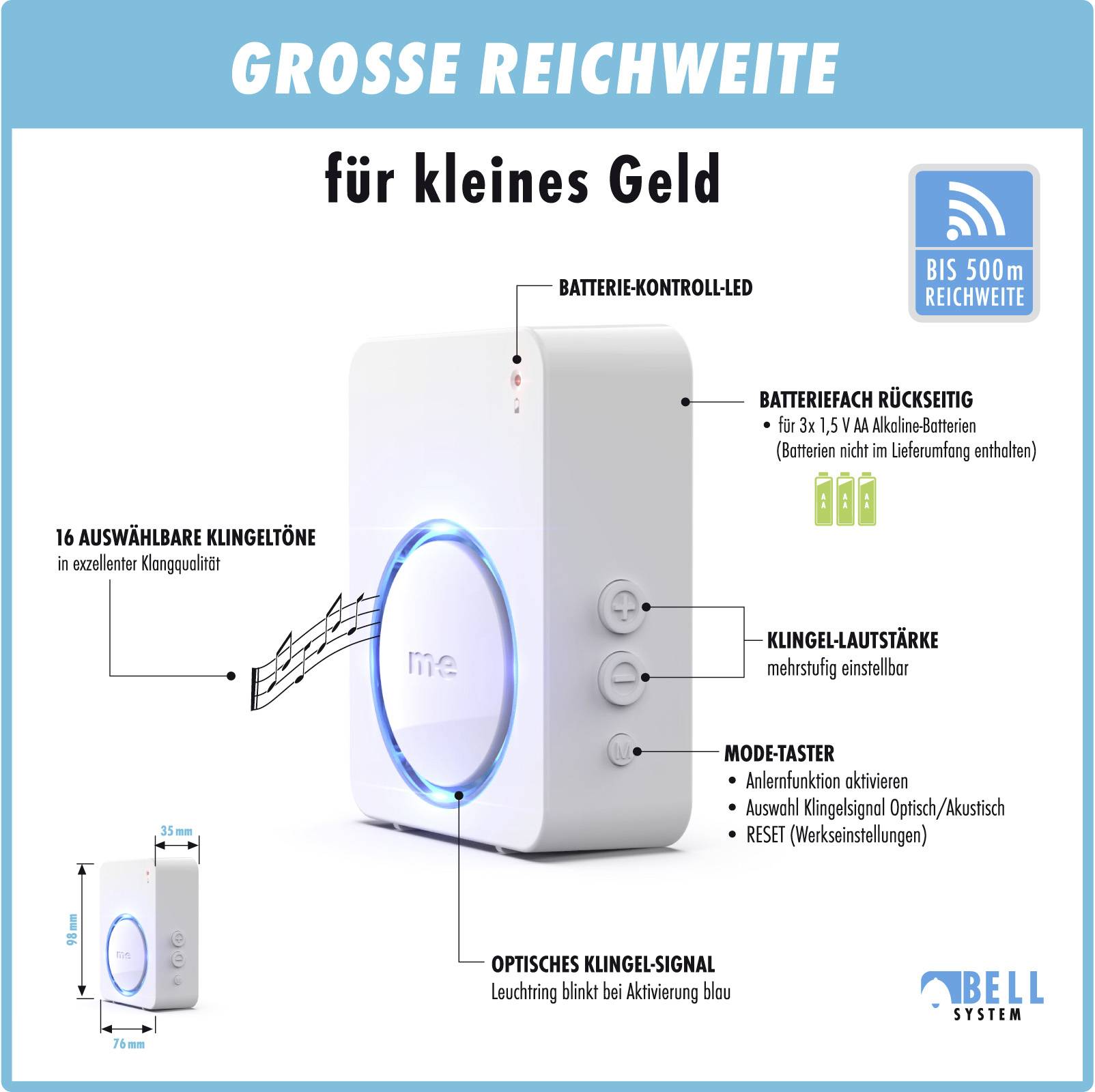

A white doorbell receiver with a blue LED. Functions: 16 chime tones, visual signal, volume control, battery compartment. Range up to 500 m.

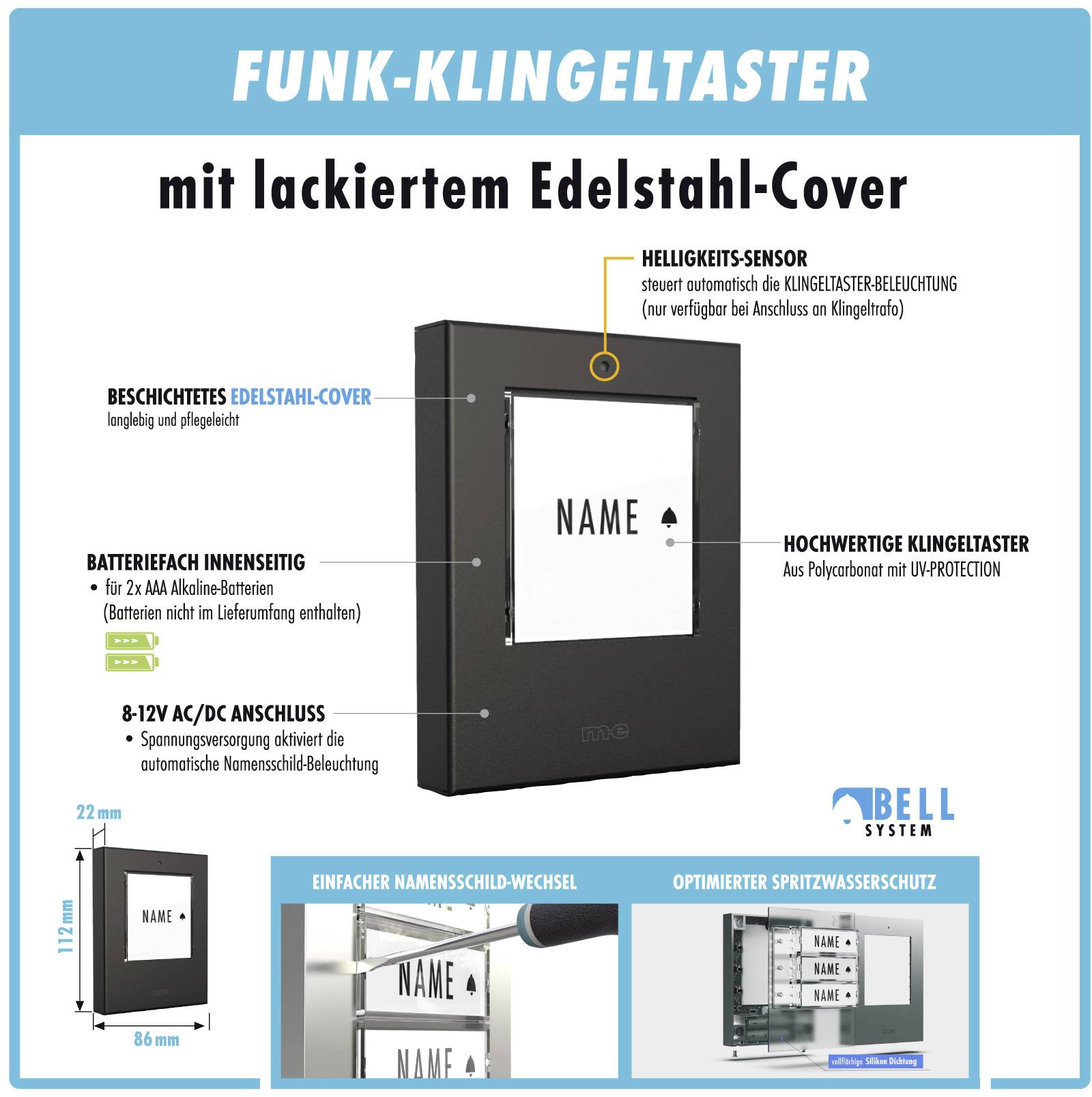

'Wireless Doorbell Push Button with Painted Stainless Steel Cover.' Brightness sensor, battery-operated or 12/18V connection. Easy name plate replacement, enhanced splash protection.

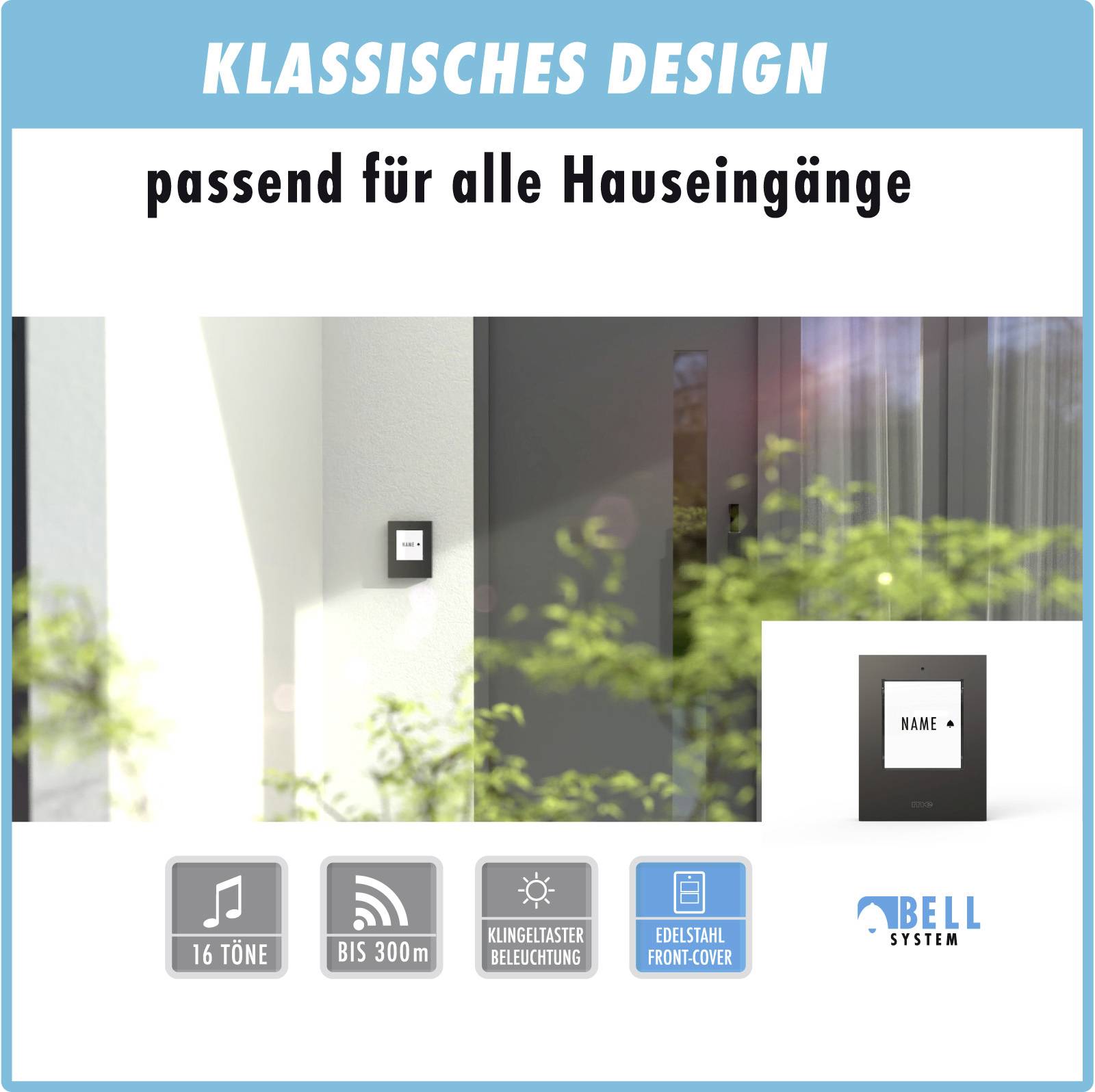

Doorbell system with stainless steel front cover, suitable for all house entrances, featuring 16 chimes, illuminated doorbell button and a range of up to 300 metres.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

M-e BELL BELL-521 BOEA with transmitter and receiver for 1 family house | Expandable wireless doorbell with stainless steel doorbell button and a range of 300 meters

Bell button in the stainless steel housing with light sensor-controlled name plate lighting (only with connection with bell transformer 8-12 V/DC)
Name plate can be changed from outside
Up to 16 melodies can be selected – bell volume can be set in several steps
Optical ring display with green flashing light ring
This text is machine translated.

Technical specifications

Product type: Wireless door bell

Component: Complete set

Doorbell features: backlit
incl. address field

: 300 m

Tunes: 16

Factory colour: White/black

Dim: (W x H x D) 76 x 98 x 35 mm

Width: 76 mm

Height: 98 mm

Depth: 35 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3451029 m-e modern-electronics 100127 Wireless door bell Complete set backlit, incl. address field

Features

Bell power supply: Either with 8-12V DC or 2 x 1.5 V AAA batteries (not included)
Door bell power supply: 3 x 1.5 V AA batteries (not included)

Scope of delivery

1x wireless doorbell button (transmitter)
1x wireless doorbell (receiver)

Hints

The full range of up to 500 meters (free field) as well as all 16 ring tones are available only with the exclusive use of BELL-500 components. In the use of BELL-500 components with transmitters or receivers from the FG or BELL series the wireless range is max. 300 meters and only 8 melodies are available.
