m-e modern-electronics ADV-10101 AW Door intercom Corded Complete kit Anthracite, White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Audio-DOOR INTERCOM ADV-10101 AW 1-FAMILY WITH ALU-OUTDOOR STATION ANTHRACITE/WHITE
- Outer casing made of aluminum Light sensor-controlled doorbell button illuminationOptical or acoustic bell confirmation
Technical specifications
- Product type
Door intercom
- Component
Complete kit
- Units
1
- Features
Backlit nameplate
- Transfer type
Corded
- Mounting type (interior)
Surface-mount
- Mounting type (outdoor)
Surface-mount
- Material (external)
Aluminium
- Factory colour
Anthracite
White
- Power supply (LOV)
mains-powered
- Max. cable length
100 m
- Tunes
16
- Dimensions (built-in device)
88 x 200 x 21 mm
- External unit dims.
114 x 114 x 30 mm
Documents & Downloads
Datasheet
Datasheet 2614218 m-e modern-electronics ADV-10101 AW Door intercom Corded Complete kit Anthracite, White
Datasheet 2614218 m-e modern-electronics ADV-10101 AW Door intercom Corded Complete kit Anthracite, White
User & Safety Instructions
User & Safety Instructions 2614218 m-e modern-electronics ADV-10101 AW Door intercom Corded Complete kit Anthracite, White
User & Safety Instructions 2614218 m-e modern-electronics ADV-10101 AW Door intercom Corded Complete kit Anthracite, White
Description
Promo-Complete set from external station ADV-1010 A, indoor station ADV-100 WW and plug power supply ST-1000.The VISTADOOR system can be extended to up to 3 outdoor units as well as up to 4 indoor units per unit. Compatible with all components from the Vistadoor and Vistus series as well as FROM THE BELL system and the FG series from m-e.
This text is machine translated.
This text is machine translated.
Features

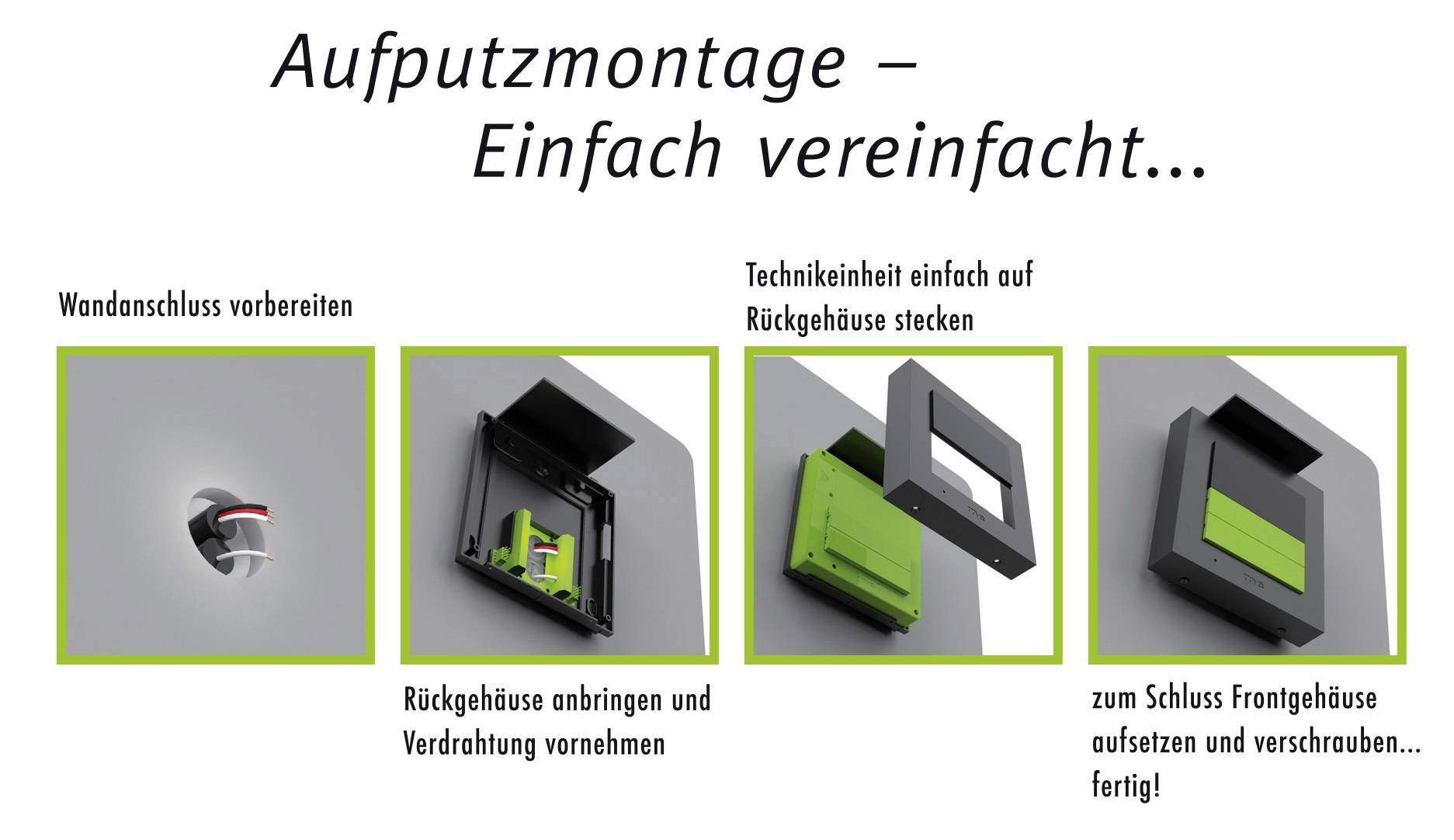

- Weather-protected according to IP44Simple mounting through modular plug systemInstallation height only 30 mm (+ protective roof)Complete outer casing made of aluminum with high-quality matt coating in anthraciteLight sensor-controlled, uniform doorbell button illuminationLight sensor-controlled LED downlight as orientation light (can be switched off manually)Optical or acoustic bell confirmationIntegrated radio module for the integration of wireless door bells from THE BELL or FG series from m-e.Receiver free hands-free system16 ring tones can be selectedAlternatively, individual ringtones in mp3 format via micro SD card (not included)IDLE button with reminder LED switches off the ring tone (e.g. at midday silence)Door opening functionIndoor station for surface mounting - mounting height only 22 mmConnection for floor bell button with separate ring tone for distinguishing the doorsConnection for wireless module VTX-Bell for the integration of wireless door bells.
Scope of delivery
- 1 x Audio outdoor unit ADV-1010 with weather protection roof
- 1 x Audio indoor unit ADV-100 WW
- 1 x plug power supply ST-1000.
System requirements
- You need a min. 3-core cable (max. cable length 100 m).
