Name: Magswitch 8100012 MagSwitch Mag-Utility Hook 25 - 8100012 #####Haltemagnet
Brand: Magswitch
SKU: 3476857

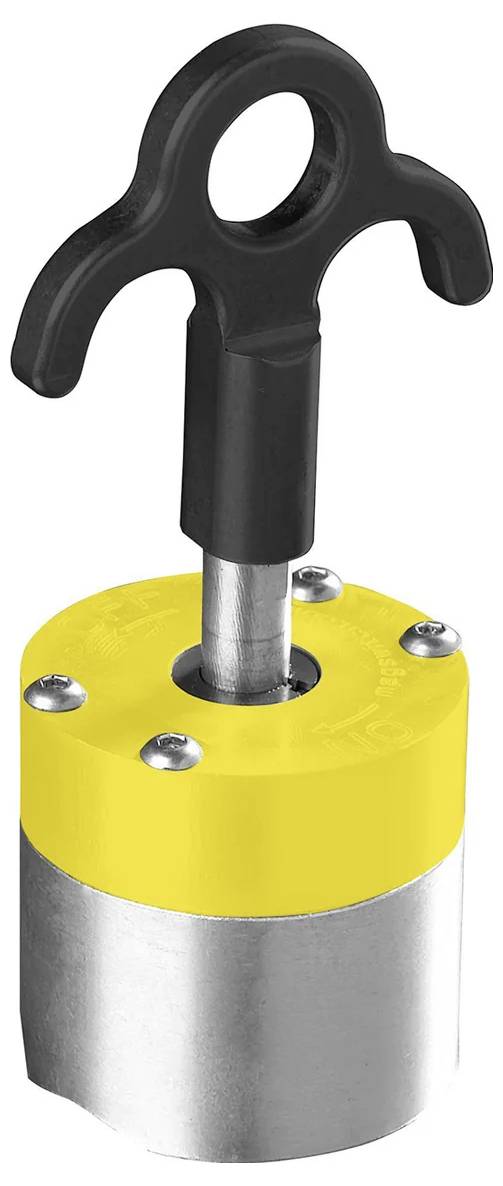

'A yellow and black magnetic lifter tool with a handle for lifting heavy metal objects.'

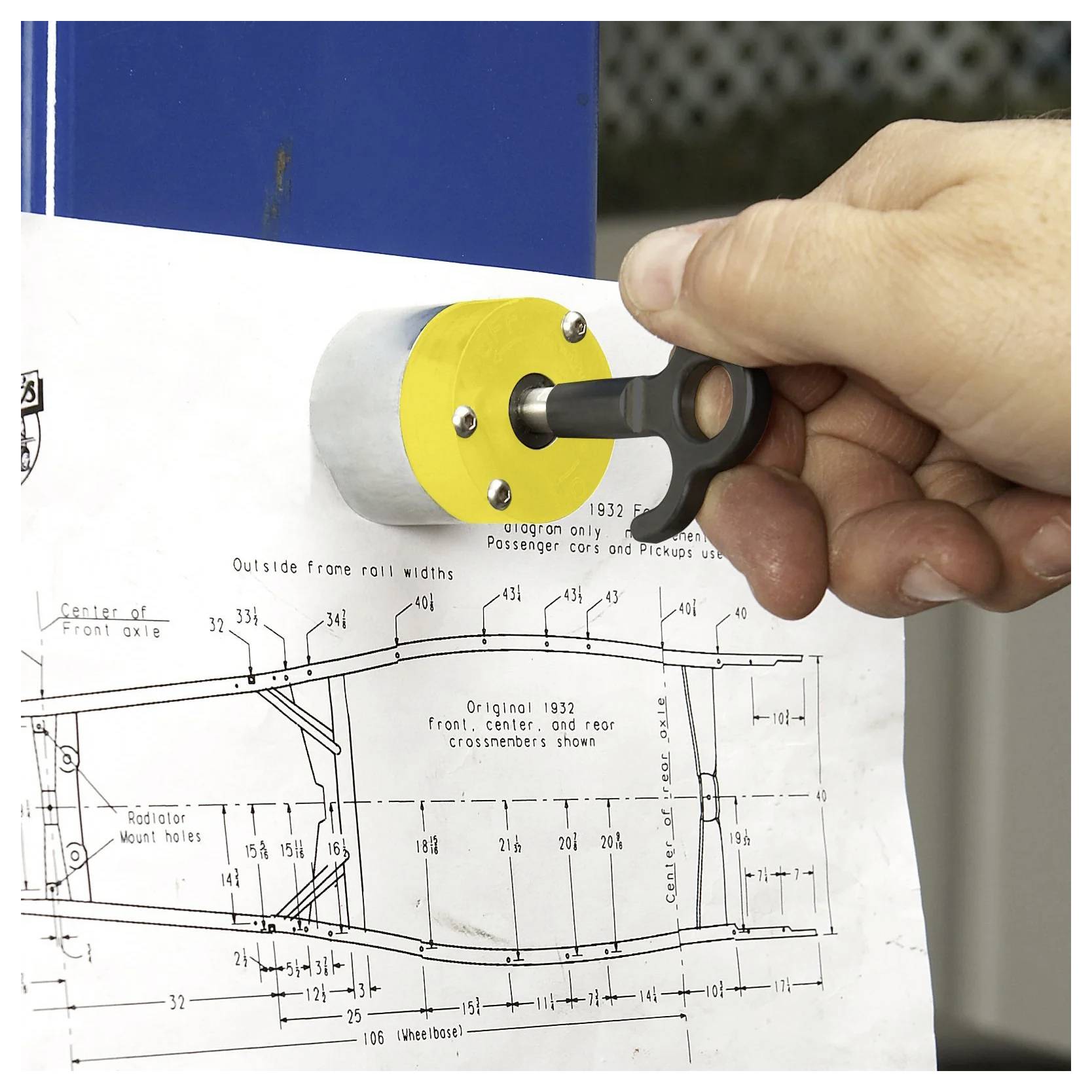

A hand uses a black key with a yellow holder to pin a technical blueprint diagram of a vehicle undercarriage to a blue metal surface.

A person wearing a blue glove uses a wrench to tighten a bolt on a car tire secured with safety supports in an automotive workshop.

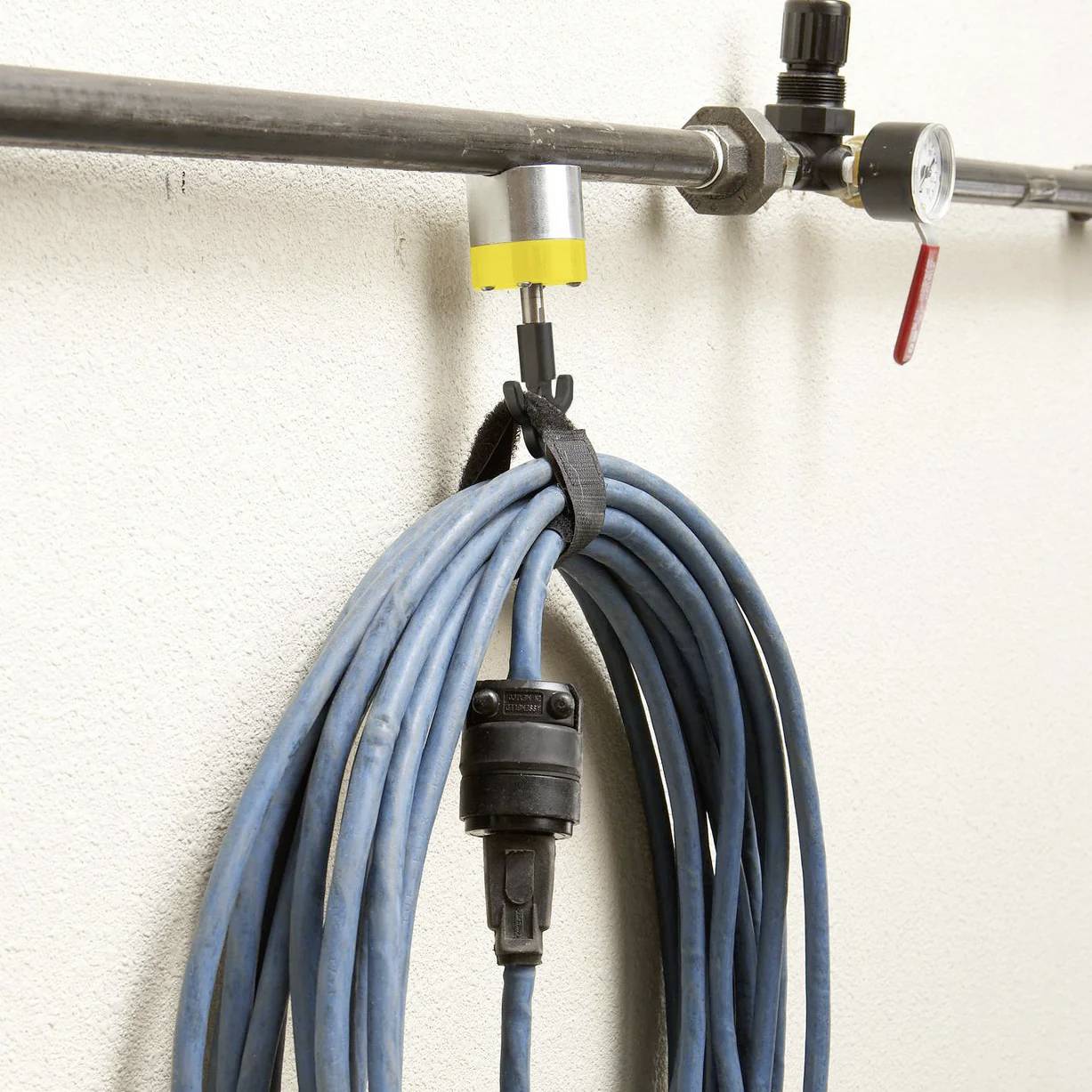

A blue hose coiled and hung on a wall-mounted hook, beneath a pipe with a pressure gauge and valve.

1/4

Our service for you

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MagSwitch Mag-Utility Hook 25 - 8100012

Magnetic hook, 52 kg holding force, mechanical switch, lockable handle

Technical specifications

Product weight: 0.4 kg
Dimensions 1.9 x 1.6 x 3.5 in (48.2 x 40.6 x 88.9 mm)
Maximum breakthrough: 115 lbs (52.1 kg) to 1/2 '' steel
2: 1 shear load: 20 kg
Full saturation thickness 11 g (3.05 mm)
40 mm diameter of magnetic pole base

Product type: #####Haltemagnet

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476857 Magswitch 8100012 MagSwitch Mag-Utility Hook 25 - 8100012 #####Haltemagnet

Description

Organise your work place with our magnetic hook, where you can hang tools, lamps, wires, cables and more. By turning the handle you get 52 kg magnetic holding force. FEATURES & BENEFITS: The magnetic field is turned on and off completely mechanically. Requires no power supply. The magnet remains clean. Attachment to flat and round steel surfaces. Locking grip for more security. Lightweight and reliable. The maximum holding weight is 25 lbs on steel with 0.25 inches or more. SPECIFICATIONS Max. Breaking load: 115 lbs (52.1 kg) to 1/1.6' steel Full saturation thickness: 11 g (3.05 mm) 2:1 shear working load: 0.2 lbs (1.9 kg) Product weight: 0.4 lbs (20 kg) Dimensions: 9 x 2 x 3.5 in (48.2 x 40.6 x 88.9 mm) Magnetic pole base area: 40 mm diameter.

This text is machine translated.
