Name: Magswitch 8100106 MagSwitch MagSquare 600 - 8100106 #####Magnetische Spannvorrichtung
Brand: Magswitch
SKU: 3476871

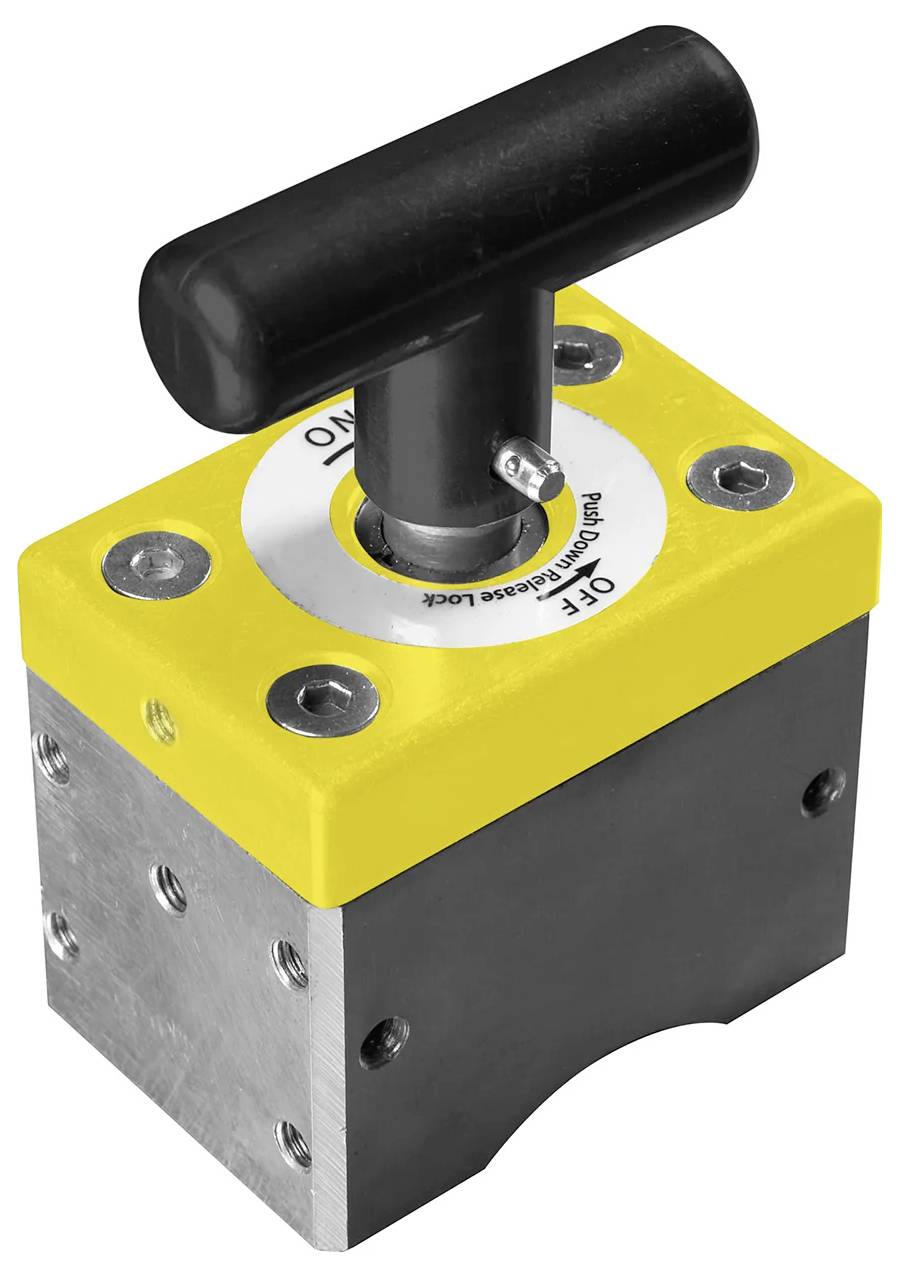

A rectangular metal block with a yellow top and a black T-shaped handle. The handle is labeled 'ON' and 'OFF'.

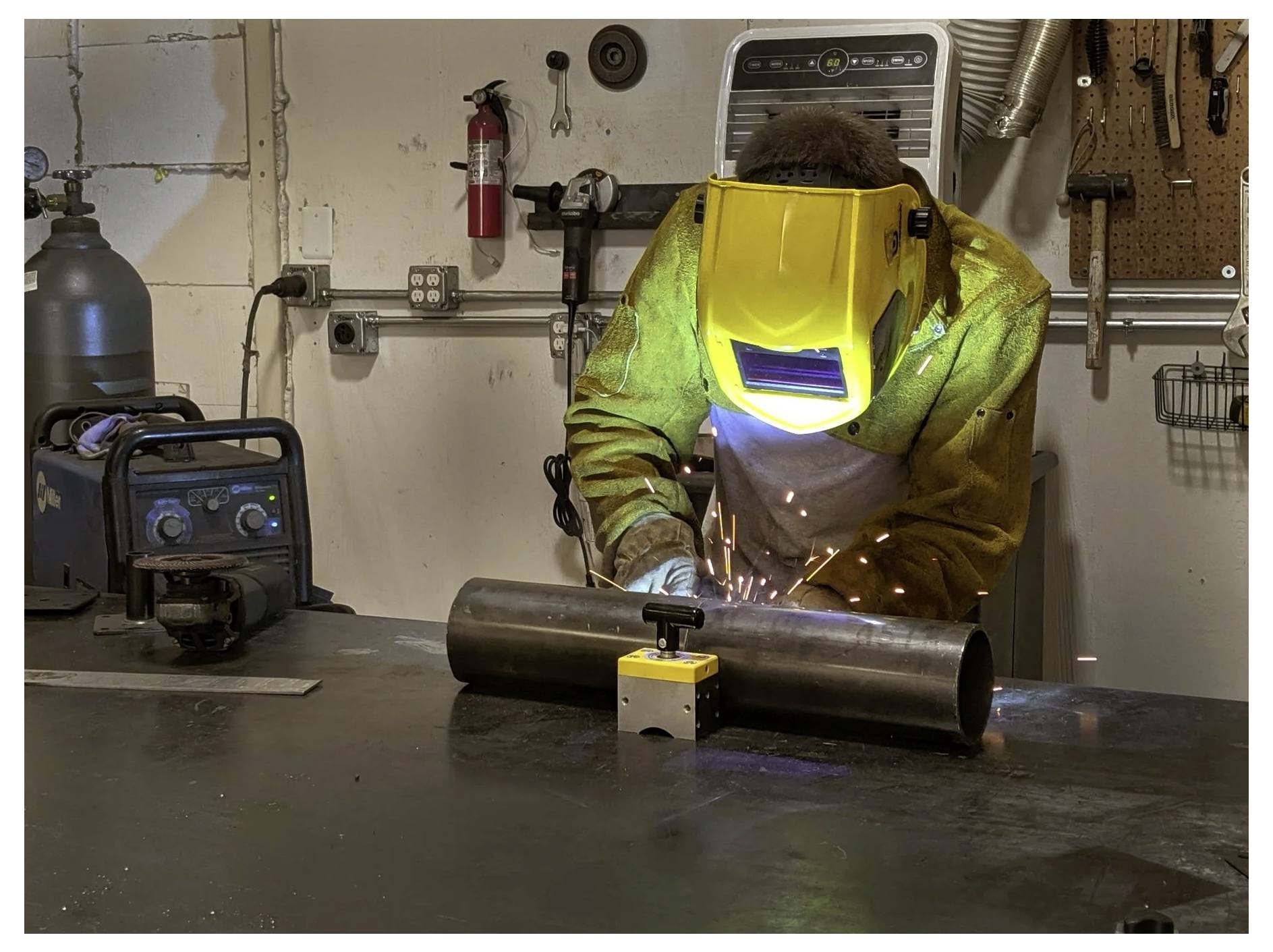

A welder wearing protective gear and a yellow helmet works on a metal pipe in a workshop, with welding sparks visible.

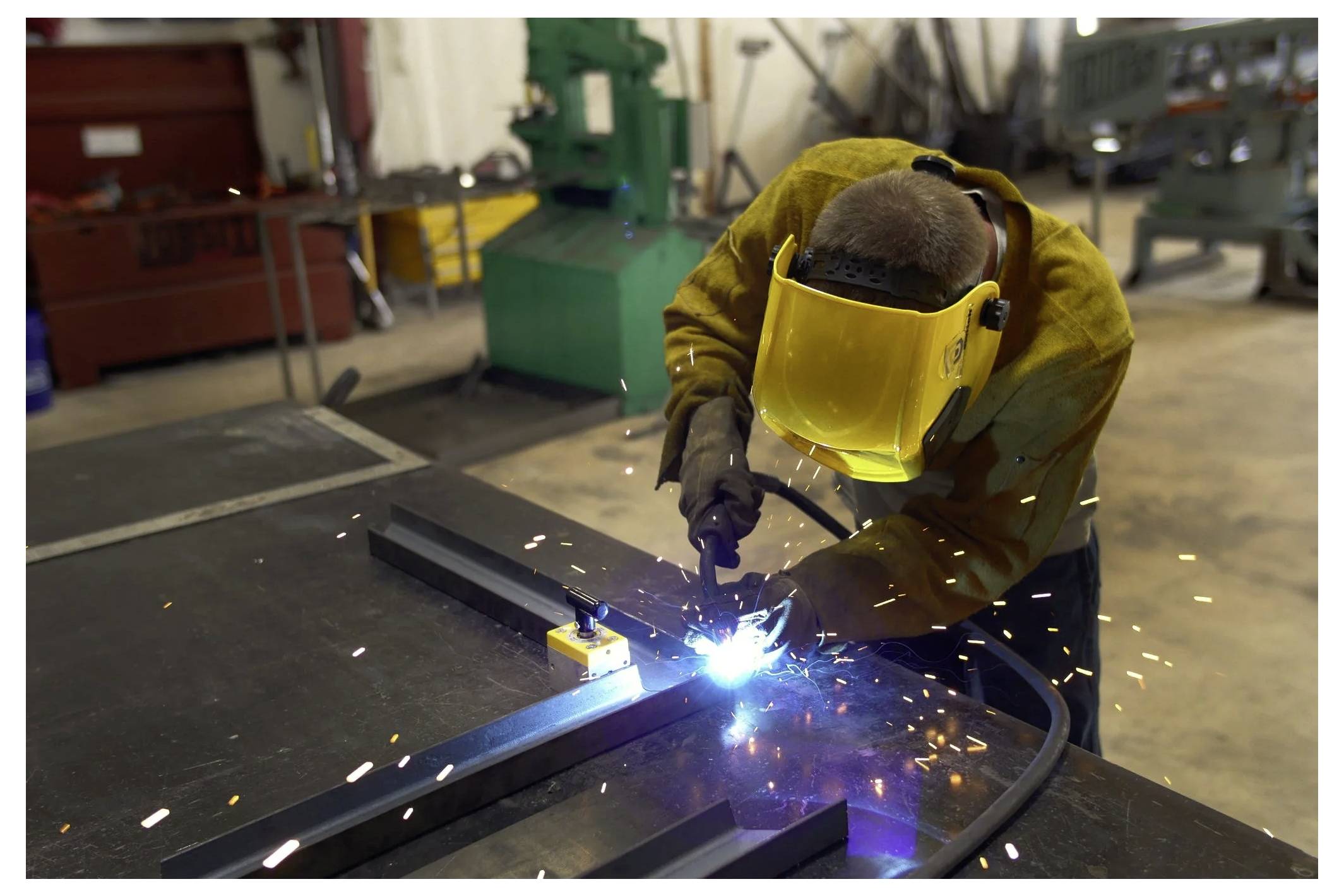

A person welding metal in a workshop, wearing protective gear including a yellow face shield; sparks fly as they work.

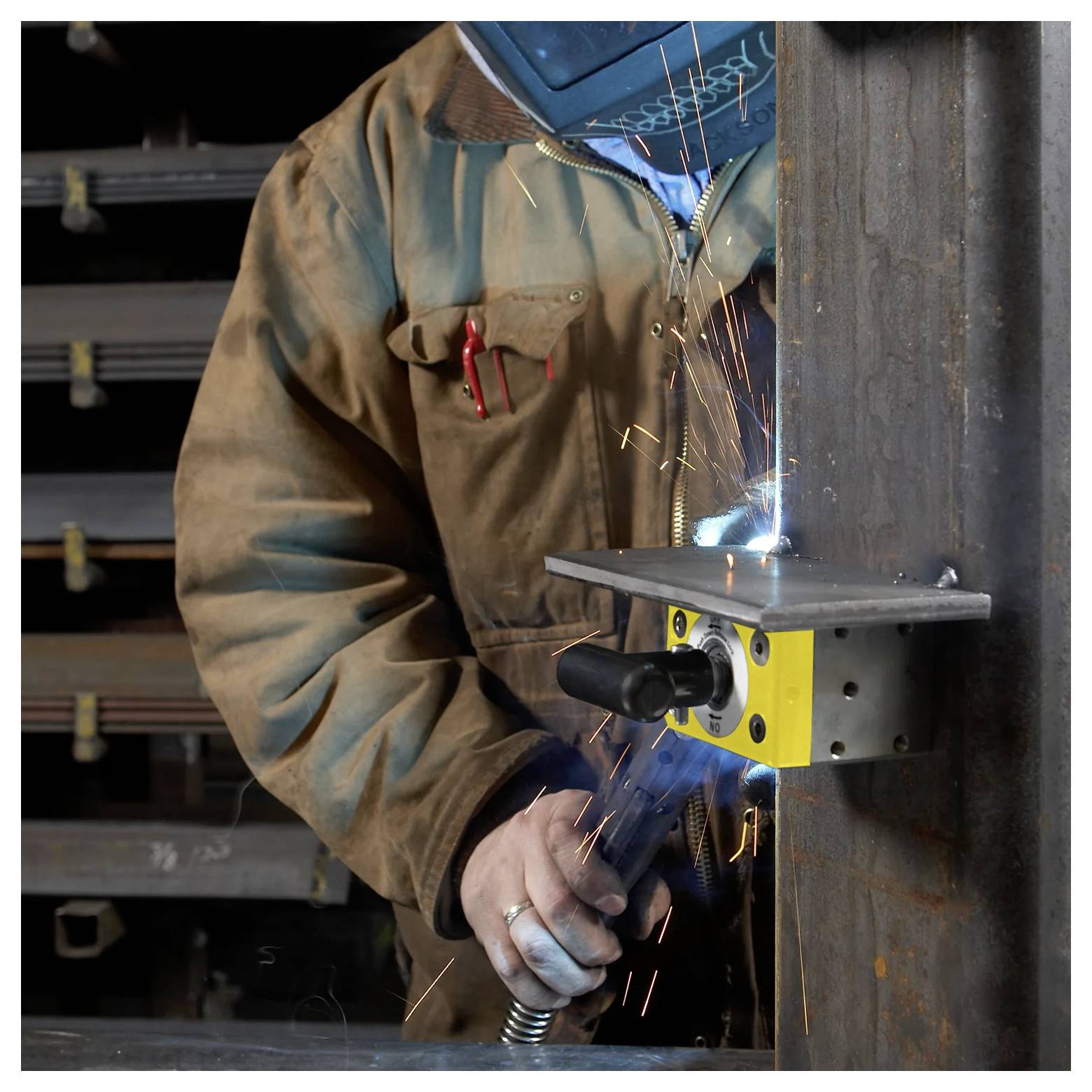

A welder in protective gear works on a steel beam, creating sparks. Shelves with metal beams are visible in the background.

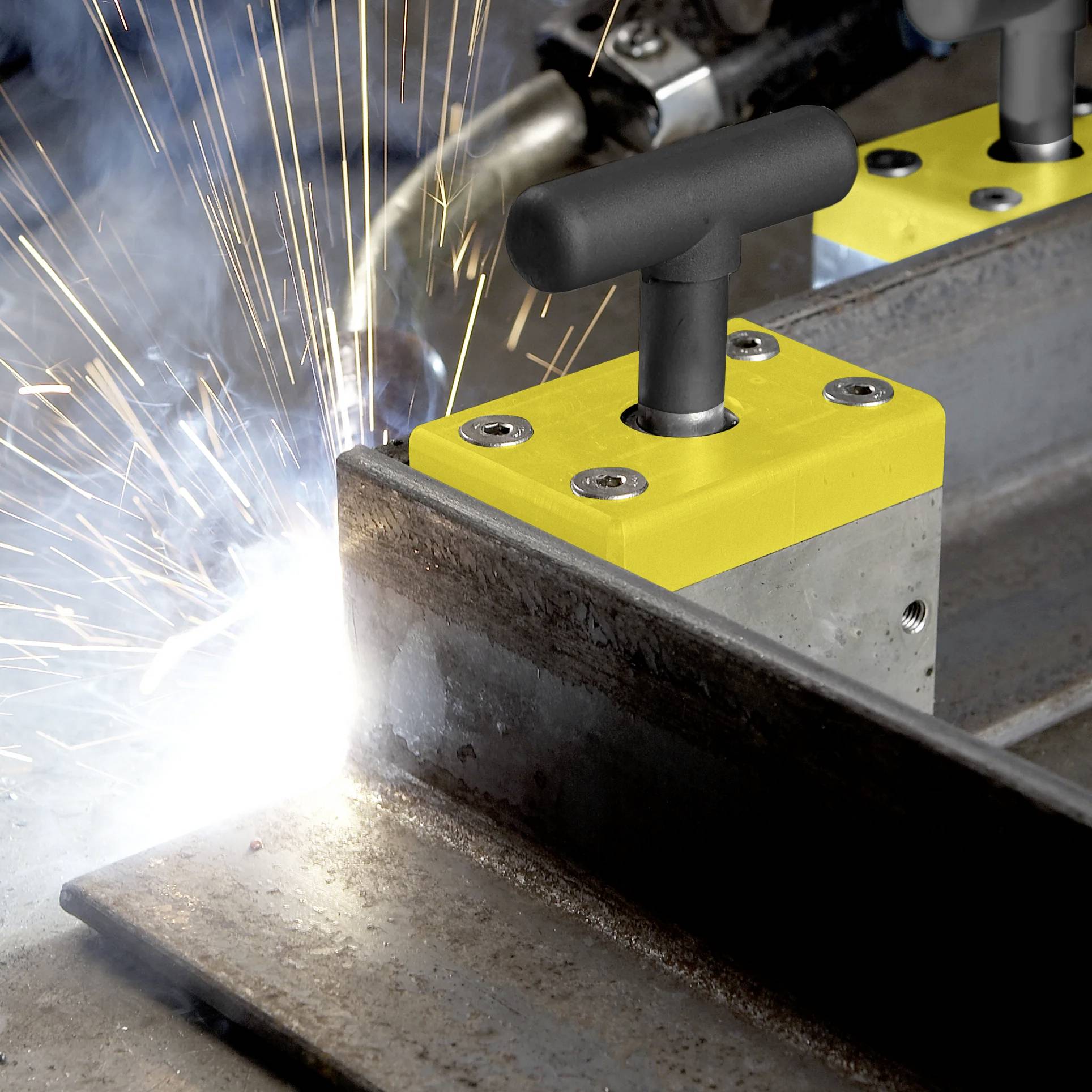

Close-up of a welder using a magnetic clamp to hold metal pieces together, with bright sparks flying as the welding torch is applied.

1/5

Our service for you

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MagSwitch MagSquare 600 - 8100106

Versatile, 275.3 kg holding force, flat/round steel surfaces, pre-drilled holes

Technical specifications

Product weight: 3 lbs / 1.36 kg
Dimensions 3 x 2 x 4.1 mm (76.2 x 50.8 x 104.1 in)
2: 1 shear load: 61 kg
Full saturation thickness: 3/8 '' / 10 mm
Magnetic base area 75 x 51.5 mm
Max Breakaway - 607 kg

Product type: #####Magnetische Spannvorrichtung

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476871 Magswitch 8100106 MagSwitch MagSquare 600 - 8100106 #####Magnetische Spannvorrichtung

Description

The most versatile clamping and device tool of all times! Align flat or round steel pieces and secure them to create angles. Pull corners, fasten steel for cutting, use it as a guide, build your own fixtures and much more! Turn the knob to control the 284 kg magnetic holding force. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. The magnet remains clean. Requires no power supply. Holds flat and round steel surfaces. Multi-surface magnet grip on five sides. Processed at 90 degree angle. Pre-drilled holes on four sides for mounting. SPECIFICATIONS Max. Breakaway force: 607 lbs / 275.3 kg thickness at full saturation: 51.5/4.1' / 76.2 mm 2:1 shear load: 61 lbs / 27.66 kg Product weight: 3 lbs / 1.36 kg Dimensions: 3 x 2 x 8 in / 10 x 50.8 x 104.1 mm magnetic pole base: 75 mm x 3 mm.

This text is machine translated.
