Name: Magswitch 8100238 MagSwitch MagSquare 400 - 8100238 #####Magnetische Spannvorrichtung
Brand: Magswitch
SKU: 3476870

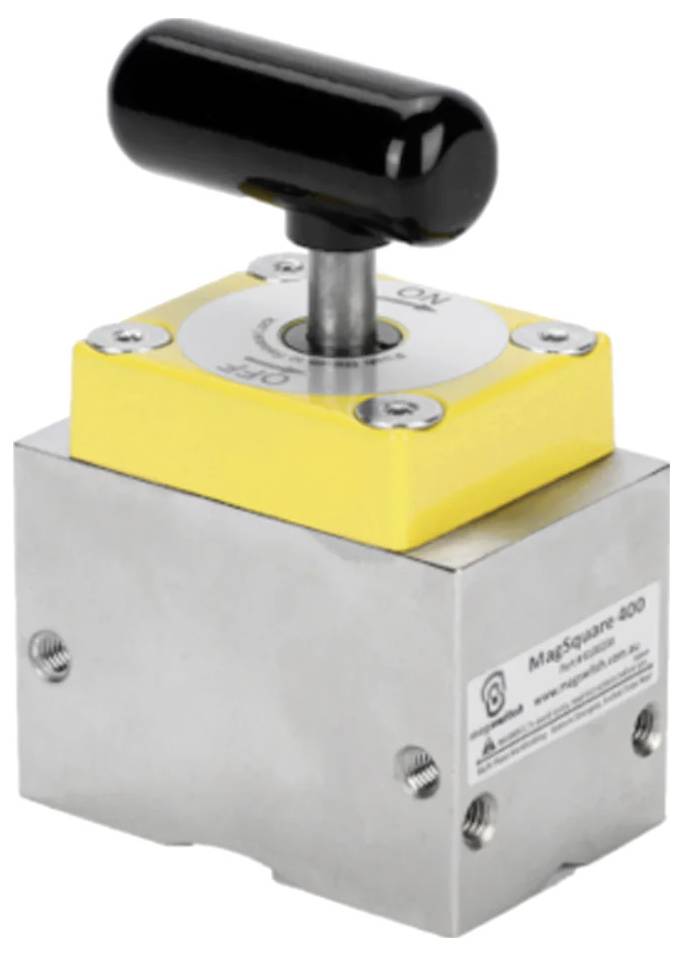

A gray and yellow industrial switch with a black T-shaped handle, showing 'ON' and 'OFF' positions.

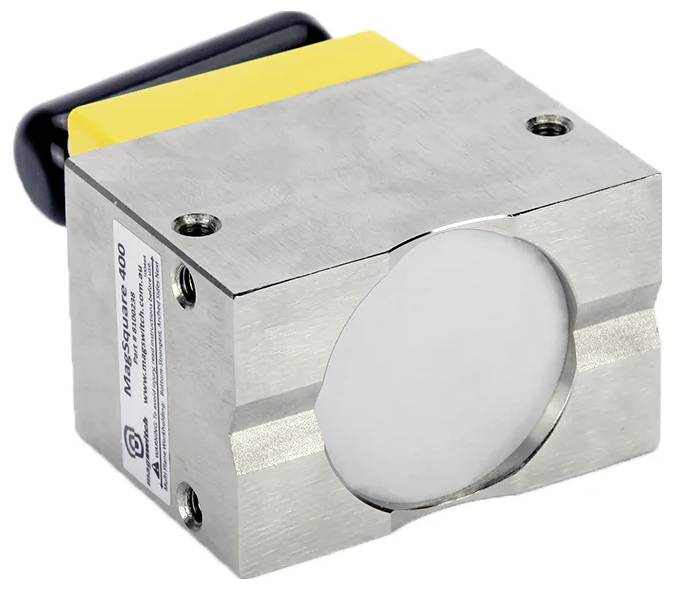

A rectangular metallic block with a circular indentation on one side, featuring a label marked 'MaxSquare 400' and a black handle attached.

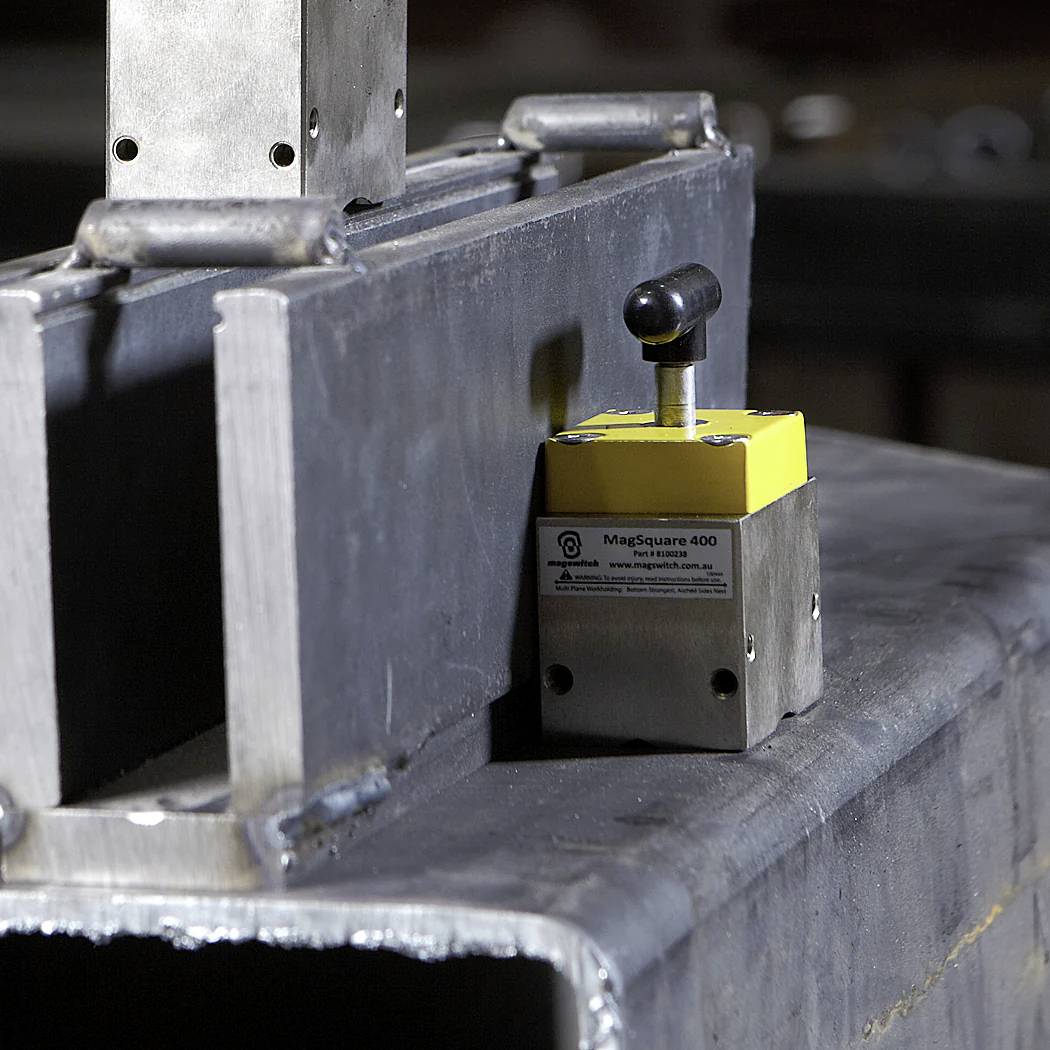

A yellow MagSquare 400 metal clamp holds steel beams together, suggesting industrial assembly or construction work.

1/3

Our service for you

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MagSwitch MagSquare 400 - 8100238

Versatile, 181 kg holding force, flat/round steel surfaces, pre-drilled holes

Technical specifications

Product weight: 2 kg
Dimensions 2.5 x 3.6 x 1.6 in (63.5 x 91.4 x 40.6 mm)
2: 1 shear load: 40 kg
Full saturation thickness 0.25 mm (6.35 in)
Magnetic base area 64 x 41.26 mm
Max Breakaway - 399 kg

Product type: #####Magnetische Spannvorrichtung

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476870 Magswitch 8100238 MagSwitch MagSquare 400 - 8100238 #####Magnetische Spannvorrichtung

Description

The most versatile clamping and device tool of all times! Align flat or round steel pieces and secure them to create angles. Pull corners, fasten steel for cutting, use it as a guide, build your own fixtures and much more! Turn the knob to control the 170 kg magnetic holding force. FEATURES AND ADVANTAGES: The magnetic field is turned on and off completely mechanically. The magnet remains clean. Requires no power supply. Holds flat and round steel surfaces. Multi-surface magnet grip on five sides. Processed at 90 degree angle. Pre-drilled holes on four sides for mounting. SPECIFICATIONS Max. Breakaway force: 399 lbs (181 kg) Full Saturation Thickness: 0.25 in. (63.5 mm) 2:1 shear workload: 40 lbs (18.1 kg) Product weight: 3.6 lbs (0.9 kg) Dimensions: 2.5 x 2 x 1.6 in. (6.35 x 91.4 x 40.6 mm) Magnetic pole base: 64 mm x 41.26 mm.

This text is machine translated.
