Name: Magswitch 8100818 MagSwitch MagJig 60 - 8100818 #####Magnetische Vorrichtungsklemme
Brand: Magswitch
SKU: 3476861

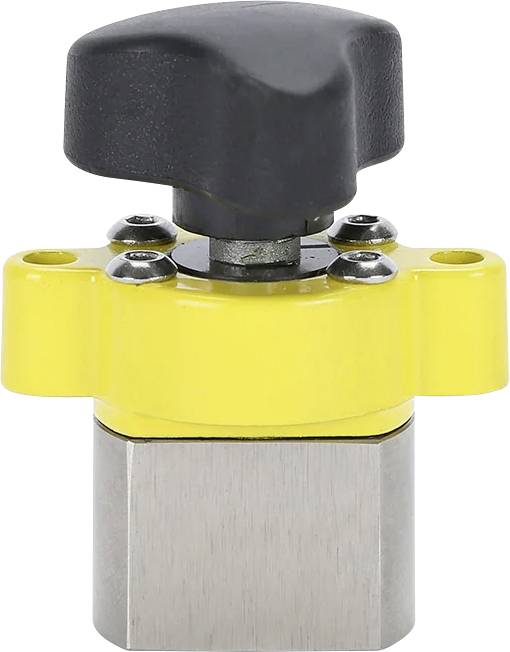

'A yellow and silver industrial valve with a black handle.'

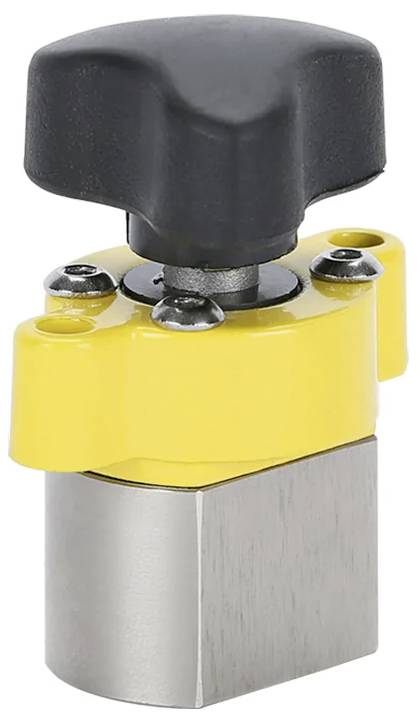

Yellow and black toggle clamp with a square metal base, commonly used for securing materials in woodworking or metalworking tasks.

1/2

Our service for you

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MagSwitch MagJig 60 - 8100818

Magnetic device clamp, 25 kg holding force, mechanical switching, screw holes

Technical specifications

Product weight: 0.2 kg
Dimensions 1.6 x 1.1 x 1.7 in (152.4 x 27.9 x 43.1 mm)
2: 1 shear load: 6 kg
Magnetic base area 56 x 16 mm
Max Breakaway - 55 kg

Product type: #####Magnetische Vorrichtungsklemme

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476861 Magswitch 8100818 MagSwitch MagJig 60 - 8100818 #####Magnetische Vorrichtungsklemme

Description

Our magnetic fixing clips secure your device. Turn the knob to switch the 25 kg magnetic holding force on and off. Simply drill a hole in the fixture and insert the MagJig to clamp it with downward pressure. FEATURES & BENEFITS: The magnetic field is turned on and off completely mechanically. Requires no power supply. The magnet remains clean. Holds flat and round steel surfaces. 19 mm spacer for flush mounting. With screw holes for greater safety in the device. Ideally suited for wood working, welding and manufacturing. SPECIFICATIONS Max. Breakaway force: 55 lbs (24.9 kg) 2:1 shear load: 6 lbs (2.7 kg) Product weight: 0.2 lb (0.1 kg) Dimensions: 1.6 x 1.1 x 1.7 in (152.4 x 27.9 x 43.1 mm) Magnetic pole base: 56 mm x 16 mm.

This text is machine translated.
