Image similar

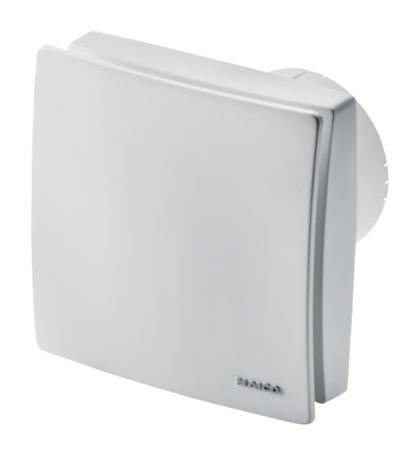

Maico Ventilatoren ECA 100 ipro KF Wall and ceiling fan 230 V 92 m³/h 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Product type
Wall and ceiling fan
- Nominal voltage
230 V
- Air flow rate
92 m³/h
- Suitable for pipe Ø
100 mm
- Ventilation features
Timer
With time-delay relay
Automatic deflector blades
Sensor
Adjustable
IPX5
- Factory colour
White
- Material
Plastic
- Dim
(Ø) 100 mm
- Weight
0.70
- (Ø)
100 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2575885 Maico Ventilatoren ECA 100 ipro KF Wall and ceiling fan 230 V 92 m³/h 100 mm
Description
Design with light control: Barrier-free product, since automatic on/off via light sensor. All 4 operating programs can be selected. The order of the power stages is determined by the selected operating program. Operation only possible in dark rooms. The light control switches the fan on at a minimum brightness in the room, e.g. when a lamp is switched on. Switch-on brightness (on the device) min. 30 Lux. Switch-off brightness (on the device) max. 1.7 Lux. No need to install a switch. Switch-on delay adjustable via easily accessible button: 0/50/90/120 sec. Follow-up time can be set in stages via easily accessible buttons: 0/8/17/25 min. Set time is indicated by the LED´s during the setting. Covered suction, with electrically operated inner closure. Not speed-controllable. Operating programs, adjustable via jumpers in the device. Comfort program (pre-set), user present: Level 1, follow-up time: Level 2, night program, user present: Level 2, follow-up time: Level 1, saver program, user present: Level 1, follow-up time: Level 1, power program, user present: Level 2, follow-up time: Level 2, intelligent programd small room fan for the highest demands. 2 performance levels Covered suction by design cover. For venting. VDE-GS mark, exception: ECA 100 ipro RC/RCH. VDE-MARK: ECA 100 RC/RCH. Protection class IP X5 for safety in the bathroom. II proctection rating. Suitable for continuous operation. Thermal overload protection. Color traffic white similar to RAL 9016. Housing made of impact-resistant plastic. Motor: Energy-saving, robust motor with ball bearing, maintenance-free. Suitable for continuous operation. Mounting instructions: Easy installation, since cover can be removed easily with tools. Wall and ceiling mounting is possible Compatible with ECA predecessor models DN 100, since mounting holes and cable entry flush-mounted in the same place. Electrical connection: Electrical connection flush-mounted. Safety instructions: All ECA
This text is machine translated.
This text is machine translated.
