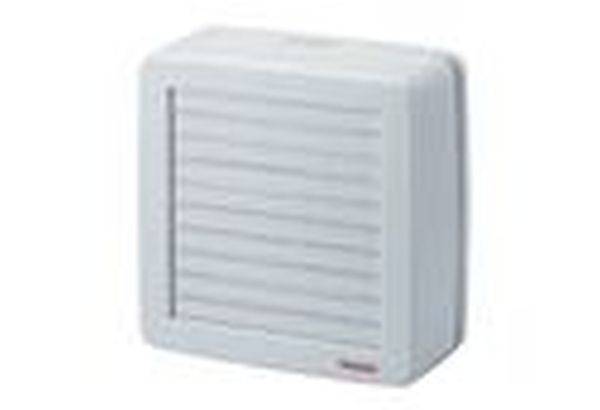

Maico Ventilatoren Maico Wall and window fan 1400 m³/h 315 mm

For the installation in windows or thin walls. Depth of outer part only 23 mm. This does not hinder roller shutters or blinds. Low noise plastic impeller. Fan maintenance-free. Protection class IP 20, not suitable for wet rooms. Motor: Standard thermal overload protection. Switches off the motor in the case of thermal overload and automatically switches it on again after cooling down. Robust motor with ball-bearing, maintenance-free. Suitable for continuous operation. Mounting instructions: Easy installation. Attached with the screws supplied. Also suitable for thicker discs or walls, and thus provide suitable mounting material from the customer. Glass thickness EV 31 = 4-20 mm, EVR 31 = 4-20 mm, EVH 31 = 6-20 mm. Electrical connection: At terminal strip in housing. Safety instructions: Touch protection on the inside and outside according to DIN EN ISO 13857.Article: EVR 31, discharge volume: 1400 m3/h, speed: 1410 1/min, impeller type: Axial, air direction: Ventilation, direction of rotation: Yes, voltage type: Alternating current, rated voltage: 230 V, mains frequency: 50 Hz, Rated power:110 W, power consumption:120 W, inner: 0.6 A, IMAX: 0.6 A, protection class IP 20, Mains cable: 5/1.5 mm2, place of installation: window, material: plastic, color: white traffic, similar to RAL 9016, Weight: 6.8 kg, weight with packing: 7.92 kg, type of flap: electrical, nominal width: 315 mm, width: 410 mm, height: 410 mm, Depth: 153 mm, width with packaging: 435 mm, height with packaging: 450 mm, depth with packaging: 190 mm, temperature of conveyance at IMAX: 40 °C, sound pressure level: 63 dB(A)
