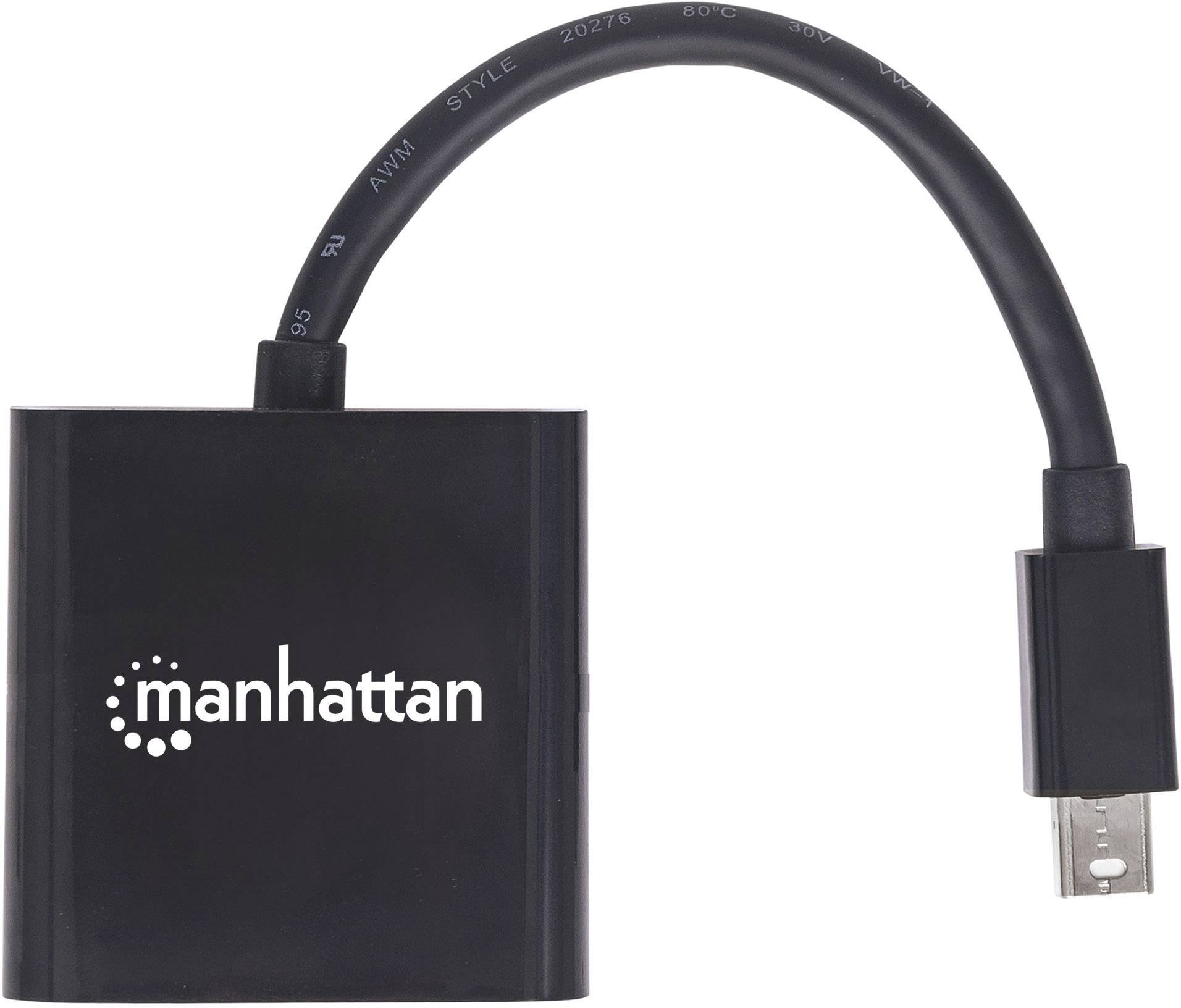

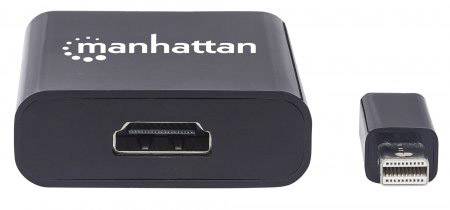

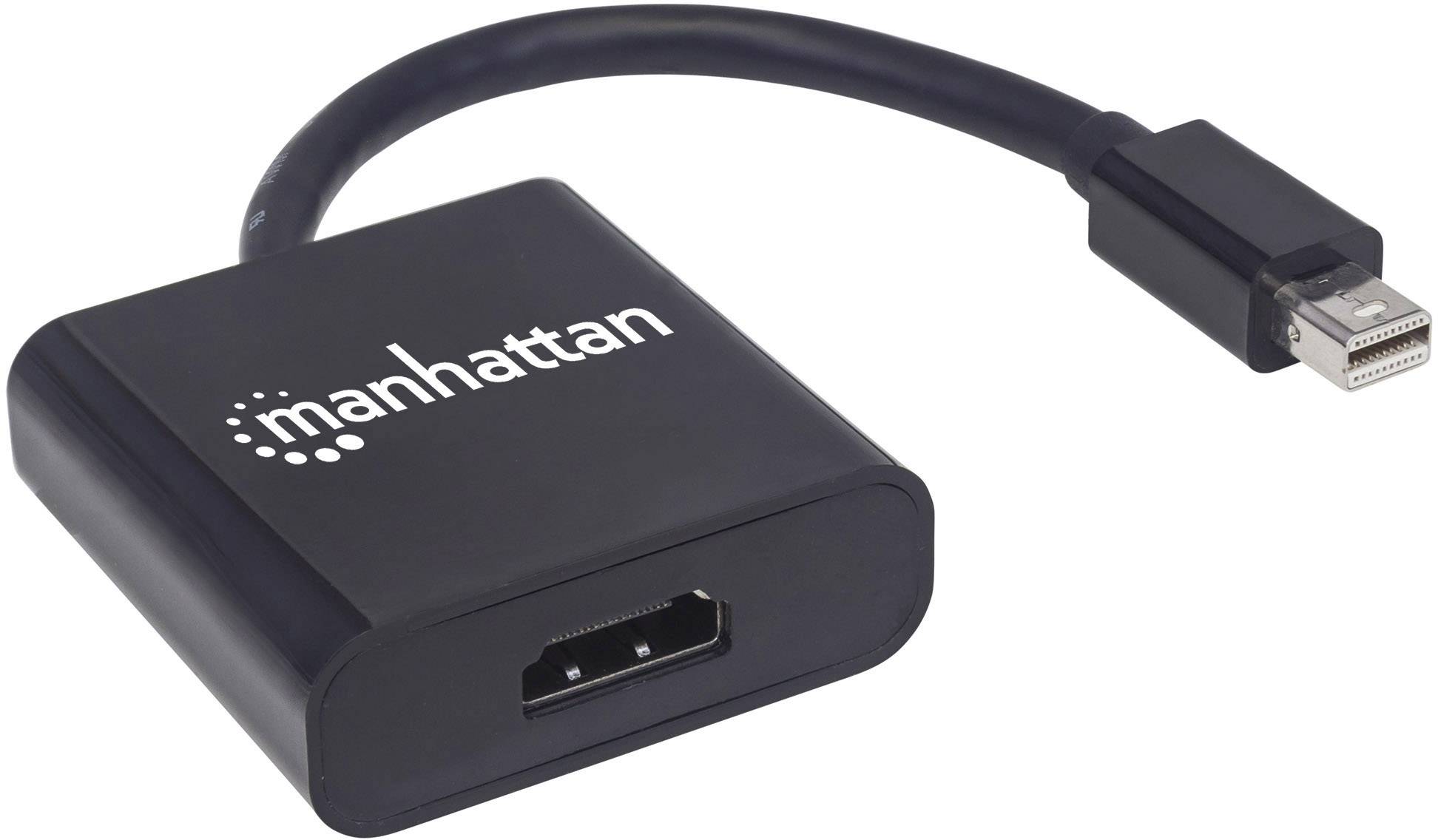

Manhattan 152570 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black Shielded, UL-approved 15.00
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Manhattan Active Mini Displayport to HDMI adapter, 4K@60Hz, black
- Provides a high-quality, active signal to an HDMI display
- Ideal for several screens and single large surface (SLS) Applications
- Active Adapter (with signal overcomes the limits of non-renewal) DP ++ (Dual Mode) graphics cards and guarantees the best connection with 4K/UHD displays and projectors
- Ideal for gaming, digital signage, financial accounting and other multi-display applications; supports AMD Eyefinity, Nvidia Surround and more
- Supports resolutions up to 3840 x 2160 (4K/UHD) at 60 Hz; display port 1.62 and 2.7 Gbit/s via one, two and four lanes; uncompressed digital 7.1 Surround Sound
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
Mini DisplayPort
- No. of A connectors
1 x
- Type A
Mini DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
15.00 cm
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Shielding
Shielding film
- Connector version
straight
- Cable features
Shielded
UL-approved
32
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- DisplayPort version
DisplayPort 1.4
Copper
- Cable design
Round
- Signal flow direction
Bidirectional (bi)
- Weight
0.028
- UKCA
yes
![Manhattan 152570 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black Shielded, UL-approved 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/1651088_BB_01_FB/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Manhattan 152549 Mini DisplayPort Adapter [1x DVI socket 29-pin - 1x Mini DisplayPort plug] Black Shielded, UL-approved 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/1651076_BB_01_FB/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Manhattan 322485 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x DVI socket 29-pin] Black Shielded, UL-approved 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/1651077_BB_02_FB/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
Documents & Downloads
Datasheet
Datasheet 1651088 Manhattan 152570 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black Shielded, UL-approved 15.00
User & Safety Instructions
User & Safety Instructions 1651088 Manhattan 152570 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black Shielded, UL-approved 15.00
Description
Simple connection to an Mini Displayport source to an HDMI display
The active Mini Displayport to HDMI adapter from Manhattan enables the connection of sources with Mini Displayport interface on a display or a projector with HDMI port. Even older graphics cards which no DP ++ (dual mode), thanks to the active signal conversion supported. Thus, this adapter is ideal for many video applications such as digital signage, multi-screen gaming and all jobs with multiple screens. The effective shielding provides for highest signal quality and with resolutions up to 4K / UHD.
This text is machine translated.
The active Mini Displayport to HDMI adapter from Manhattan enables the connection of sources with Mini Displayport interface on a display or a projector with HDMI port. Even older graphics cards which no DP ++ (dual mode), thanks to the active signal conversion supported. Thus, this adapter is ideal for many video applications such as digital signage, multi-screen gaming and all jobs with multiple screens. The effective shielding provides for highest signal quality and with resolutions up to 4K / UHD.
This text is machine translated.
Features
- Active Mini DP-conversion
- Maximum single-link Range: 3840 x 2160 (4K@60Hz)
- Voltage strength: 300 V
- Insulation resistance: 5 MOhm
- Line resistance: 10 Ohm
- Molded PVC sleeve
- Environments
- Operating temperature: 0 - 40°C
- Storage temperature: -20 to 60 °C
- Air humidity (non-condensing) 0 - 96%
System requirements
- Windows XP/Vista/7/8/10 or Mac OS 9 or higher or Linux
