Manhattan 180993 USB hub 3 ports USB type A USB 3.0 5 GBit/s Black 180993
EAN:
Part number:
Item no:
Highlights & Details

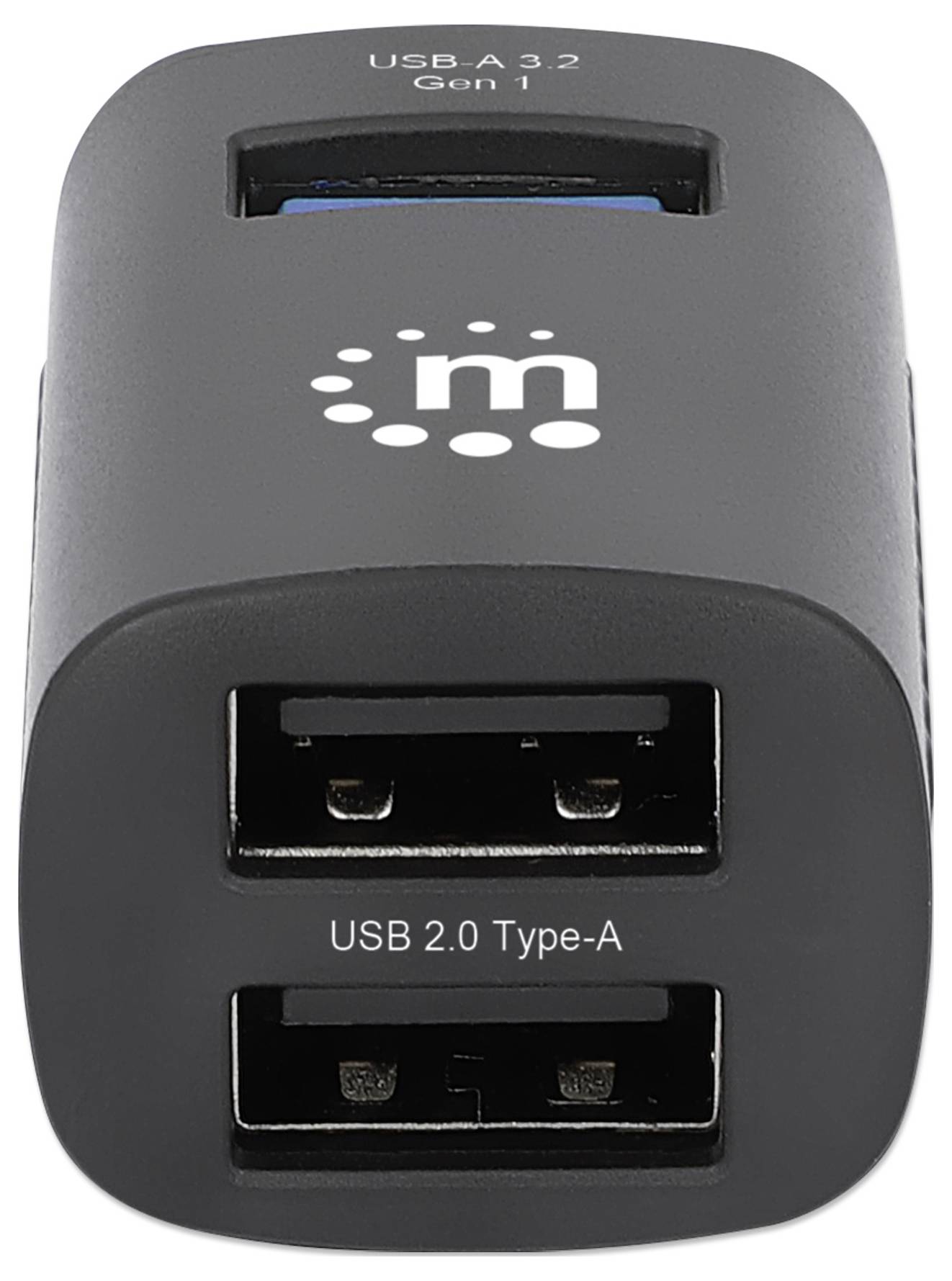

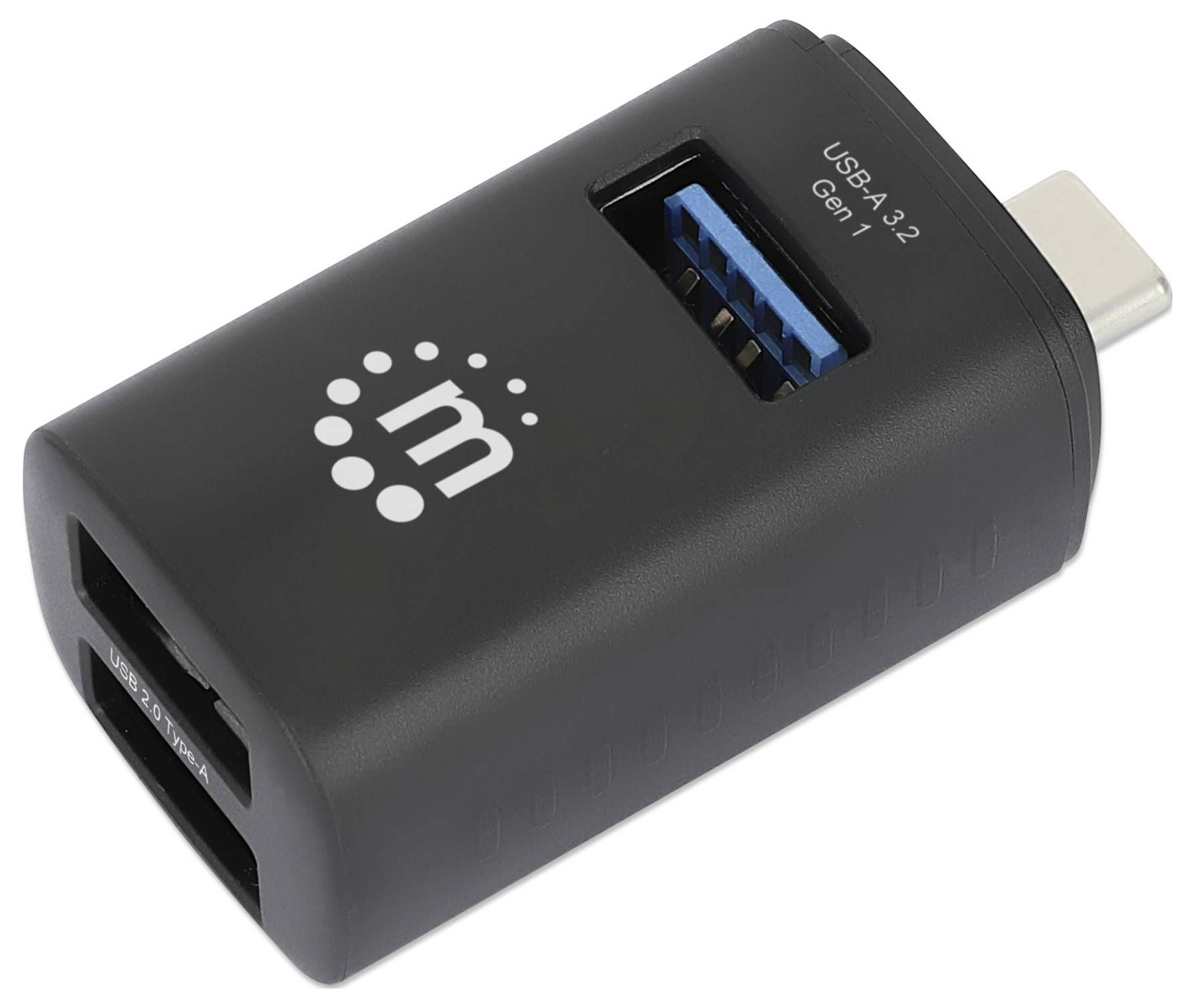

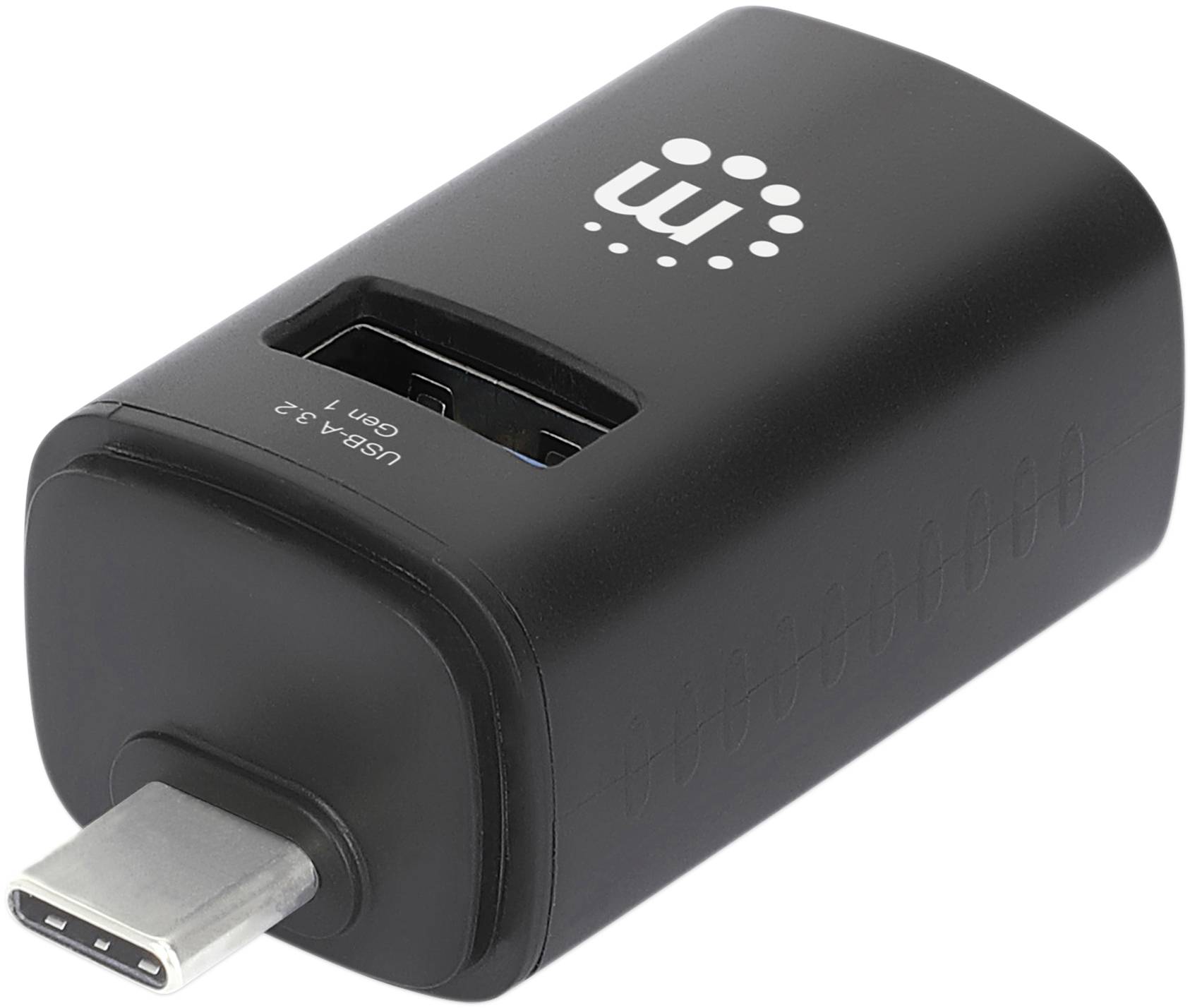

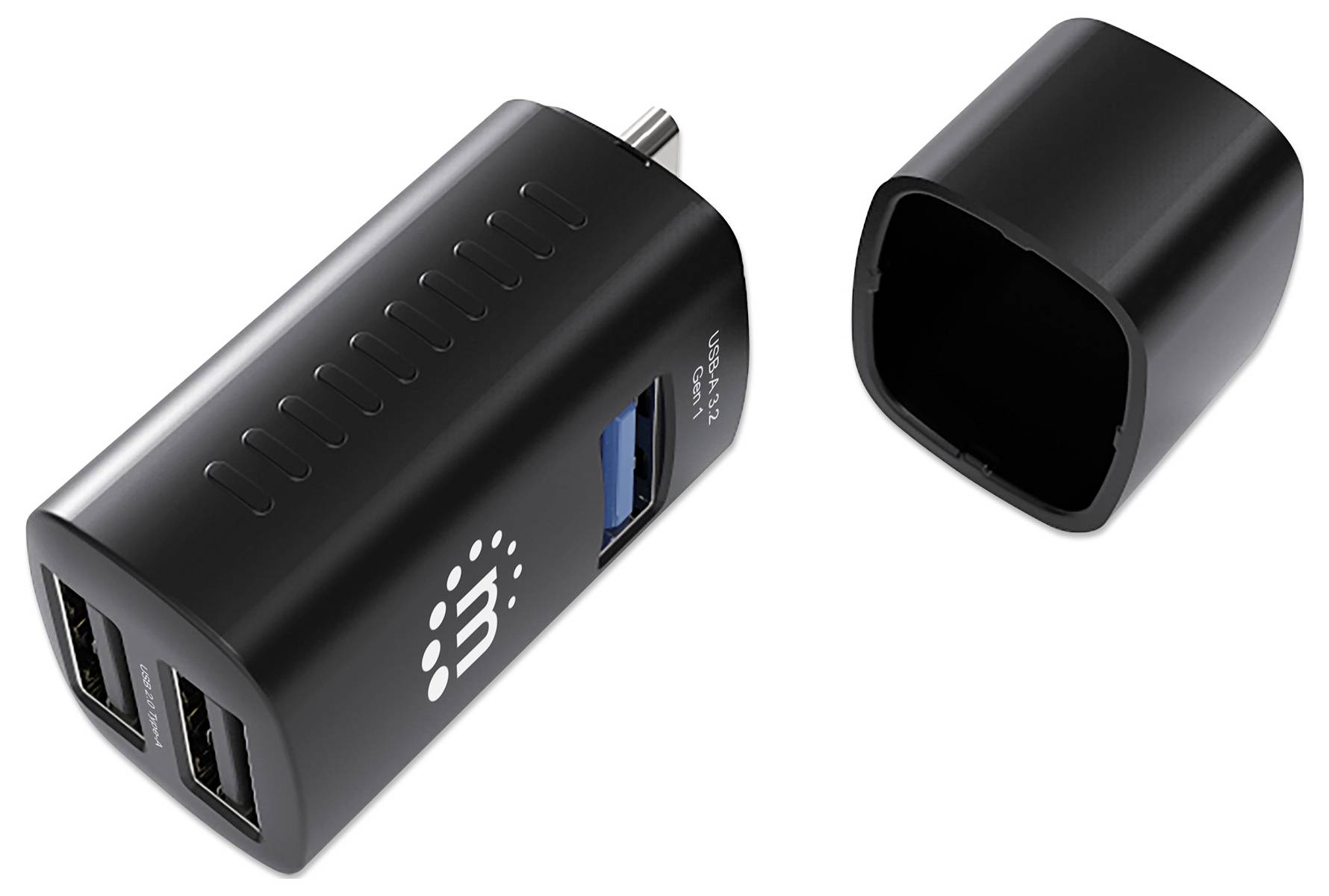

Manhattan 3-port USB 3.0 / 2.0 Type-C combo Mini-hub USB-C-plug on three USB-A-sockets, black
- Three additional USB A ports to connect mouse, keyboard, USB flash drive and more, or to charge and sync mobile devices
- A USB 3.2 1st Gen 1 type A port (USB 3.0) with SuperSpeed transfer rates of up to 5 Gbps and device charging up to 4.5 W (5 V / 0.9 A)
- Two USB 2.0 type A ports with transfer rates of up to 480 Mbit/s and device charging of up to 2.5 W (5 V / 0.5 A)
- Power supply via USB, no external power supply needed
- USB 1.1 backward compatibility
Technical specifications
- Product type
USB hub
- Cable specs
USB 3.0
- Transfer rate (max.)
5 GBit/s
- Port
3 ports
- Interfaces (output)
USB type A
- No. of outputs
3 x
- Cable length
0 mm
- Power supply (LOV)
via USB
- Used at
External
- Factory colour
Black
- Width
24 mm
- Height
20 mm
- Depth
55 mm
- Weight
15 g
- Type A
USB
- Type B
USB
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338820 Manhattan 180993 USB hub 3 ports USB type A USB 3.0 5 GBit/s Black 180993
Description
Tiny 3-port USB hub with type C connector for more connectivity of your USB-A devices
This mini-format Manhattan 3-port USB 3.0 / 2.0 Type-C combo hub transforms one USB-C port into three USB-A ports for connecting keyboard, mouse, USB printer and much more. One of these ports uses the USB 3.2 1 Gen standard (previously known as USB 3.0) for lightning fast data transfer rates of up to 5 Gbps This makes it especially suitable for transmission-intensive storage media such as external hard disks and USB sticks. The other two USB 2.0 ports are suitable in comparison better for peripheral devices like mouse and keyboard, but still transfer data at acceptable 480 Mbit/s.

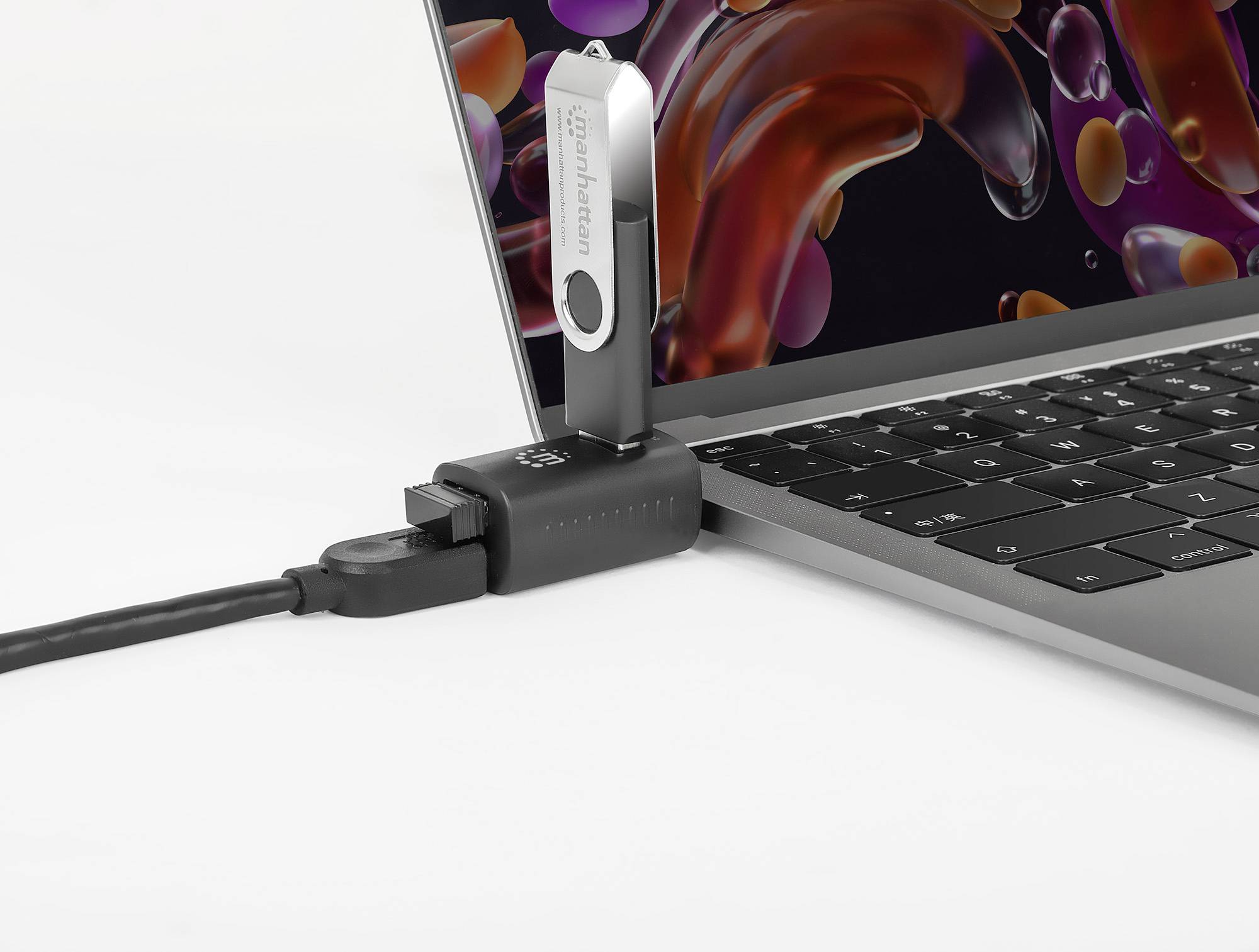

Connectivity to go
Its three ports makes this hub fit in only 55 mm long housing and can dispense with a power supply via USB thanks to a power supply. Thus, it fits comfortably in every trouser pocket and occupies very little space on the desk. Plug & Play installation and hot swap capability make it ready to use anywhere.
Universal compatibility for easy installation
This universal USB 3.0 hub is compatible with almost every system, as it does not need any additional software or drivers. It installs itself automatically when you connect it to your laptop or PC. It is suitable for as different operating systems as Windows®, MacOS®, Linux and Chrome OS and is therefore cross-platform compatible.
This text is machine translated.
This mini-format Manhattan 3-port USB 3.0 / 2.0 Type-C combo hub transforms one USB-C port into three USB-A ports for connecting keyboard, mouse, USB printer and much more. One of these ports uses the USB 3.2 1 Gen standard (previously known as USB 3.0) for lightning fast data transfer rates of up to 5 Gbps This makes it especially suitable for transmission-intensive storage media such as external hard disks and USB sticks. The other two USB 2.0 ports are suitable in comparison better for peripheral devices like mouse and keyboard, but still transfer data at acceptable 480 Mbit/s.
Connectivity to go
Its three ports makes this hub fit in only 55 mm long housing and can dispense with a power supply via USB thanks to a power supply. Thus, it fits comfortably in every trouser pocket and occupies very little space on the desk. Plug & Play installation and hot swap capability make it ready to use anywhere.
Universal compatibility for easy installation
This universal USB 3.0 hub is compatible with almost every system, as it does not need any additional software or drivers. It installs itself automatically when you connect it to your laptop or PC. It is suitable for as different operating systems as Windows®, MacOS®, Linux and Chrome OS and is therefore cross-platform compatible.
This text is machine translated.
Features
- Standards and certificates:
- USB 3.2 2nd Gen 1 (USB 3.0)
- USB 2.0
- CE
- FCC
- RoHS
- REACH
- UKCA
- General
- Data transfer rates
- - USB 3.0 port: 5 Gb/s.
- - USB 2.0 port: 480 Mbit/s.
- Charge output
- - USB 3.0 PORT: 4.5 W (5.0 V / 0.9 A)
- - USB 2.0 PORT: 2.5 W (5.0 V / 0.5 A)
- Connectivity
- 1 x 24-pin USB-C connector
- 1 x 9-pin USB-A socket
- 2 x 4-pin USB-A socket
- Physical data
- Dimensions (L x W x H) 55 x 24 x 20 mm
- Net weight: 15 g
- Gross weight 20 g
- Housing ABS plastic
- Ambient conditions
- Operating ambient temperature 0 - 50°C.
- Ambient temperature during storage -40 - 85°C.
- Humidity (non-condensing):0 - 85%
System requirements
- Windows 7/8.1/10/11
Linux
Chrome OS
MacOS
