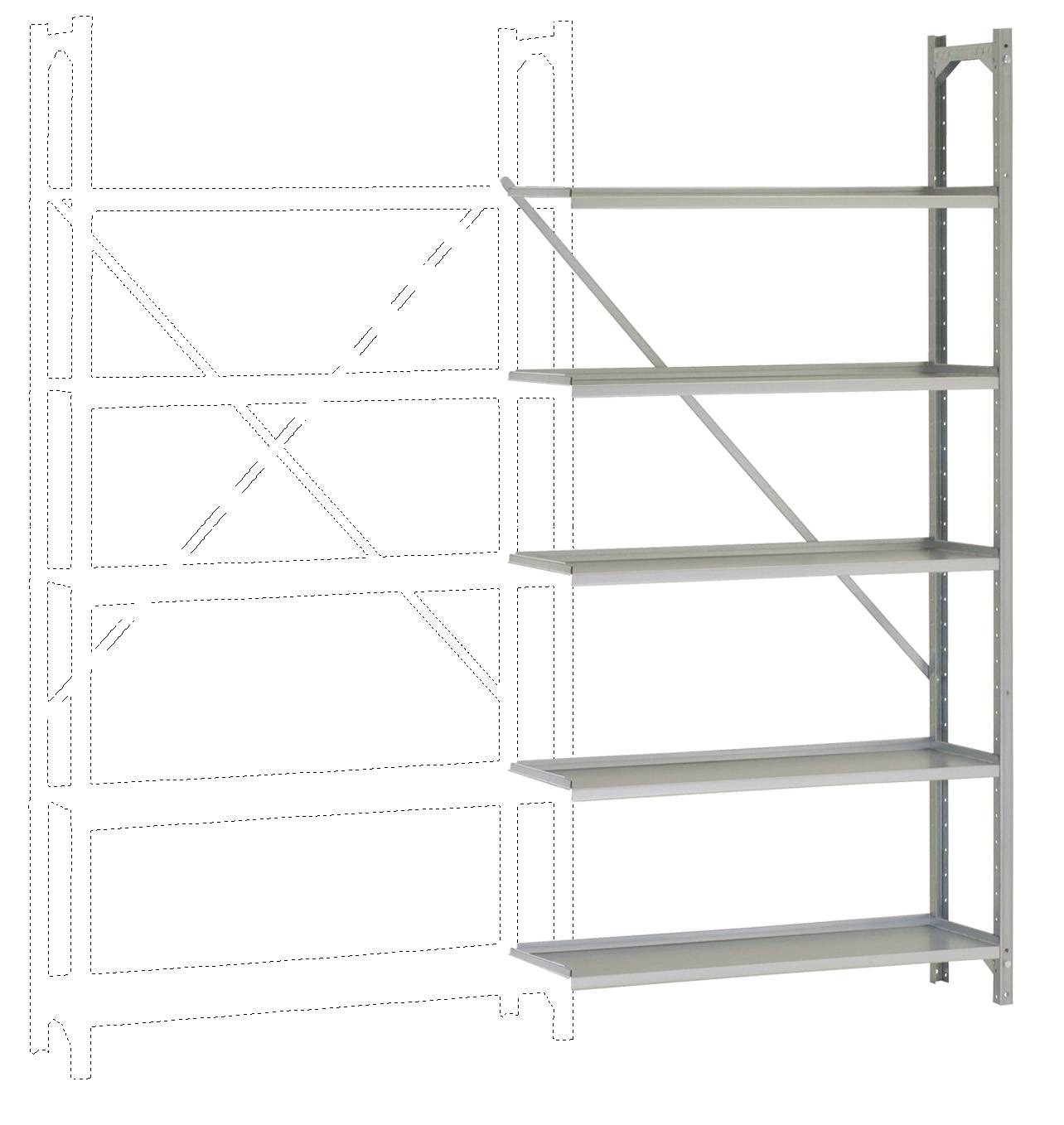

Manuflex RA2052 Shelf unit frame (W x H x D) 900 x 1900 x 300 mm Galvanized

Modern, affordable, push-fit BUDGET (shelf) for the highest quality standards. Complete zinc-plated and protected against corrosion, for heavy use. With diagonal to stabilise the shelf. Frame design budget for the self-mounting of the in-rack frame, thus with the extra price advantage. The shelf unit frame in U-profile 30 x 30 mm are made from high-polished galvanised steel plate and with struts amplified for a field load up to 600 kg. By default with floor-protecting plastic feet. The frame height is 1900 mm. On request, we manufacture shelf frames can be individually. The shelves with a width of 900 mm and a depth of 300 mm are made from high-polished galvanised sheet steel. The compartment base thickness is 25 mm. The rear edge has a 25 mm high stop as Durchschubsicherung (e.g. for folders). The shelves can be adjusted at a pitch of 50 mm in the plug system (in the area of cross braces in grid of 100 mm) and can be exactly to your needs. The load capacity is 50 kg per deck with uniform load distribution. On the 5 enclosed shelves, for example, you can manage up to 55 files (up to 11 folders per floor). CAUTION! For a mounting rack is a basic shelf is required (archive shelf BUDGET basic shelf product number: RA2051).
