Max Hauri 136335 Power strip (w/o switch) White CH plug 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

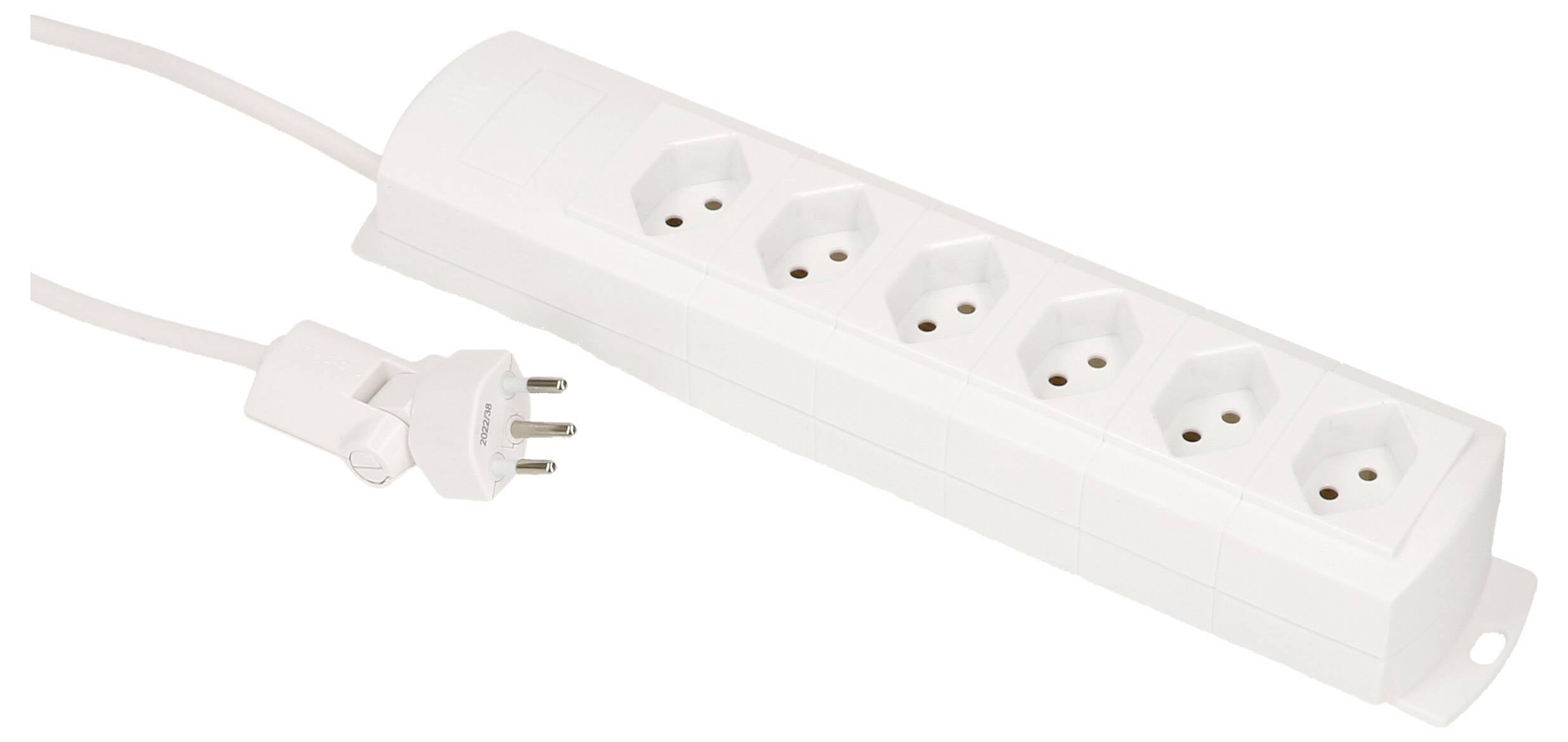

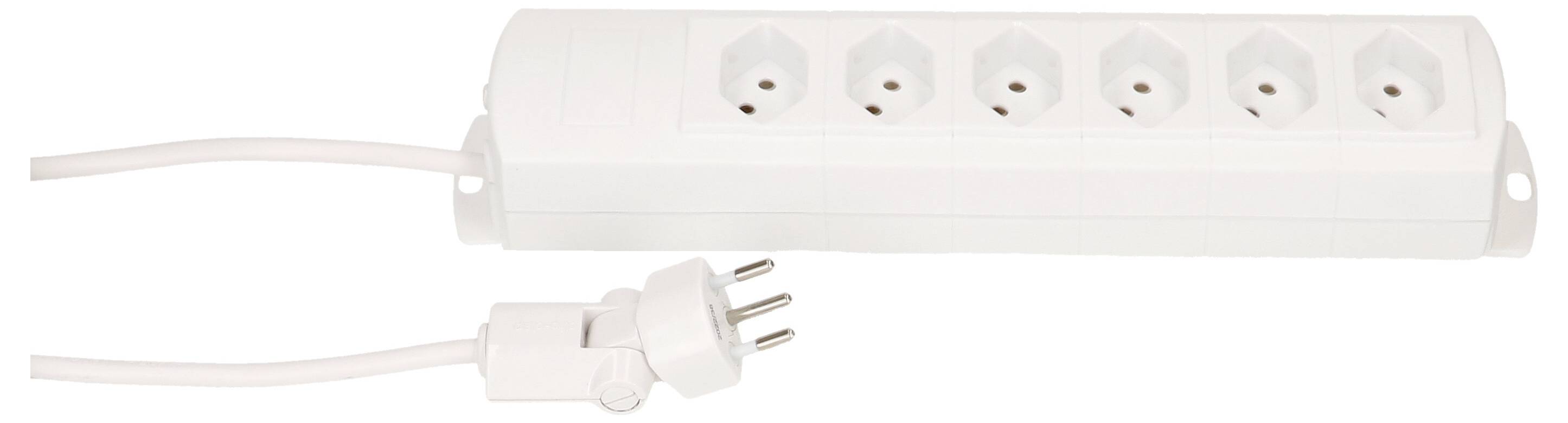

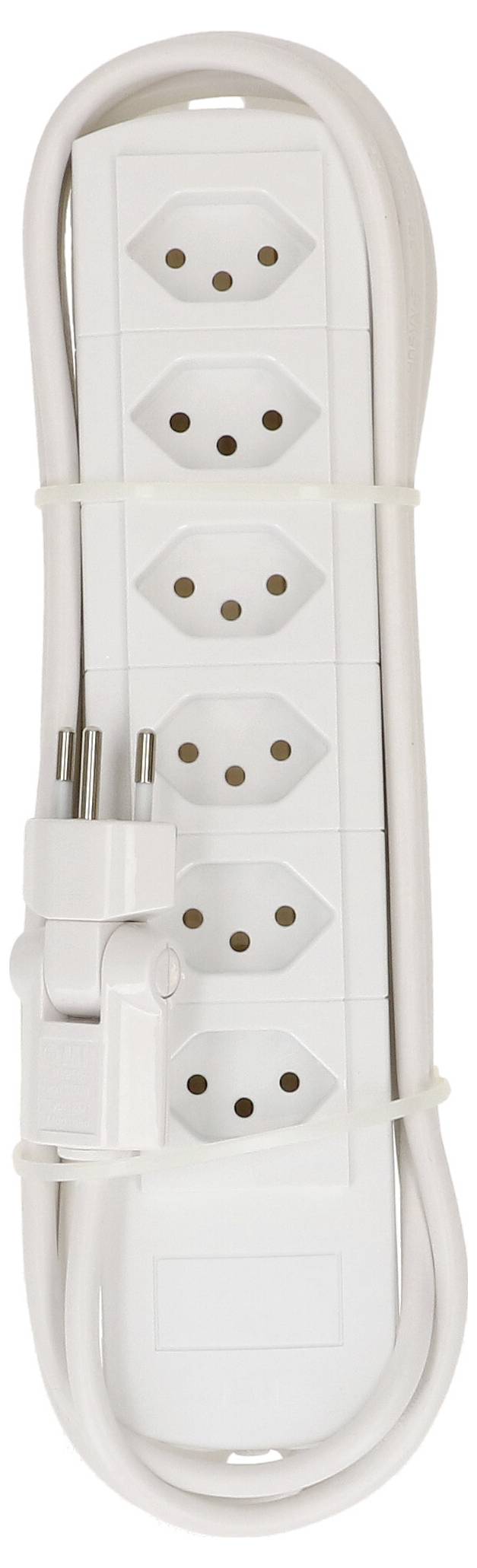

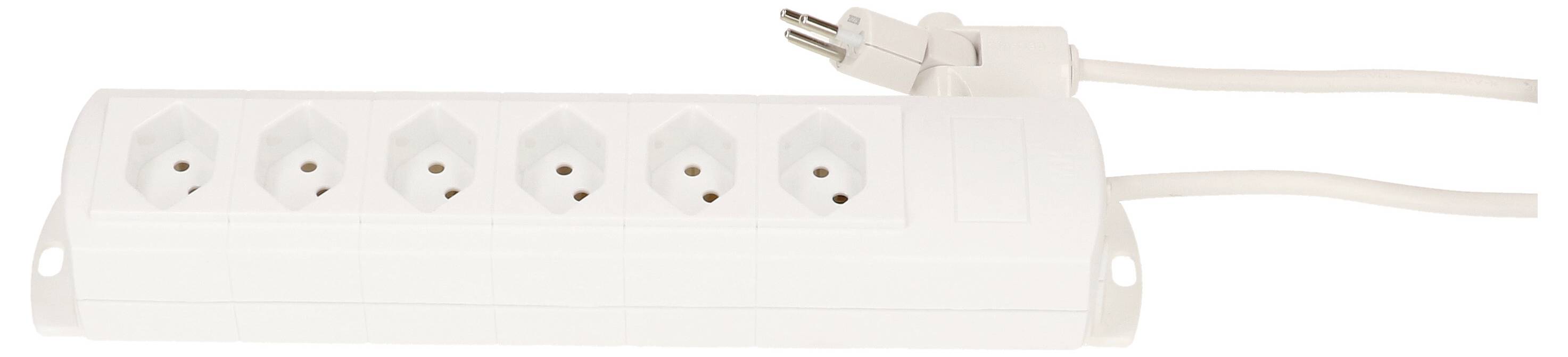

Max Hauri 136335 Power strip (w/o switch)
- Simple and modern design
- Numerous variations for every application challenge

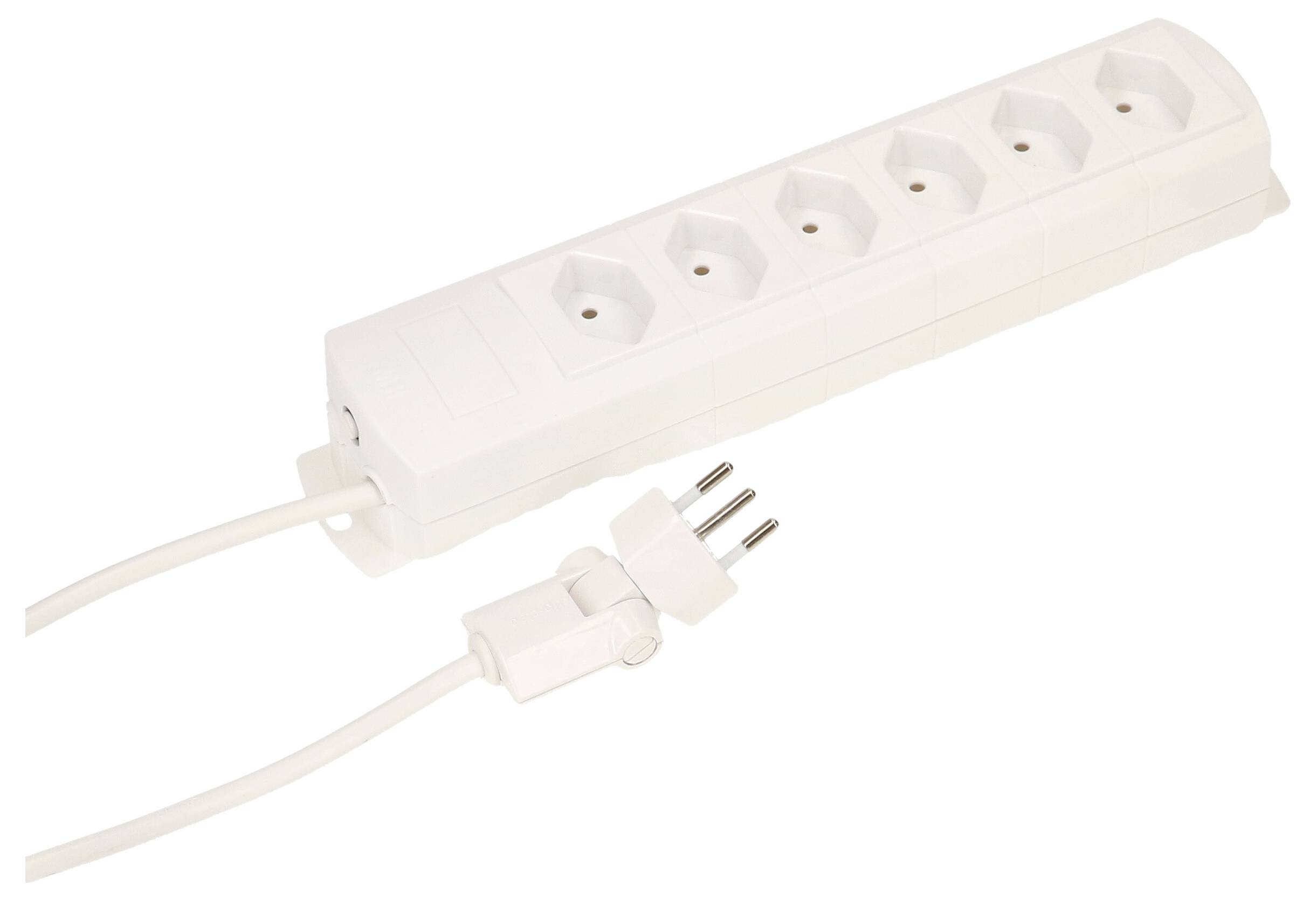

- Flatter as well as swiveling and folding clip-clip plug at the feed cable
- Simple to attach at the desired place
- Tremendous safety
Technical specifications
- Socket type: 13 (T13)
- Supply: Type 12 (T12) clip-clip
- Cross section: 1.00 mm²
- HAR. Name: H05VV-F.
- Product type
Power strip (w/o switch)
- Outlets
6
- Cable length
3 m
- Used at
Indoors
- Material
Plastic
- Leakage current
10 A
- Plug type
CH plug
- Operating voltage
230 V
- Power rating
2300 W
- Factory colour
White
- Length
300 mm
- Width
60 mm
- Height
47 mm
IP20
Documents & Downloads
Datasheet
Datasheet 3396666 Max Hauri 136335 Power strip (w/o switch) White CH plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3396666 Max Hauri 136335 Power strip (w/o switch) White CH plug 1 pc(s)
Description

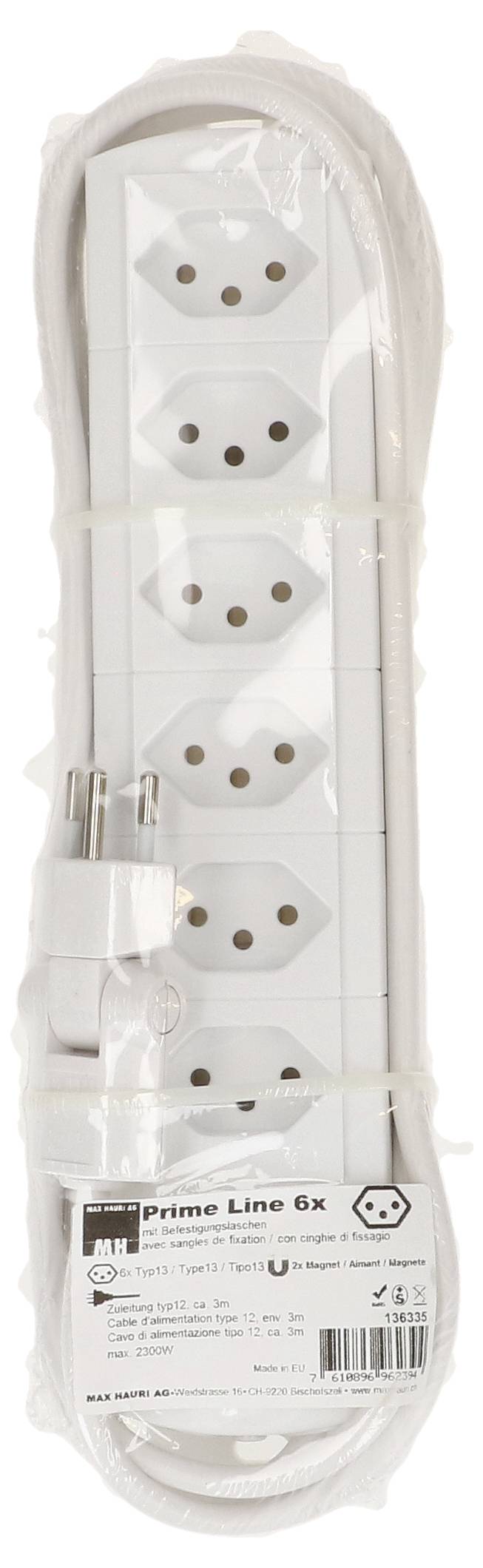

Socket strip Prime Line 6 x Type 13 white / over-current protection, 2x magnets, mounting lugs / plastic / Cable: Clip-clip type 12 H05VV-F3G1.0 3m white

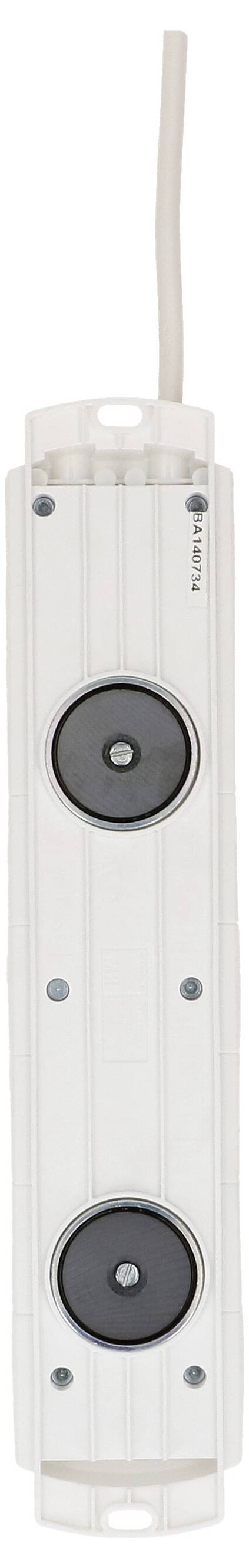

This socket strip is the ideal solution, in order to provide power to up to six devices at the same time at work splat, in the office or in the workshop. The patented clip-clip plug on the supply cable is very flat and can be folded up to 180° and rotated up to 130°. It satisfies in confined spaces or for cable alignment in a specific angle. They are secured at the desired location using the integrated magnets or screw-fixing with the suspension bracket. Maximum safety thanks to the integrated overcurrent protection and the safety mark S+.
This text is machine translated.
This socket strip is the ideal solution, in order to provide power to up to six devices at the same time at work splat, in the office or in the workshop. The patented clip-clip plug on the supply cable is very flat and can be folded up to 180° and rotated up to 130°. It satisfies in confined spaces or for cable alignment in a specific angle. They are secured at the desired location using the integrated magnets or screw-fixing with the suspension bracket. Maximum safety thanks to the integrated overcurrent protection and the safety mark S+.
This text is machine translated.
