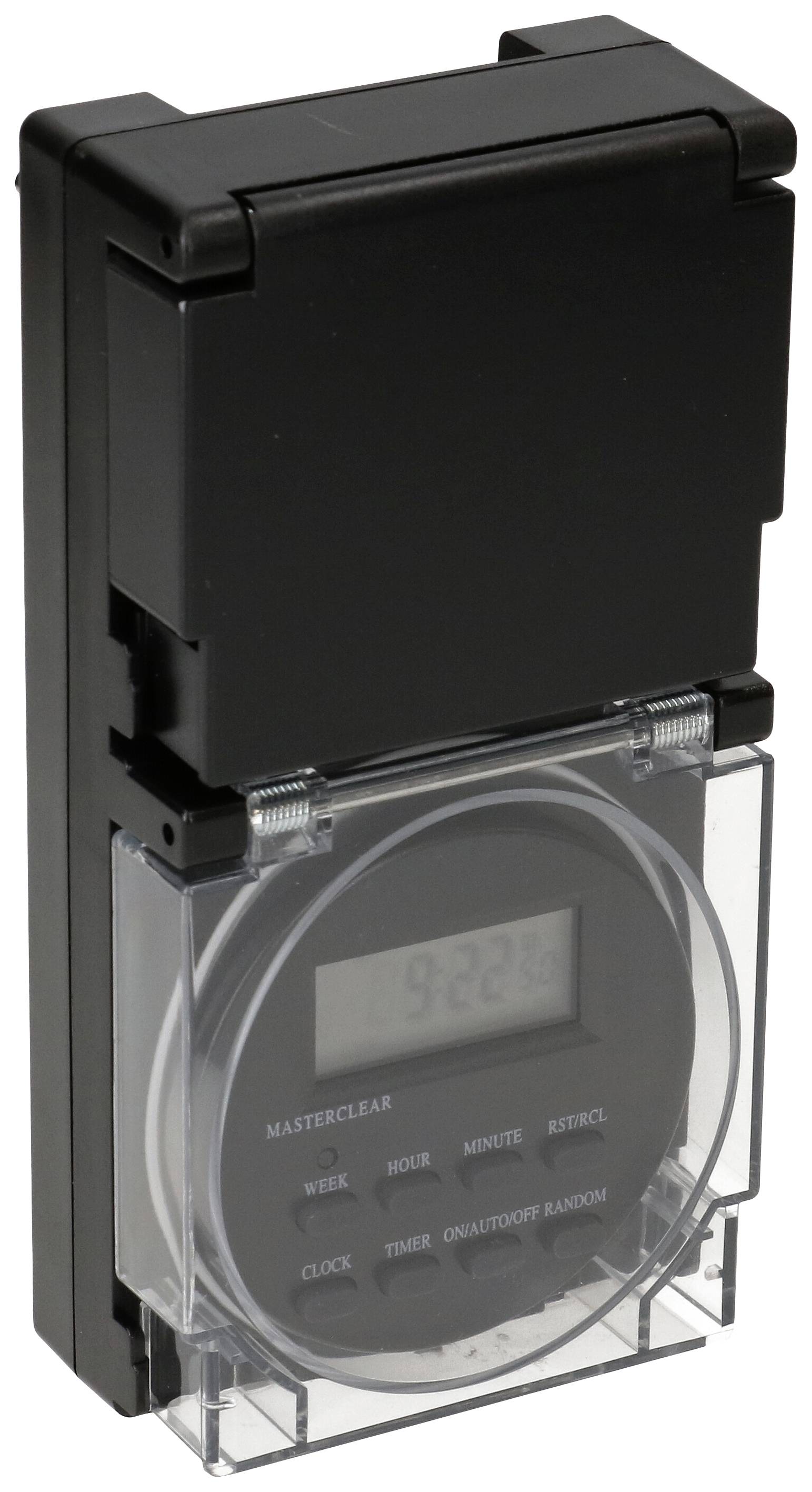

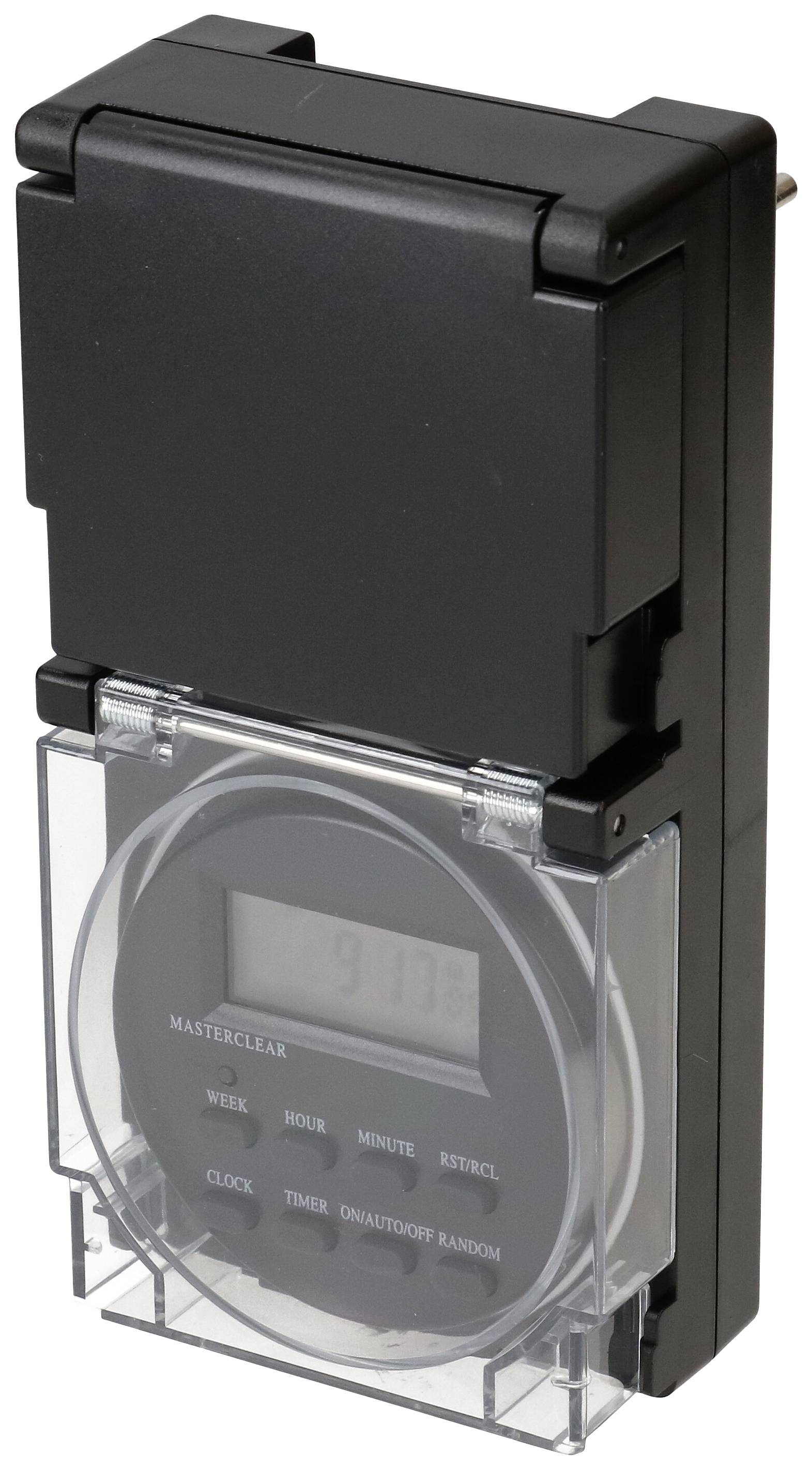

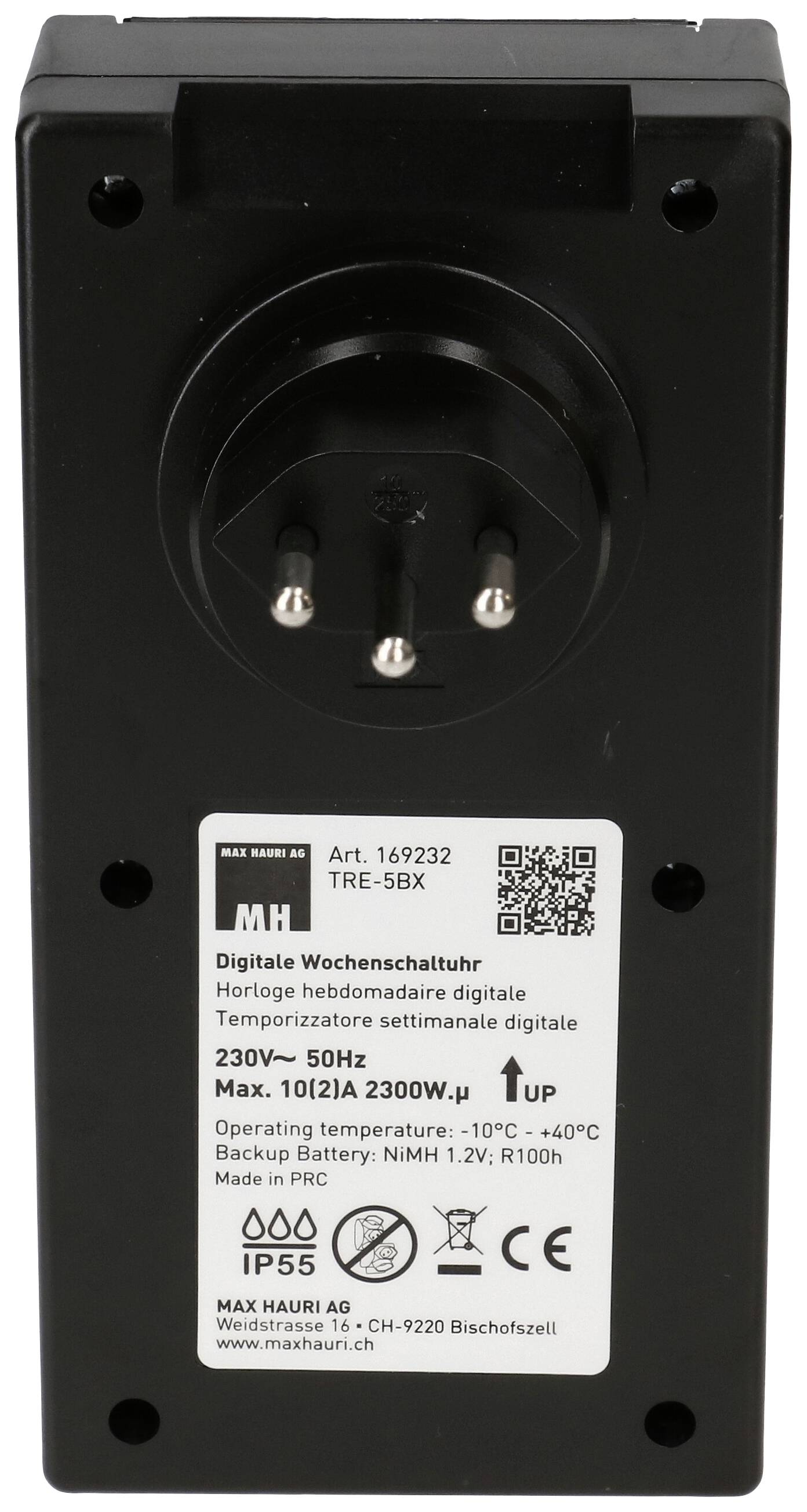

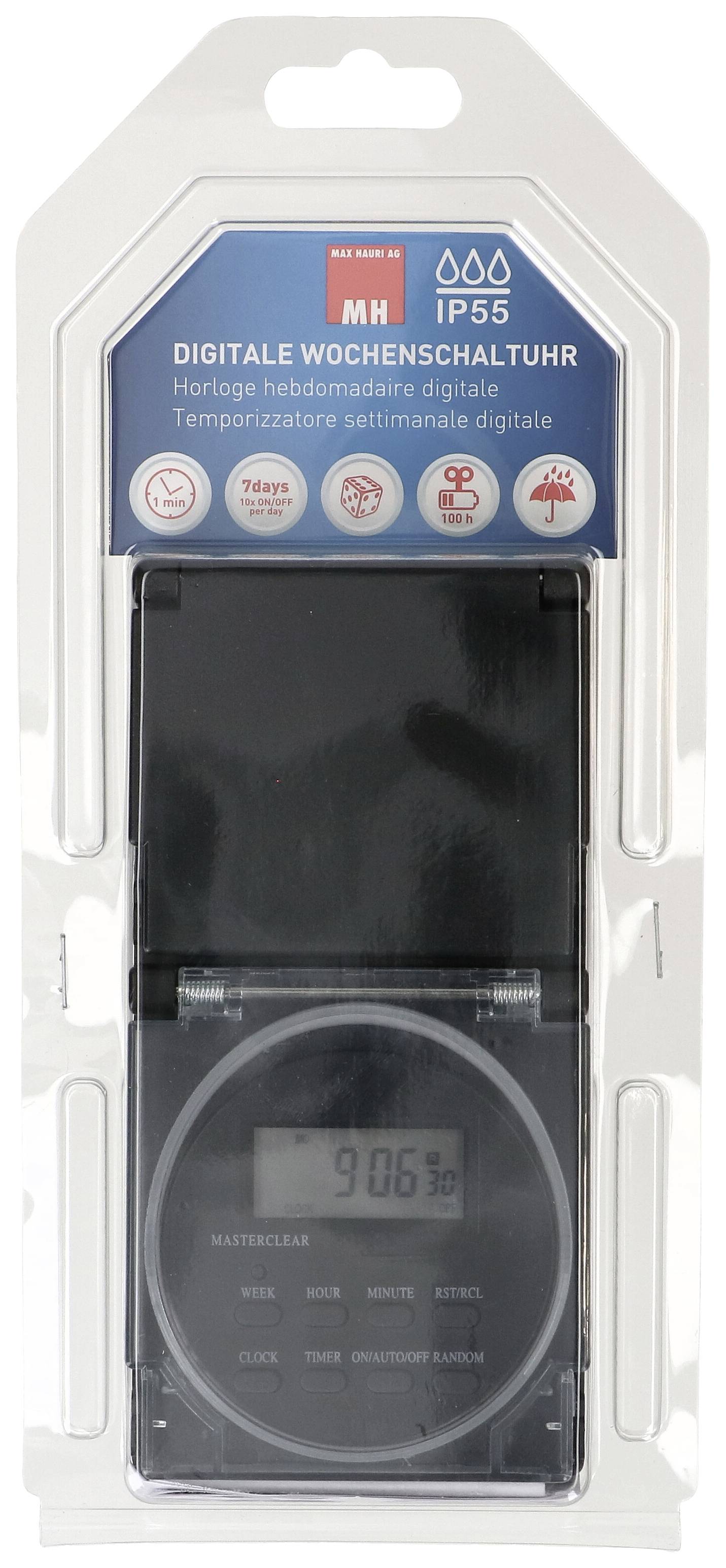

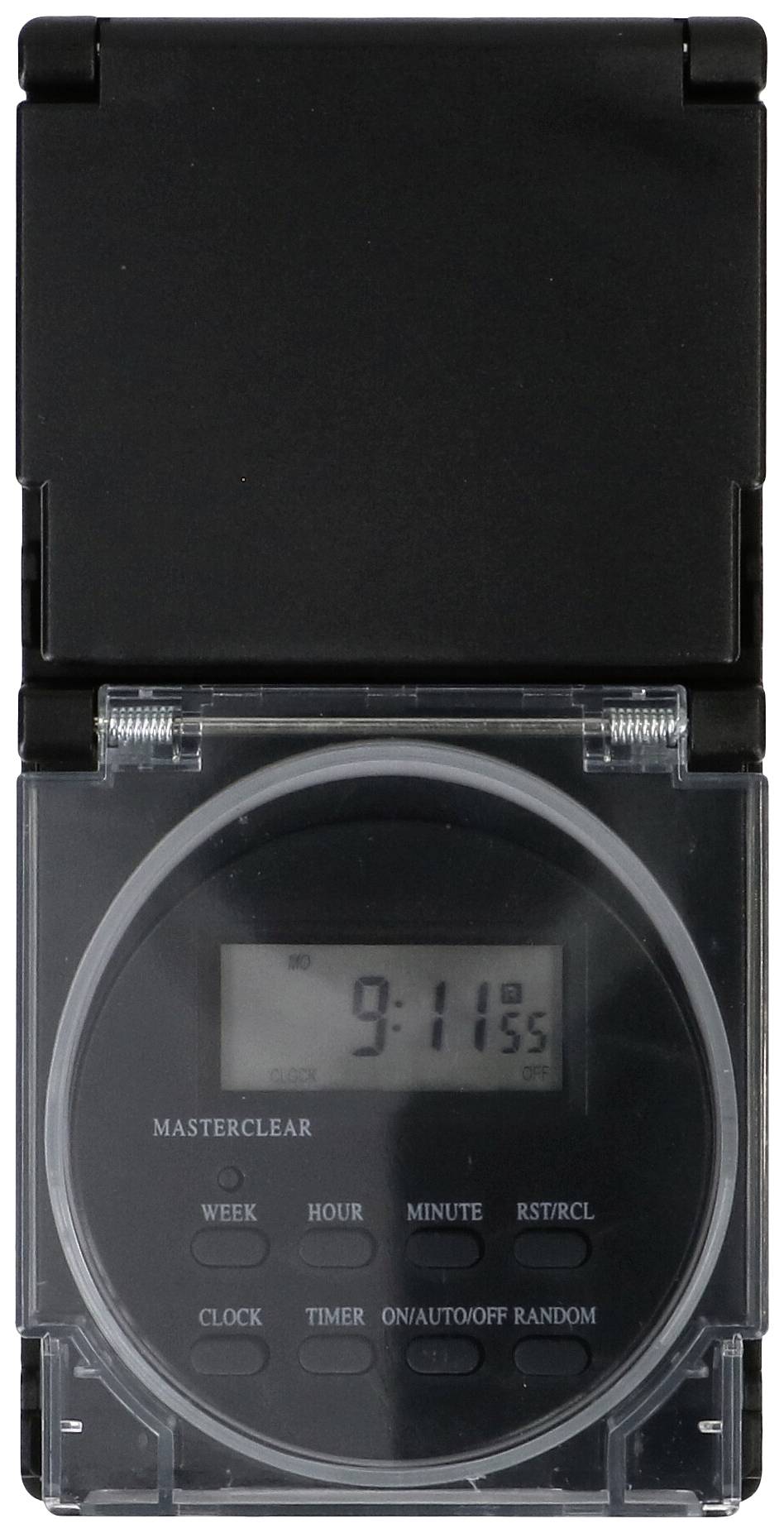

Max Hauri 169232 Timer digital IP55 RND mode
EAN:
Part number:
Item no:
Highlights & Details
Timer switch digital black, IP55
- Voltage 230 V (50 Hz)
- Current 10 A
- Additional function: Increased contact protection and random generator
- Protection class IP55
Technical specifications
- Product type
Timer
- Type
digital
- Features
RND mode
- Used at
Outdoors
IP55
- Operating voltage
230 V
- Factory colour
Black
- Shortest switching time
1 min
- Width
77 mm
- Height
95 mm
- Depth
155 mm
- Dim
(W x H x D) 77 x 95 x 155 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998690 Max Hauri 169232 Timer digital IP55 RND mode
Description

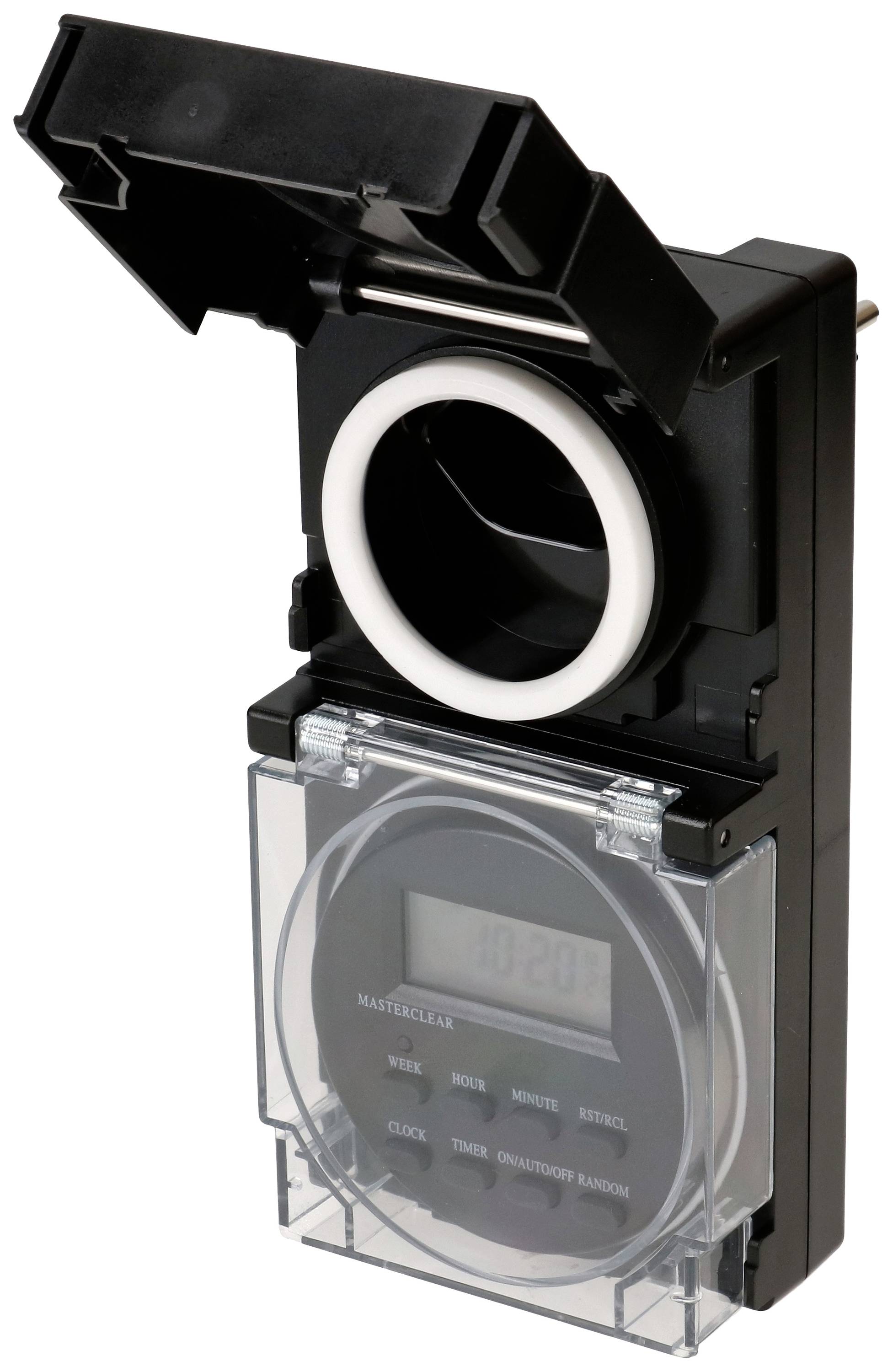

This digital timer for the outdoor area or harsh environments can automatically switch connected devices on and off. Thanks to an internal memory up to 20 on-/off-times can be stored, which can be arranged in week models, either in day blocks or differently for each day of the week. In order to scare off unwanted guests during a longer absence, for example a lighting at different times can be switched on and off using the built-in random generator (presence simulation). The protection class IP55 includes the complete dust and protection against accidental contact (IP5X) as well as protection against water spray (IPX5). This is ensured with the IP55 plug inserted as well as with the hinged lid closed. The inbuilt touch protection provides increased safety.
