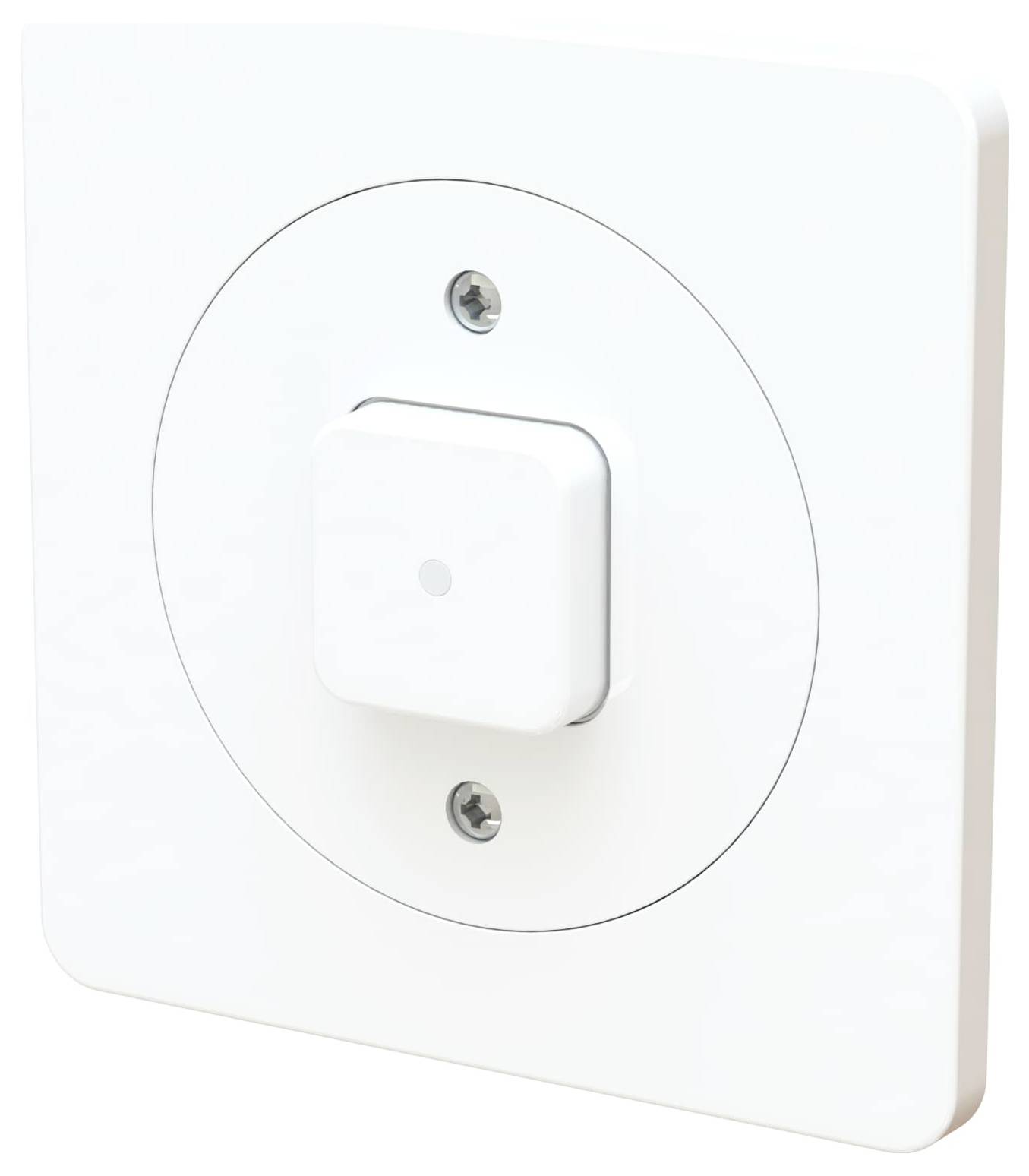

Max Hauri 170617 Switch IP20 White (glossy)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Push switch scheme 3 illuminated UP maxONE white
- Scheme 3, illuminated
- Size 1x1
- With plug-in terminals
Technical specifications
- Product type
Switch
- Nominal voltage
230 V
- Nominal current
10 A
- Mounting type
Flush mount
- Mounting depth
39 mm
- Factory colour
White (glossy)
IP20
- Dim
(L x W x H) 90 x 90 x 53 mm
- Length
90 mm
- Width
90 mm
- Height
53 mm
- Depth
39 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3396861 Max Hauri 170617 Switch IP20 White (glossy)
User & Safety Instructions
User & Safety Instructions 3396861 Max Hauri 170617 Switch IP20 White (glossy)
Description
Push switch scheme 3 illuminated with LED white / design: Flush-mounted / current: 10A / voltage: 250V AC / LED-load max.: 100W / additional function: With plug-in terminals / color: White / IP-protection class: IP20 / maxONE
This pressure switch is mounted in a socket in the wall. It enables the switching on and off from one or two locations. The decorative lighting can be used either as an operating display or as continuous illumination for a simple location of the switch or button in the dark. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
This text is machine translated.
This pressure switch is mounted in a socket in the wall. It enables the switching on and off from one or two locations. The decorative lighting can be used either as an operating display or as continuous illumination for a simple location of the switch or button in the dark. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
