Max Hauri 170625 Pushbutton IP20 White (glossy)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

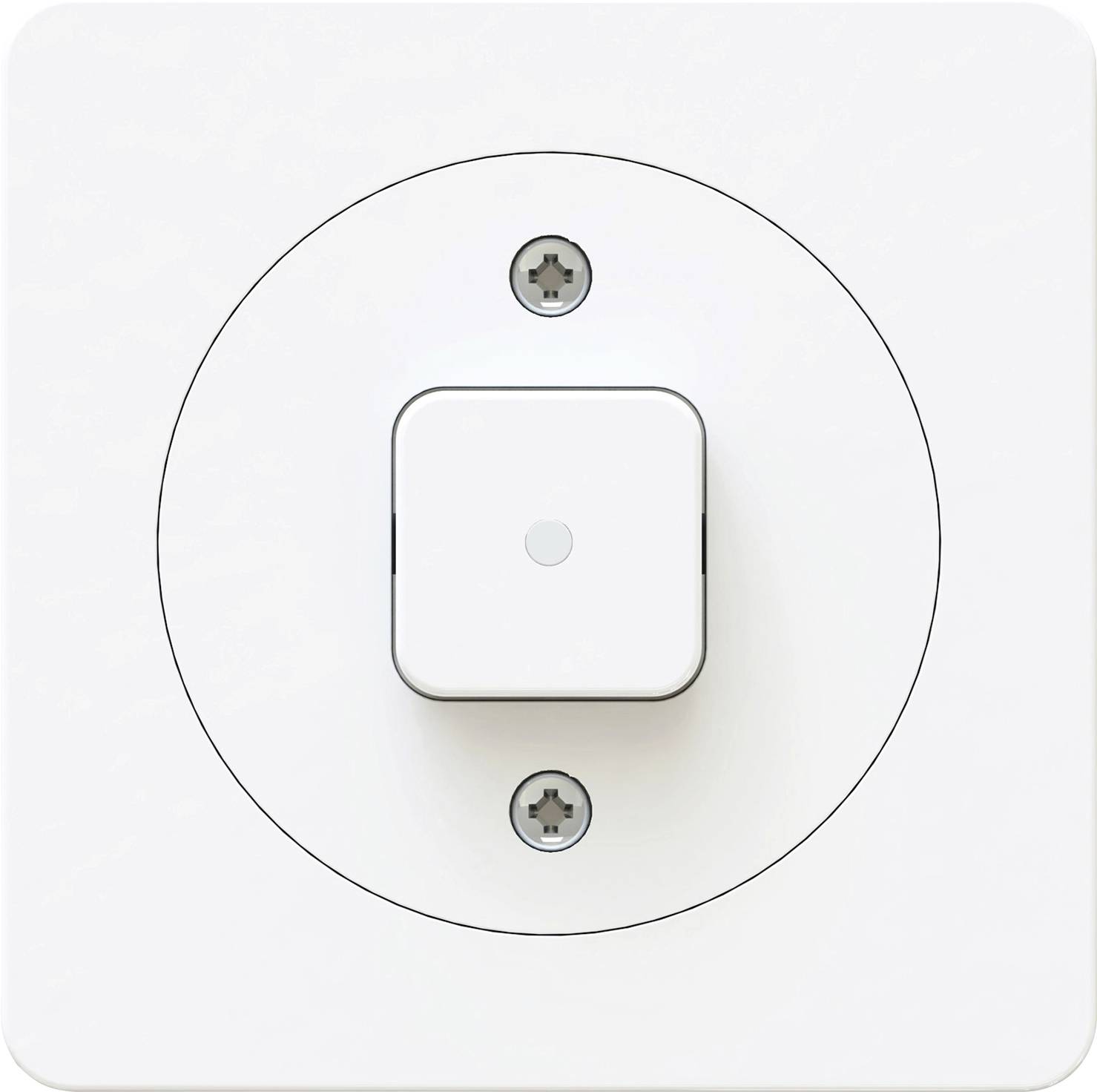

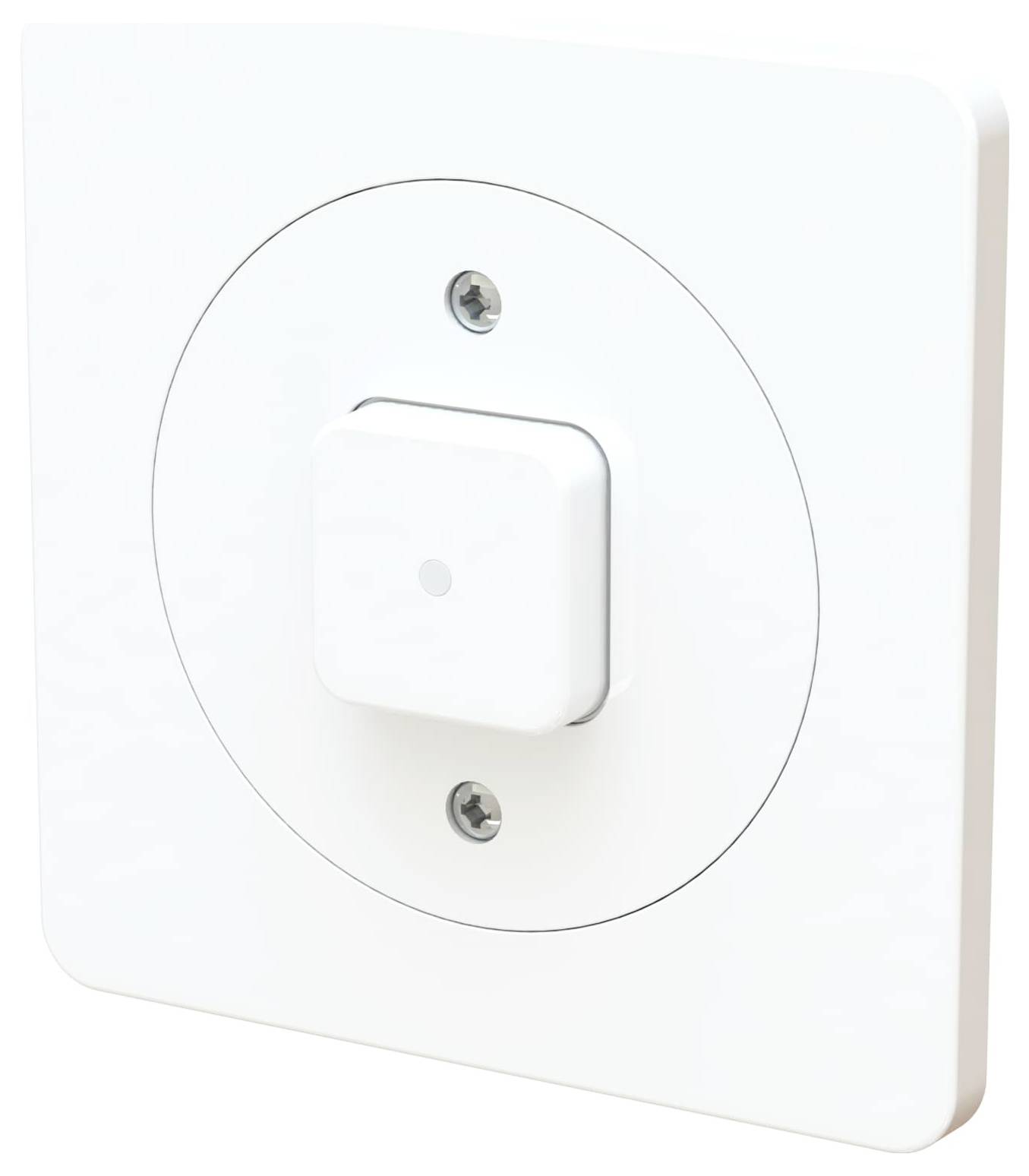

Pushbutton A/R illuminated UP maxONE white
- A/R, illuminated
- Size 1x1
- With plug-in terminals
Technical specifications
- Product type
Pushbutton
- Nominal voltage
230 V
- Nominal current
10 A
- Mounting type
Flush mount
- Mounting depth
39 mm
- Factory colour
White (glossy)
IP20
- Dim
(L x W x H) 90 x 90 x 53 mm
- Length
90 mm
- Width
90 mm
- Height
53 mm
- Depth
39 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3396869 Max Hauri 170625 Pushbutton IP20 White (glossy)
User & Safety Instructions
User & Safety Instructions 3396869 Max Hauri 170625 Pushbutton IP20 White (glossy)
Description
Pushbutton NO/NC contact illuminated with LED white / size 1x1 / design: Flush / current: 10A / voltage: 250V / additional function: Front lens, with plug clamps / mounting height: 14mm / mounting depth: 39mm / color: White / IP protection class: IP20 / maxONE
This pushbutton is mounted in a connector socket in the wall. It allows the on and off switching from several locations via a minute or step switch. The decorative lighting can be used either as an operating display or as continuous illumination for a simple location of the switch or button in the dark. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
This text is machine translated.
This pushbutton is mounted in a connector socket in the wall. It allows the on and off switching from several locations via a minute or step switch. The decorative lighting can be used either as an operating display or as continuous illumination for a simple location of the switch or button in the dark. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
