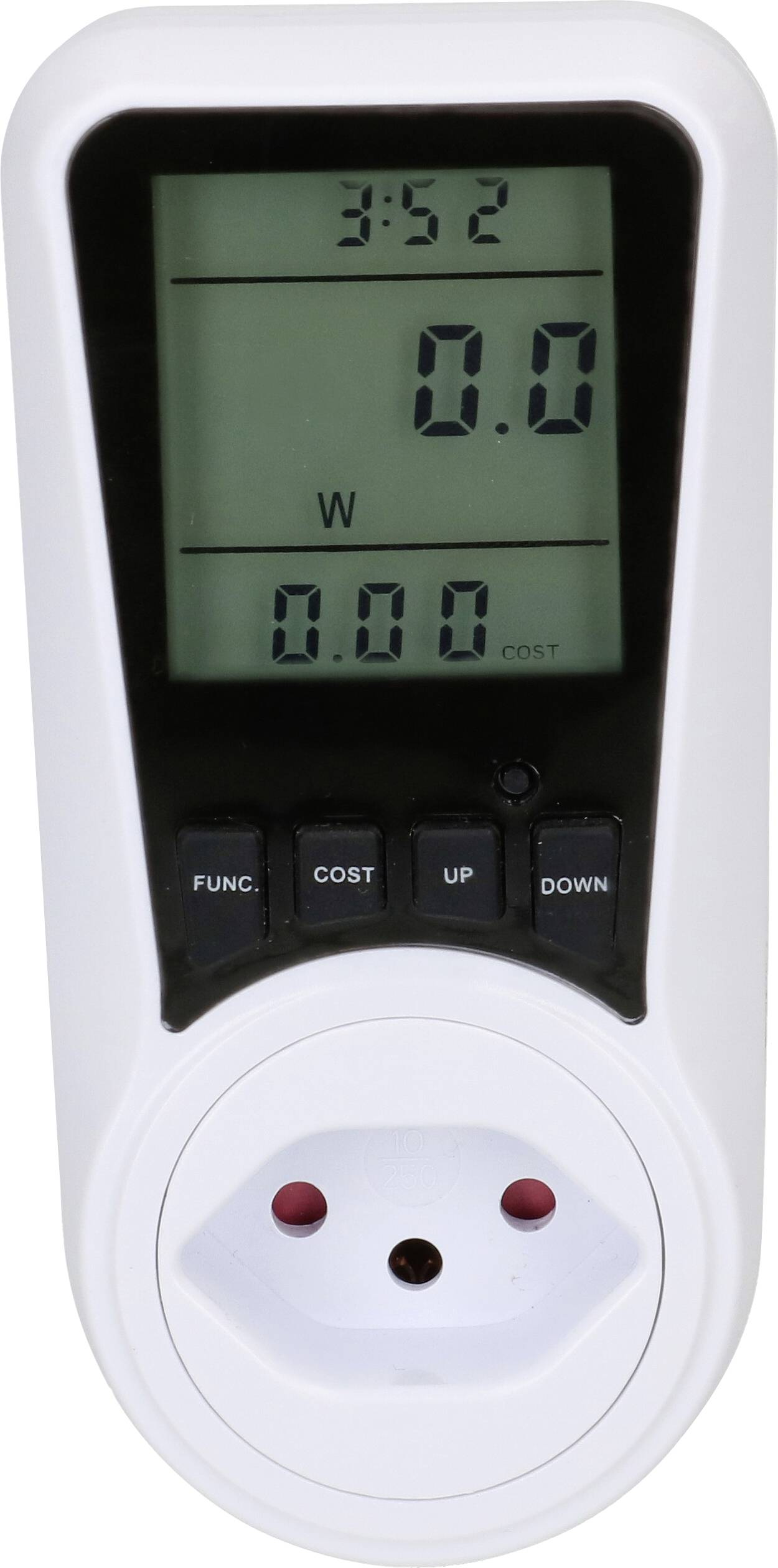

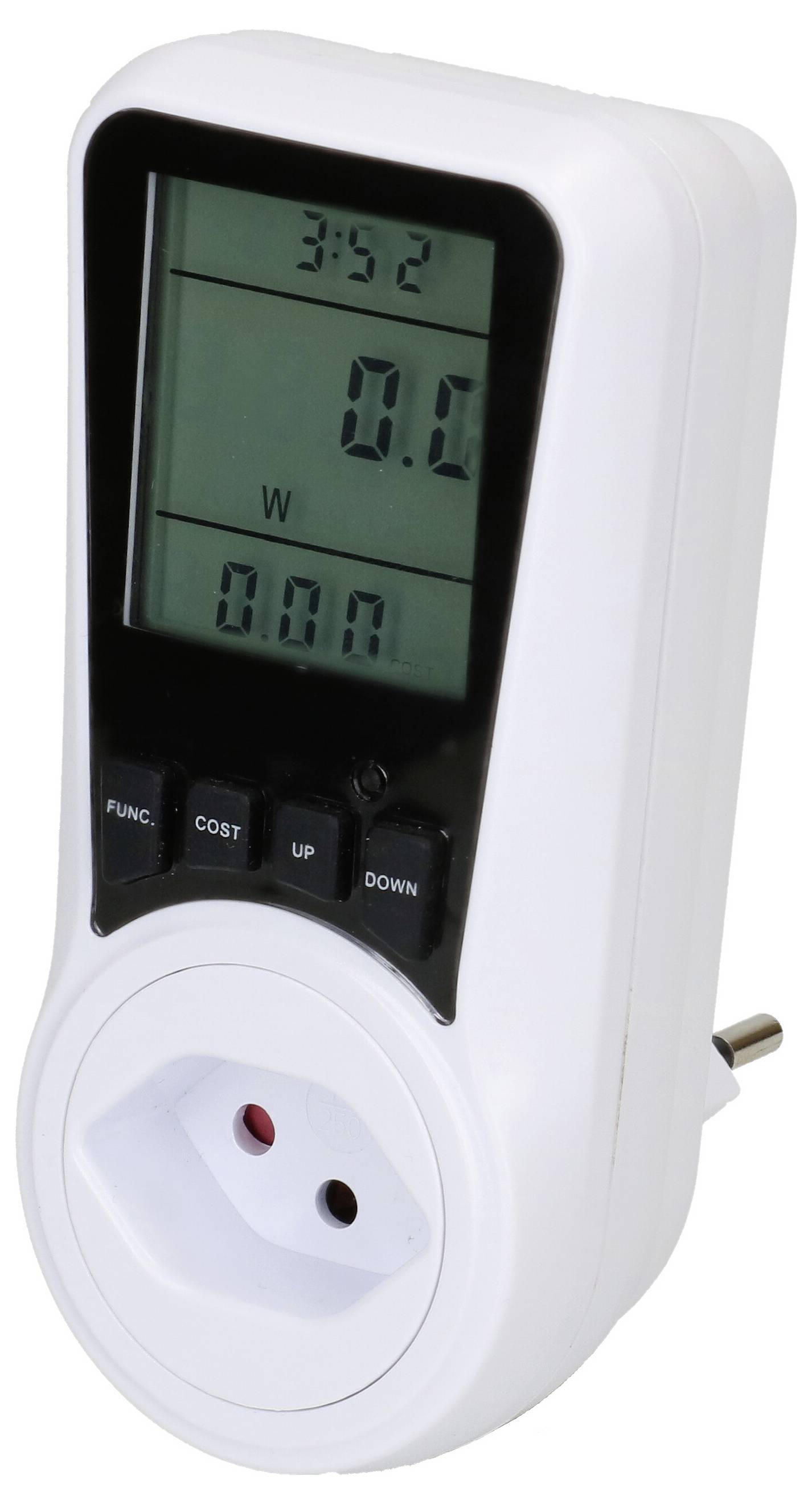

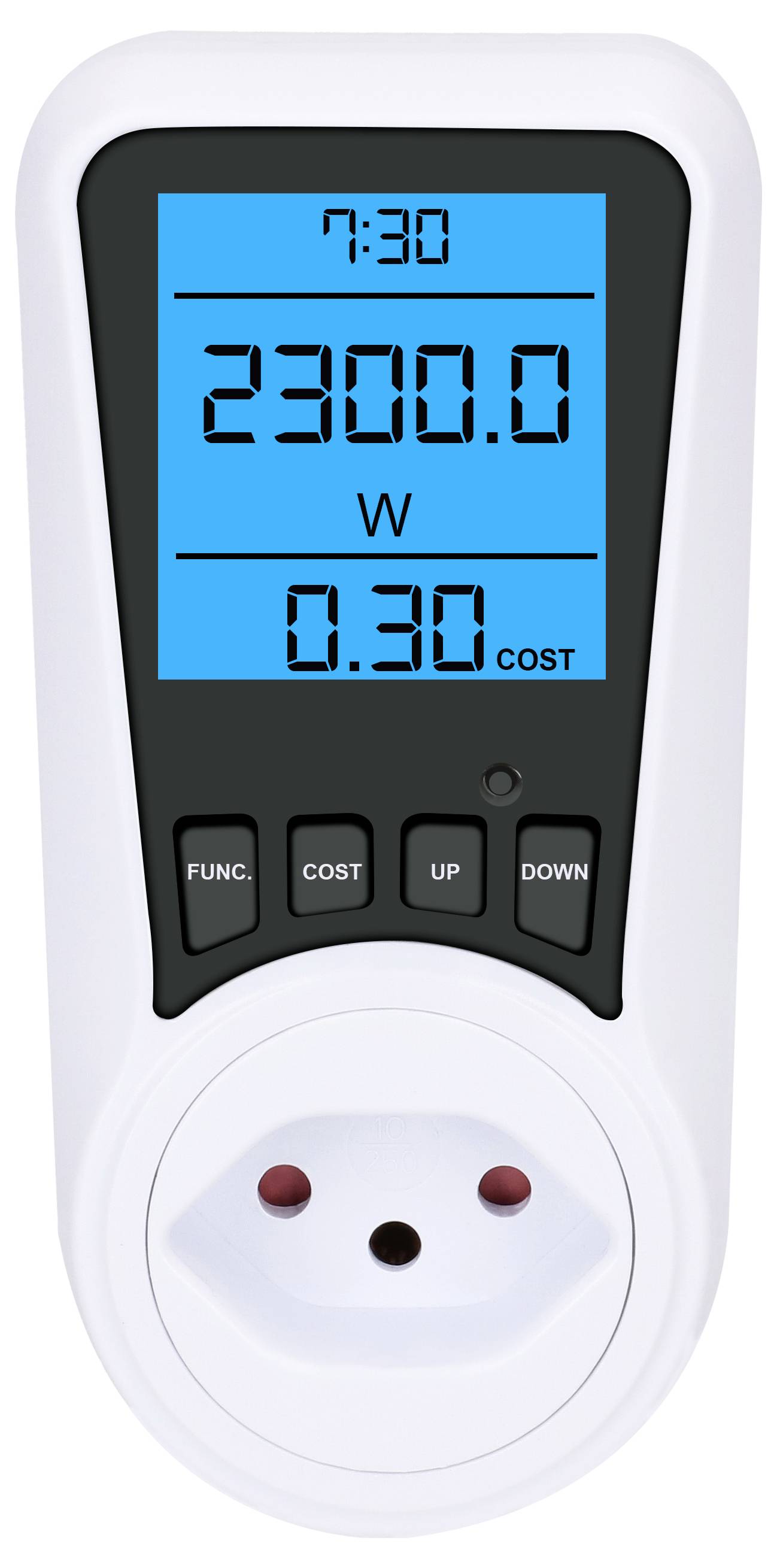

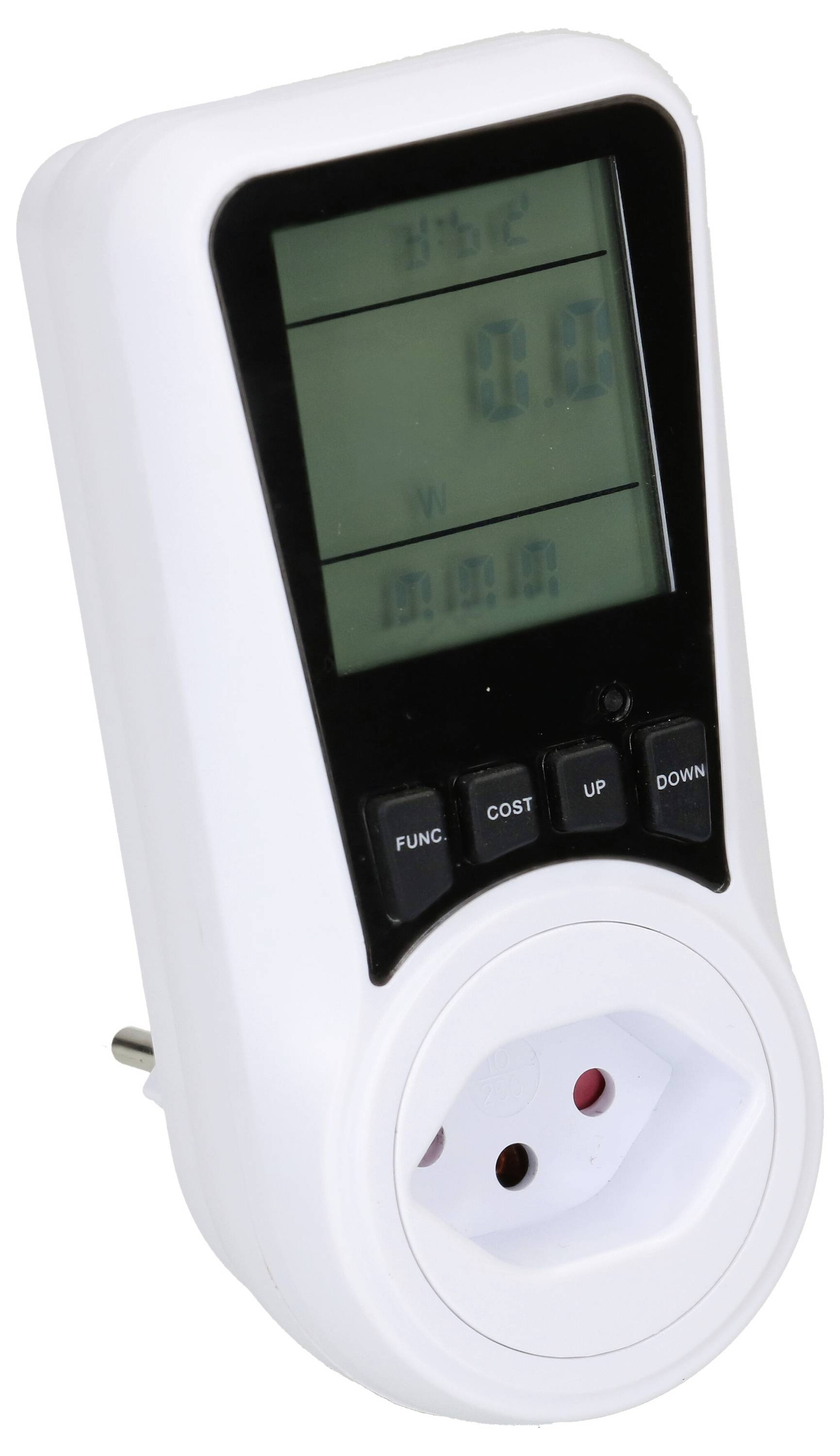

Max Hauri 173108 Energy consumption meter Energy cost calculator
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Meter 220-240V max. 2300W
- Max Hauri
Technical specifications
- Net weight: 0.15 kg
- Protection class (IP) IP20
- Length: 130.0 mm
- Width 62.0 mm
- Height: 77.0 mm
- Function / specification: Digital
- Meter type: Electronic
- Rated current (In) [A]: 10
- Nom. Voltage (Un) N-L [V]: 230 V
- Frequency [Hz]: 50
- Power consumption [W]: 2300
- 1-phase
- Design: Direct measurement
- Suitable for: Cover
- Rate version: Single tariff
- Display type: Digital
- Mounting type: Adapter
- Product type
Energy consumption meter
- Type
173108
- Energy meter features
Energy cost calculator
- Reading type
Energy consumption
Power
Voltage
Amperage
Frequency
Service hours
- Power (max.)
2300 W
- Operating voltage
230 V
- Current range
10 A (max)
- Current (max.)
10 A
IP20
- Weight
0.15 kg
- Active power range
2300 W (max)
- Frequency
50 Hz
- MID-approved
No
- Dim
(L x W x H) 130 x 62 x 77 mm
- Height
77 mm
- Length
130 mm
- Width
62 mm
- Type
Digital, direct measurement, digital display
Documents & Downloads
Datasheet
Datasheet 3396978 Max Hauri 173108 Energy consumption meter Energy cost calculator
User & Safety Instructions
User & Safety Instructions 3396978 Max Hauri 173108 Energy consumption meter Energy cost calculator
Description

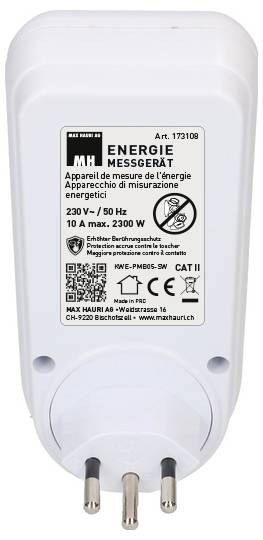

Energy meter / voltage: 220-240V / power: Max 2300W / additional function: Increased contact protection
This energy measuring device is used to measure the energy consumption of the connected consumer and to calculate the electricity costs incurred. The price of electricity can be freely programmed. Easily retrieve important additional data such as power, voltage, power factor, frequency and operational time. An ideal device for making power-saving measures.
• Measures the power consumption of connected consumers
• Power, voltage, current, power factor, frequency and operating time can be retrieved
• Ideal for specific energy saving measures
This text is machine translated.
This energy measuring device is used to measure the energy consumption of the connected consumer and to calculate the electricity costs incurred. The price of electricity can be freely programmed. Easily retrieve important additional data such as power, voltage, power factor, frequency and operational time. An ideal device for making power-saving measures.
• Measures the power consumption of connected consumers
• Power, voltage, current, power factor, frequency and operating time can be retrieved
• Ideal for specific energy saving measures
