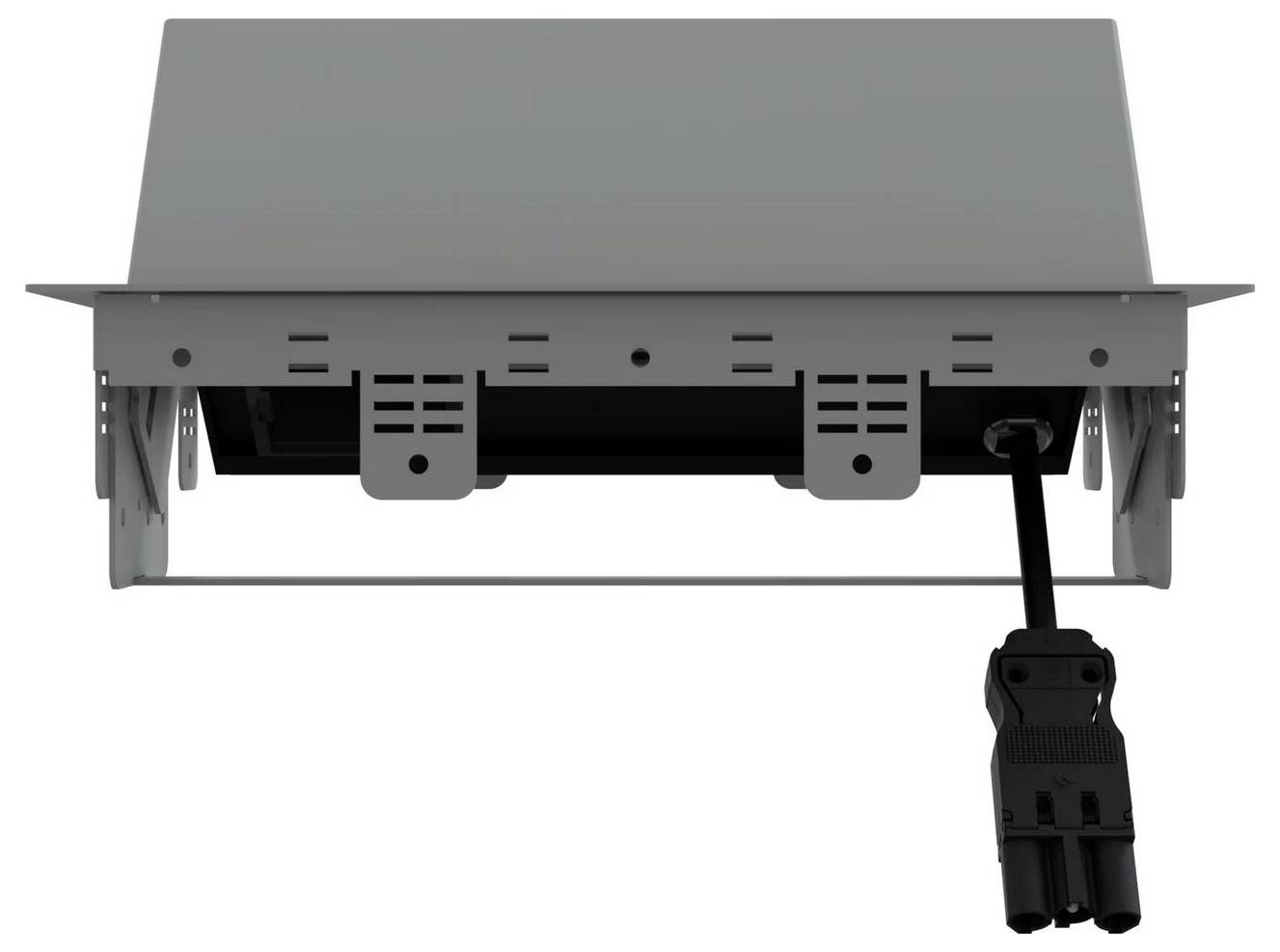

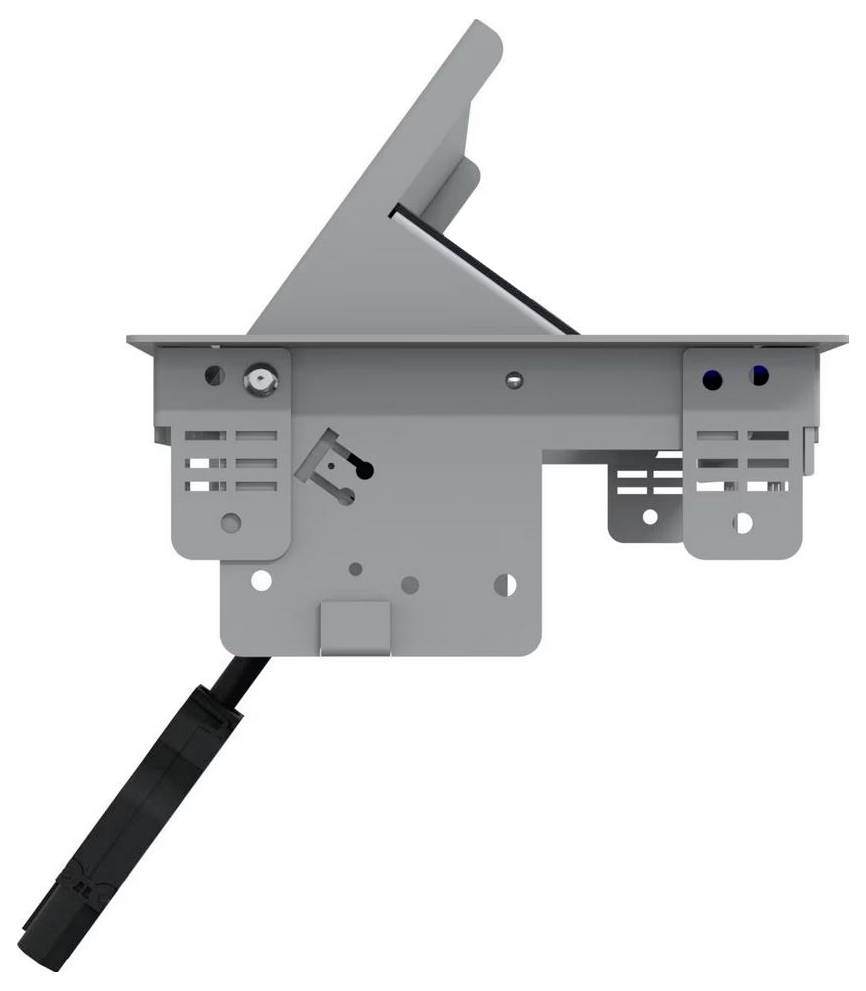

Max Hauri 173990 Built-in power strip Grey, Black, Anthracite CH plug
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Unit of size S 3 way
- Socket type: Type 13 (T13); RJ45 CAT 6a; HDMI
- Number of slots: 2
- Feed: Plug connector can be mixed with AC166 and the market standard
- HAR. Name: H05VV-F.
- Cross section: 1.50 mm²
- Suitable for 20-40 mm panel thickness
- Product type
Built-in power strip
- Light bulb features
Child safety
- Outlets
2
- Cable length
0.3 m
- Mounting type
Recess-mount
- Material
Steel
Aluminium
- Plug type
CH plug
- Factory colour
Grey
Black
Anthracite
- Length
274 mm
- Width
154 mm
- Height
63.5 mm
Documents & Downloads
Datasheet
Datasheet 3397006 Max Hauri 173990 Built-in power strip Grey, Black, Anthracite CH plug
User & Safety Instructions
User & Safety Instructions 3397006 Max Hauri 173990 Built-in power strip Grey, Black, Anthracite CH plug
Description
BOX+CUBOBOX INSTALLATIONframe S 3-fold + outlet unit / color: Frame gray RAL9006, profile black RAL9017, anthracite components RAL7016 / 2x type 13, 1x RJ45 CAT 6a, 1x HDMI 2.0 / steel+aluminum / feed: Plug connector can be mixed with AC166 and the market standard H05VV-F3G1.5 0.3M
The CUBOBOX mounting frames with CUBOBOX connection fields are the ideal solution for discrete power and multimedia connections, because the attached devices can be operated even with closed cover due to the dust protection brush. The installation is suitable for panel thicknesses from 20 to 40 mm, whereby the leg room remains under the table thanks to the minimum installation depth.
• Power and multimedia connections are also covered during use
• Minimum installation depth receives leg clearance
• Quick and easy replacement of all modules
• Different sizes available
This text is machine translated.
The CUBOBOX mounting frames with CUBOBOX connection fields are the ideal solution for discrete power and multimedia connections, because the attached devices can be operated even with closed cover due to the dust protection brush. The installation is suitable for panel thicknesses from 20 to 40 mm, whereby the leg room remains under the table thanks to the minimum installation depth.
• Power and multimedia connections are also covered during use
• Minimum installation depth receives leg clearance
• Quick and easy replacement of all modules
• Different sizes available
This text is machine translated.
Features
- Flap lid
- Over current protection
- Child safety
