Max Hauri 174016 Power strip Aluminium , Anthracite CH plug 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Socket type: Type 13 (T13); USB Type C 60W; RJ45 CAT 6a; HDMI
- Charging technology: Power delivery 3.0
- Number of slots: 2

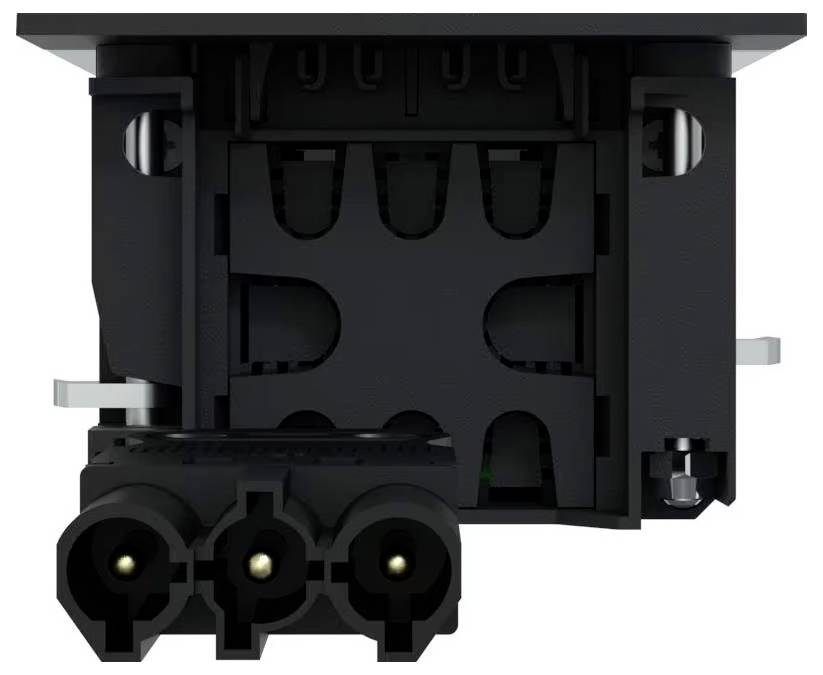

- Feed: Plug connector can be mixed with AC166 and the market standard
- HAR. JZ-500 HMH name
- Cross section: 1.50 mm²
- USB Output Single C port: Max. 20.0 V / 60.0 W.
- Suitable for panel thickness 5-35 mm
- Product type
Power strip
- Light bulb features
Child safety
Power Delivery
- Outlets
2
- Cable length
0.3 m
- Mounting type
Recess-mount
- Material
Aluminium
- Plug type
CH plug
- Factory colour
Aluminium
Anthracite
- Length
301.6 mm
- Width
78.6 mm
- Height
52 mm
Documents & Downloads
Datasheet
Datasheet 3397025 Max Hauri 174016 Power strip Aluminium , Anthracite CH plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3397025 Max Hauri 174016 Power strip Aluminium , Anthracite CH plug 1 pc(s)
Description
INTRO2.0 socket unit / color: Clear anodized profile C27, anthracite components RAL7016 / 2x type 13, 1x Charger USB-C 60W (PD3.0), 1x RJ45 CAT 6a, 1x HDMI 2.0 / Material: Aluminium / power lead: Plug connector mixed. With market standard JZ-500 HMH 3G1.5 0.3M / Attachment integrated in the end caps
The INTRO 2.0 connection panels are a simple installation solution for power, USB charging, multimedia connections in desktop panels or dividers. Due to the design and the modular structure, it can be manufactured in variable lengths. The housing is installed using elegantly hidden screws in surfaces with a plate thickness of 5 to a maximum of 35 mm. The INTRO 2.0 connection panels are optimally suited for use in office furniture, meeting tables, schools or hotels.
• Mounting in table top with concealed screws
• Quick and easy replacement of de-energized modules
• Various configurations possible due to modular design
This text is machine translated.
The INTRO 2.0 connection panels are a simple installation solution for power, USB charging, multimedia connections in desktop panels or dividers. Due to the design and the modular structure, it can be manufactured in variable lengths. The housing is installed using elegantly hidden screws in surfaces with a plate thickness of 5 to a maximum of 35 mm. The INTRO 2.0 connection panels are optimally suited for use in office furniture, meeting tables, schools or hotels.
• Mounting in table top with concealed screws
• Quick and easy replacement of de-energized modules
• Various configurations possible due to modular design
This text is machine translated.
Features
- Over current protection
- halogen-free
- Child safety
